Description:

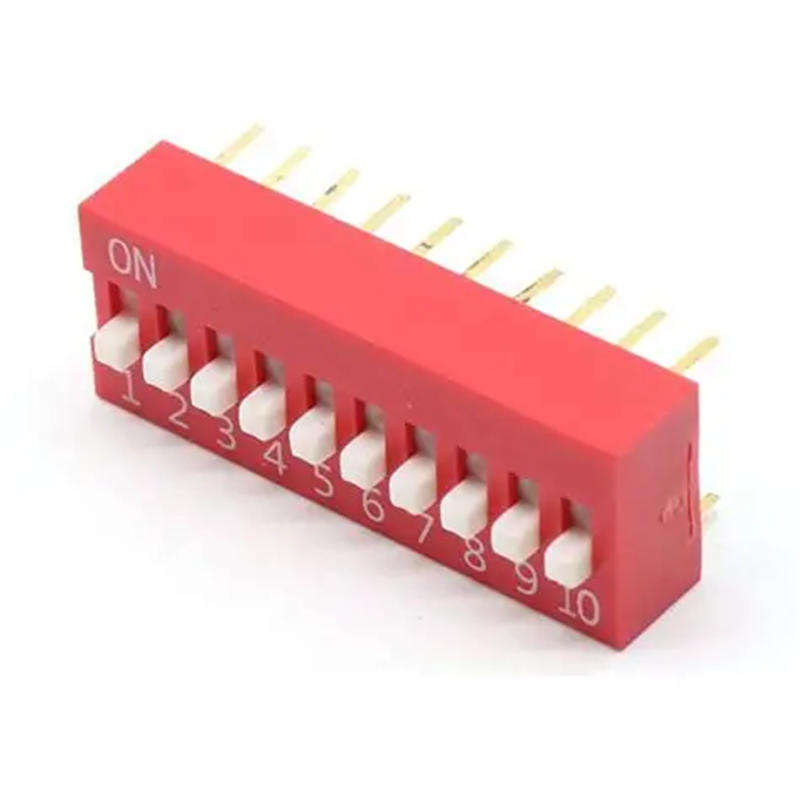

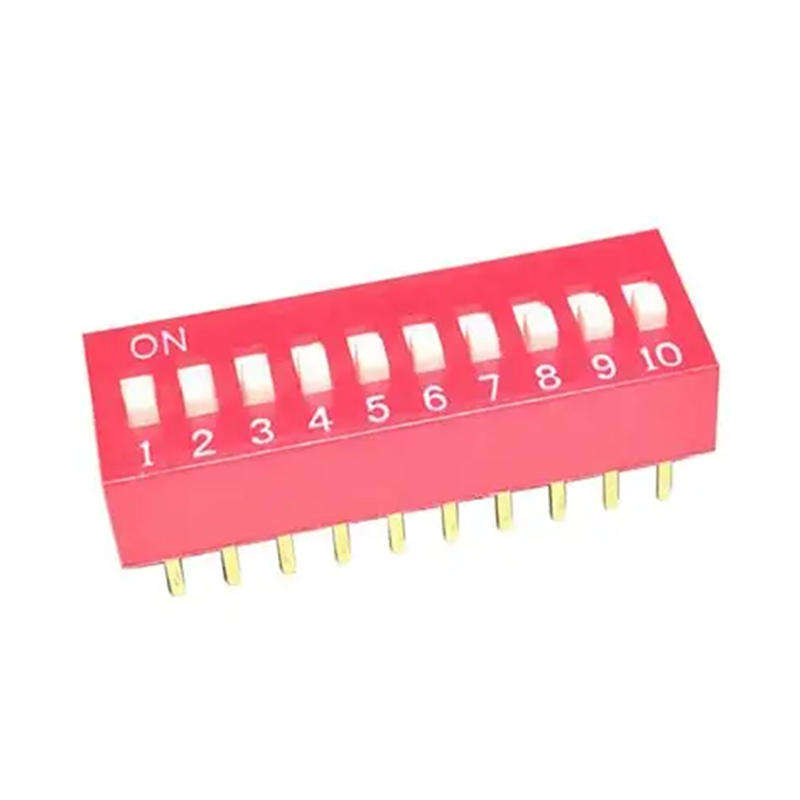

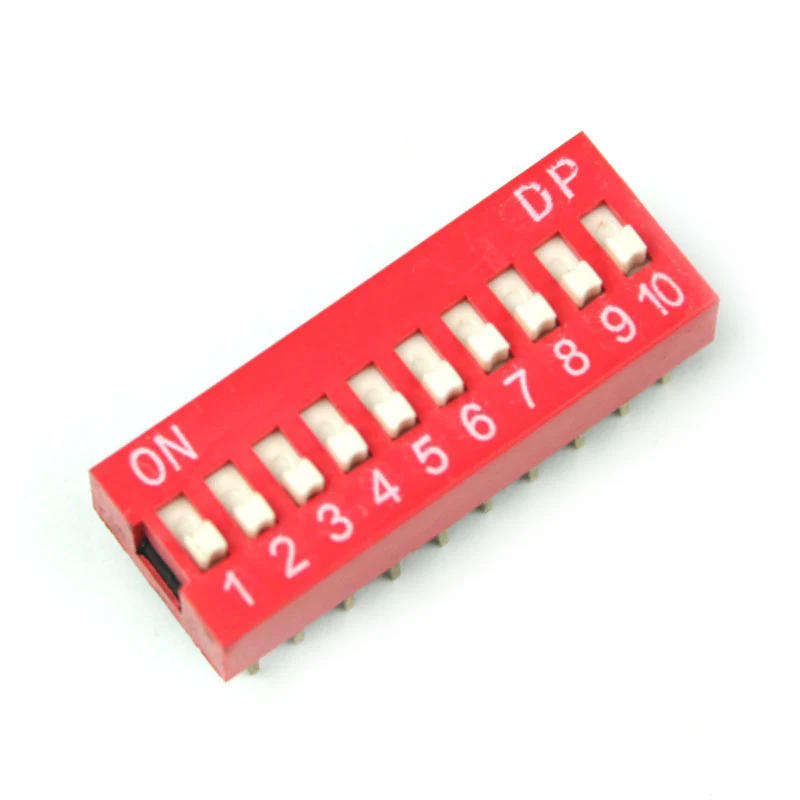

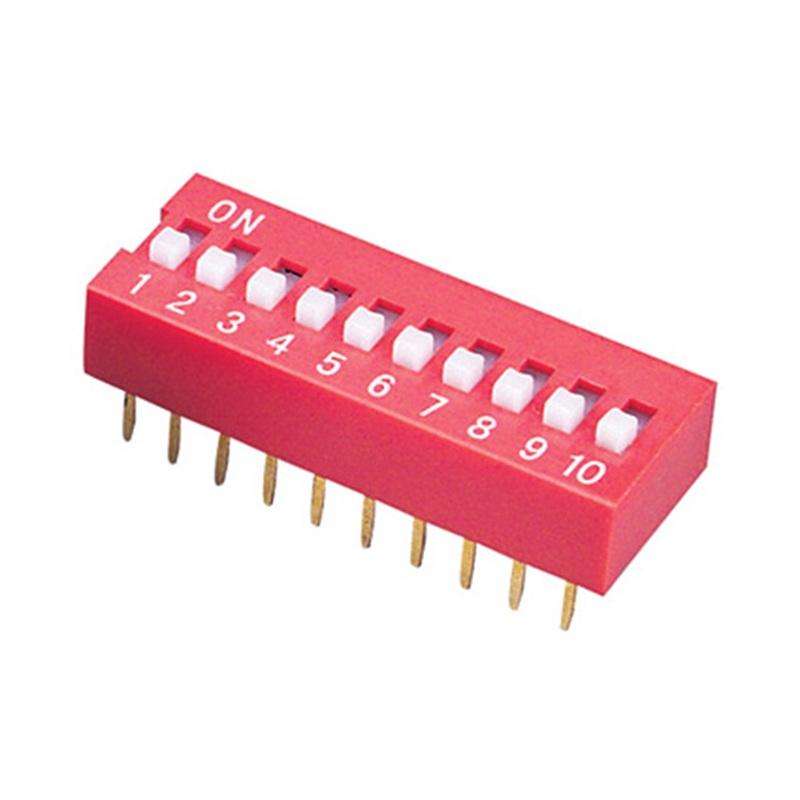

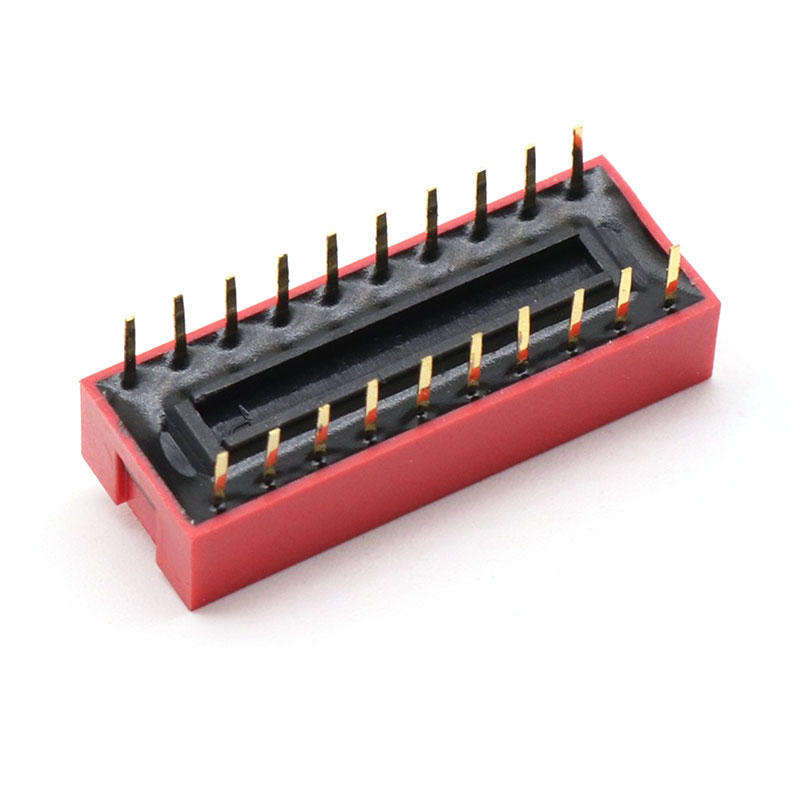

• A 10-way DIP switch is an electromechanical switch that is housed in a dual in-line form.
• With this switch, the user can manually set various binary or hexadecimal configurations by turning individual switches on or off.
• Manual Configuration: Users can manually set configurations for various settings or modes.
• Compact Design: Its dual in-line package makes it simple to mount on printed circuit boards (PCBs).
• Durability: The sliding mechanism ensures consistent and long-lasting performance.
• Versatility: It can be used for a range of tasks, including setting device modes and configuring hardware addresses.

Specifications:

• Number of Positions: 10.
• Switch Type: Slide.
• Actuator: Typically raised or flush to the switch body.
• Mounting: Through-hole or surface mount.
• Pitch: Standard 2.54mm (0.1 inches).
• Current Rating: Around 25mA to 100mA, depending on the specific model.
• Voltage Rating: Typically up to 24V DC.
• Operating Temperature: -20°C to +70°C.
• Contact Material: Often copper alloy or gold-plated brass.
