100 Meter 4k Ultra HD HDMI Extender SET over CAT6 with HDMI Loop Out and Bidirectional IR Extender

100 Meter 4k Ultra HD HDMI Extender SET over CAT6 with HDMI Loop Out and Bi-Directional IR Extender | up to 100 Meter

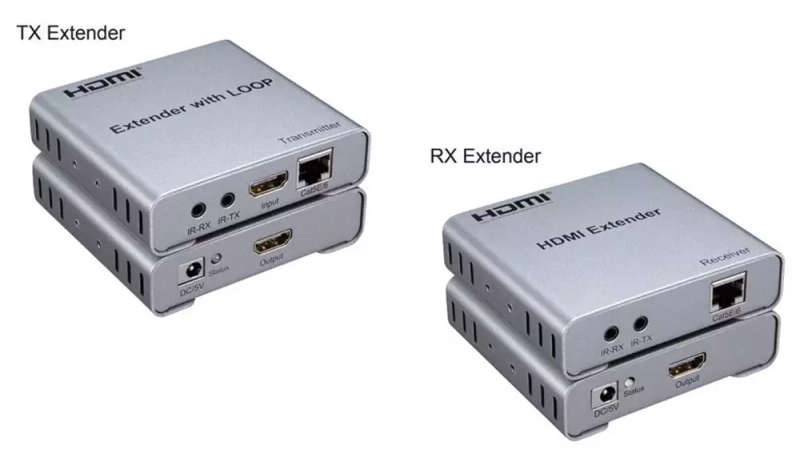

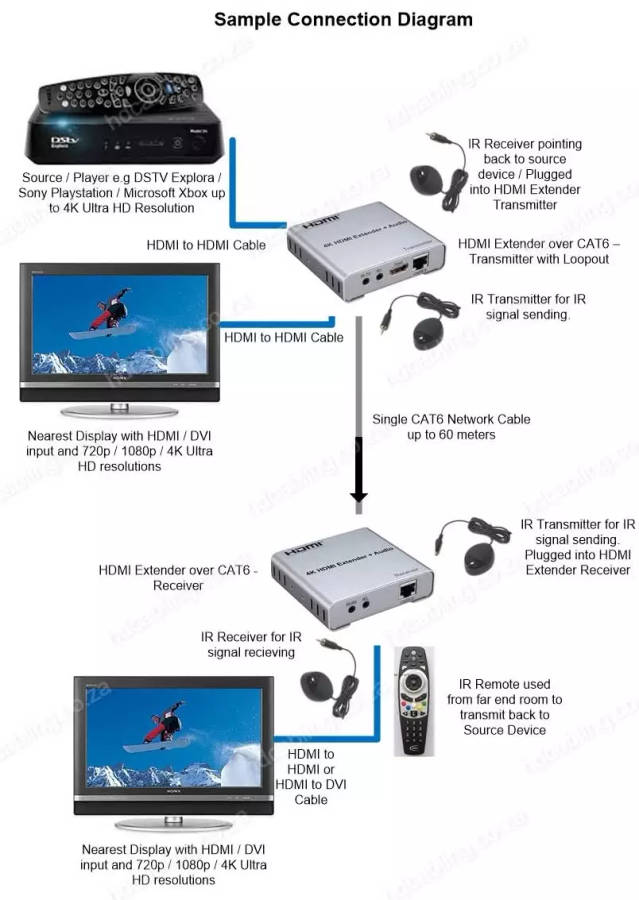

This HDMI extender uses one single CAT6 cable instead of HDMI cable, you can extend a 4K/1080p Video signal up to 100 Meters. The purpose of the extender is to achieve long-distance signal transmission with low- cost wires. It also supports 3.5mm Audio Transmission and Infrared Remote Control back to Source / Player. The Transmitter unit has a Loop-Out HDMI Port and functions as a HDMI Splitter.

Features

• Compliant with HDMI 2.0, HDCP 2.2 and DVI 1.0;
• Signal transmission : Cat6 cable up to 100 meters instead of HDMI cables are connected between TX and RX

Supported Formats

• Support video format up to 4k2k@30Hz, FullHD 1080p@60Hz and other resolutions lower at 60hz, with 24bit RGB/YcbCR
• 4:4:4/YCBCR4:4:4,and up to 4k2k@30Hz with 12bit YCBCR 4:4:4;
• Support 3D frame sequential video format up to 1080p@60;
• Audio format support via HDMI :  DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
• Bidirectional Infrared Supported for a large amount of frequencies

Specifications

• Length of CAT-6 cable between Transmitter and Receiver  : Up to 100 meters for 4k 30hz Transmission distances on Full Copper CAT6 STP.
• HDMI Input/Output : 4Kx2K@30Hz / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
• Support audio formats : DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3/DSD
• Max bandwidth-: 600MHz
• Max baud rate : 18Gbps
• Input Video signal : 0.5~1.5Volts p-p
• Output DDC signal : -5Volts p-p (TT1L)
• Input/Output HDMI cable distance : 15meter AWG26 HDMI Copper Cable or Any Length HDMI Fiber Optic Cable
• Max working current : 800mA
• Power adapter format : Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
• Operating Temperature range : (-15 to +55)
• Operating Humidity range : 5 to 90%RH (No Condensation)

Due to high bandwidth when using 4k UltraHD Full Copper CAT6 Network Cabling is recommended. For 720p or FullHD CCA Cable can be used but Full Copper advised.

/100-meter-cat6-roll-pure-copper-stp-ethernet-network-cable/

/price-per-meter-cat6-stp-pure-copper-ethernet-cable-solid-core-with-braiding-up-to-1gb-s-gray/

How to Install HDMI Extender over CAT6 Video and Instructions
