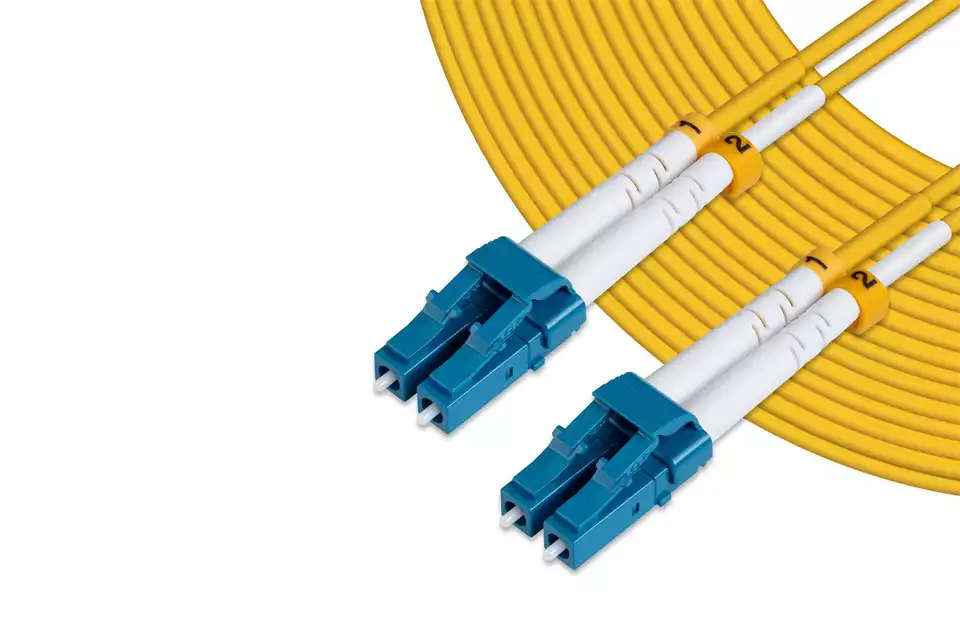

100 Meter Duplex Single Mode UPC LC-LC Fiber Optic Cable | Fiber Patch Cord | Outdoor Drop Cable

Singlemode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.

Specifications:

  • Indoor or Outdoor Installation
  • Diameter  : 3mm
  • Duplex (Dual Fiber Cables and DUAL LC Connectors on each side of cable)
  • LC/UPC LC/UPC
  • G.657A2, 2.0x3.0mmmm
  • LSZH (Low Smoke, Zero Halogen)
  • Cable is marked with "A" & "B"

Tensile Strength

Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables. These cables strengthened by the 2*0.45mm steel wires provide more than enough pulling strength to easily install these cables in difficult environments without breaking the cable.

G.657A2 Bend Ratio vs Other Specifications

Fibre Type  Bending RadiiAttenuation Increase (db)
G652D100 turns on 25mm mandrel at 1310/1550nm 0.03
G652D100 turns on 30mm mandrel at 1625nm 0.1
G657A210 turns on 15mm mandrel at 1550nm 0.05
G657A210 turns on 15mm mandrel at 1625nm 0.1
G657A21 turn on 10mm mandrel at 1550nm 0.1
G657A21 turn on 10mm mandrel at 1625nm 0.2
G657A21 turn on 7.5mm mandrel at 1550nm 0.5
G657A21 turn on 7.5mm mandrel at 1625nm 1.0

These Fiber Cables Are Commonly used with the Fiber SFP's below

Add link to Bidi SFP and Other SFP's For Simplex Cable

LC Fiber Connectors Explained in Detail

?v=SJwbqnjo4BE

Single Mode Fiber Cable Usage and Instructional Video

?v=7D5DXND3-TI
