100 Meter VGA Extender over Network Cable CAT5e / CAT6 and Analogue Audio Support

100 Meter VGA Extender over Network Cable CAT5e / CAT6  and Analogue Audio Support

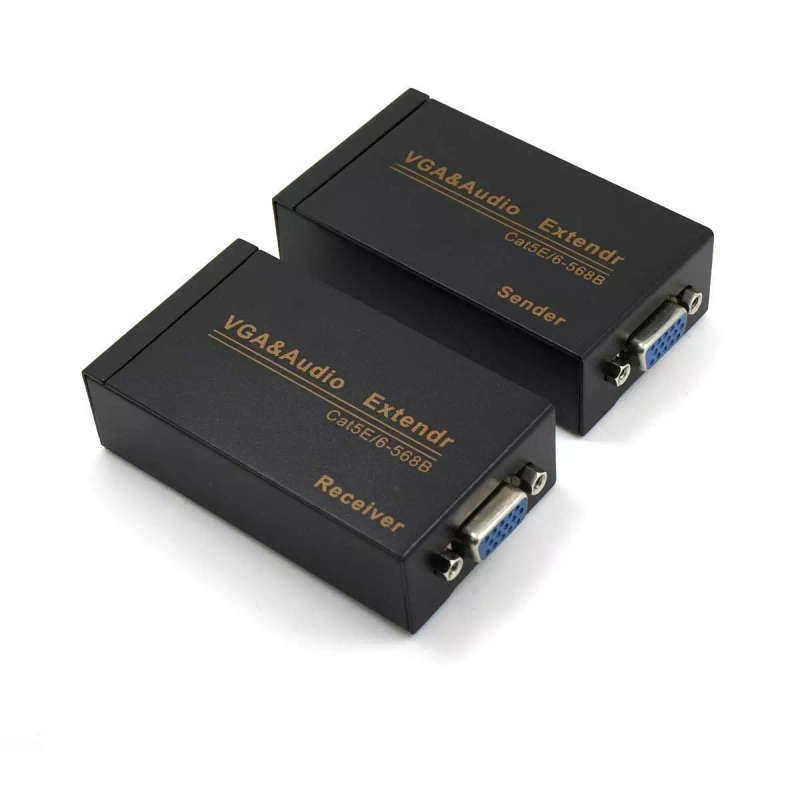

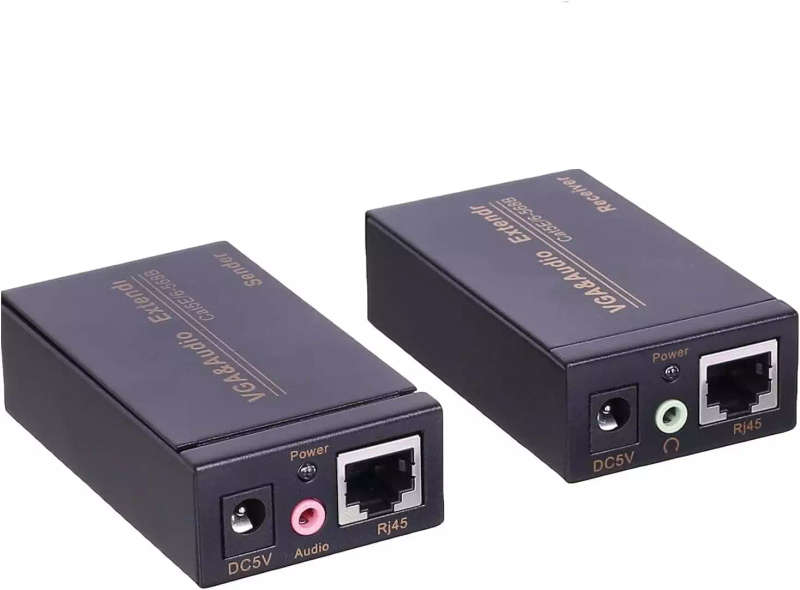

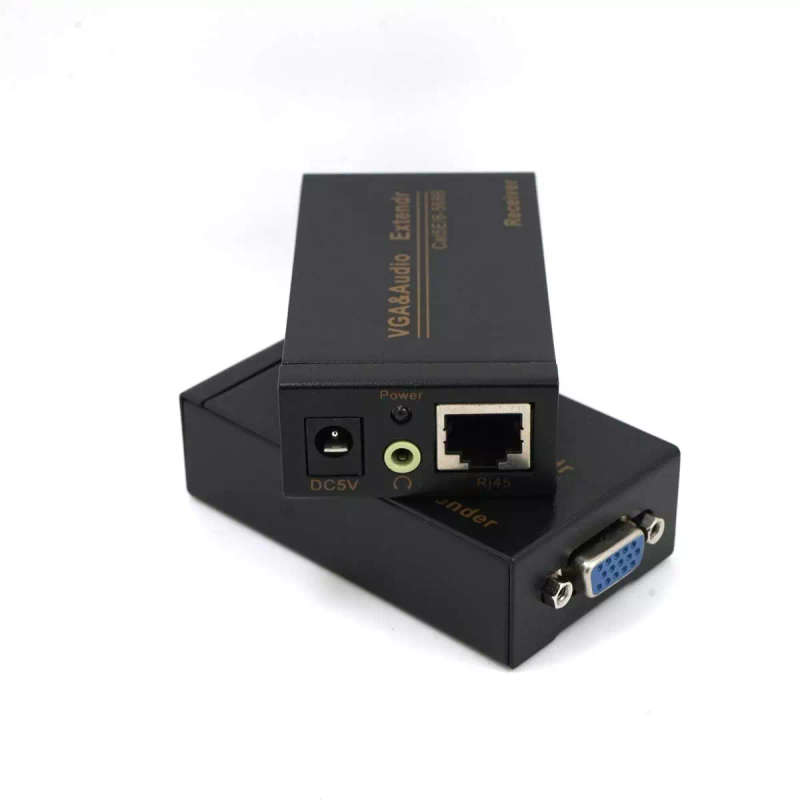

Each video audio extender consists of a local unit (Transmitter) that connects to a PC / Laptop / DVR or any VGA Source and a remote unit (Receiver) that connects to a Display / Projector.

Features:

• Ideal solution for digital signage applications.
• Supports  remote VGA monitors.
• Supports resolutions to 1920x1440.
• Sharpest and clearest VGA quality over CAT5/CAT6 UTP-STP cable of any manufacturer. Please note copper CAT5e/CAT6 Recommended for optimal lengths of 100m+
• Built-in lightning and ESD surge protection.

Specifications:

• Local Unit
  • Host Connection
  • Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. Not OS dependent and can work on DVR with unknown OS if VGA port available.
  • Male/Female 15-pin HD connector for computer connection.
  • Optional stereo audio support - 3.5mm stereo plug.
  • Local Access
  • Crisp and clear 1920x1440 video resolution.
  • Optional stereo audio support - 3.5mm stereo jack.
• Remote Unit
  • Supports resolutions up to 1920x1440
  • Female 15-pin HD connector.
  • Optional 3.5mm stereo audio connection.
• Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
• Dimensions
  • WxDxH (mm): 64*45*23mm(Sender)
  • 64*45*23mm（Receiver）
  • Weight(g):0.7KG
• Power
  • 220 Volt at 50 Hz via AC adapter (Included).
  • Power Consumption: 6W (each - local and remote unit).
  • Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.

VGA KVM Extender over Network Cable (CAT5e / CAT6) Example Installation and Usage Video

?v=OHYwkog7kUo

CAT6/CAT6A Network Cabling is recommended. For lower resolutions and shorter lengths CCA Cable can be used but HCCA or Full Copper advised for longest possible running lenths.
