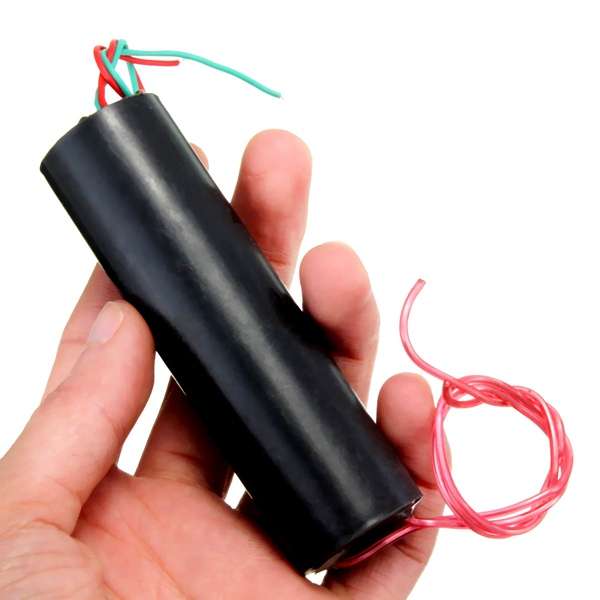

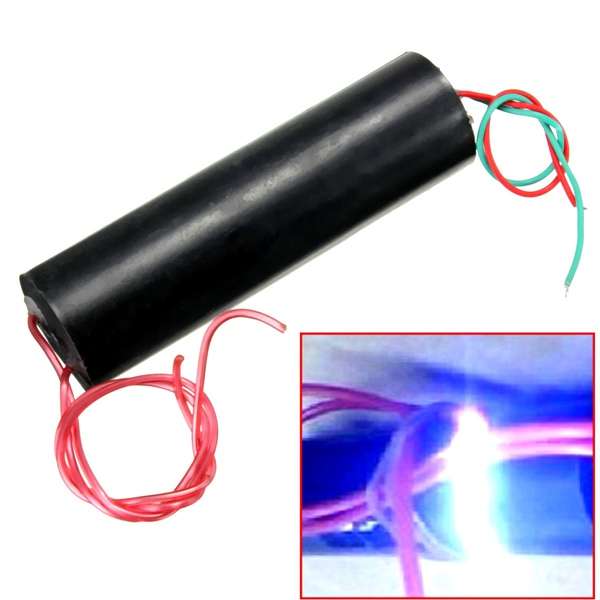

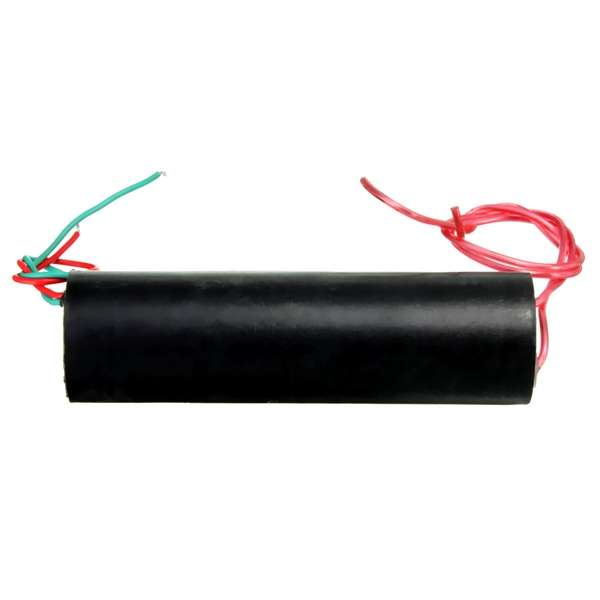

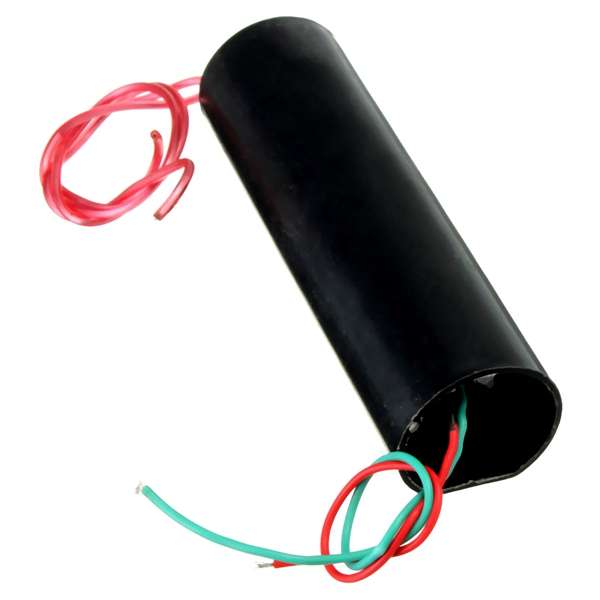

1000 KV Pulse Ignition Coil Inverter Arc Generator

Specifications:

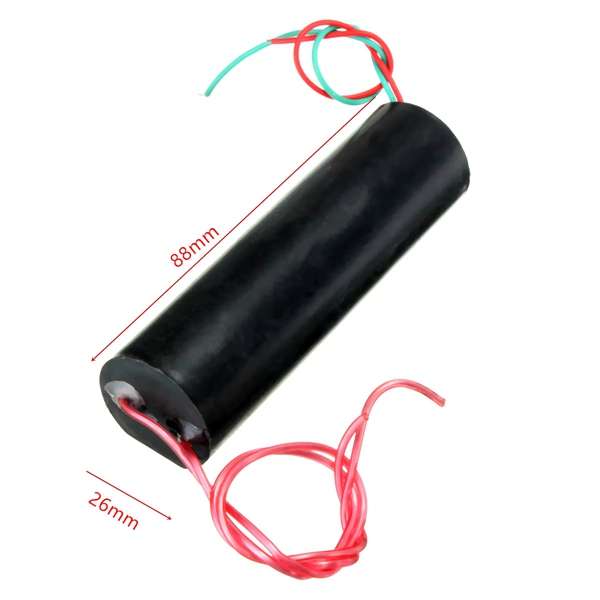

Module type: MC-901 Input voltage: 3.7V-7.4V (18650 rechargeable lithium battery) Input current: 0.5A-1A Input wire length: 9 cm High voltage type: pulse DC type Output voltage: 800KV-1000KV (please pay attention to safety when using) Output current: 0.5A-1A Output length: approximately 16 cm High voltage bipolar discharge distance: 1.5 cm -2 cm Size: 88 x 26mm(LxD) Module use note:
1, high voltage module should avoid the use of high voltage no-load, power must beadjusted before the high voltage line end of the right distance, high voltage wire drawingdistance and the use of battery voltage and capacity is proportional to. 2, the test arc distance from short to long experiment, when the power is prohibitedbeyond the longest arc distance, due to the high pressure energy can not be released,very easy to damage the module. 3,Whenpowertothemodule,theinternalwillbeheated,soitcannotworkforalongtime. Package include:
1 x High voltage inverter
, , , ,
