Description:

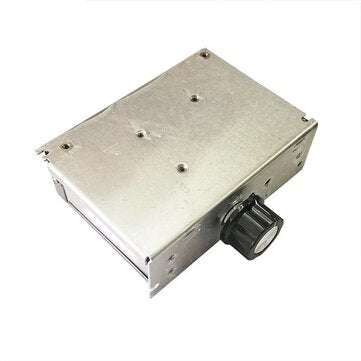

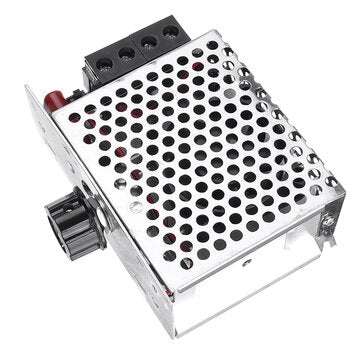

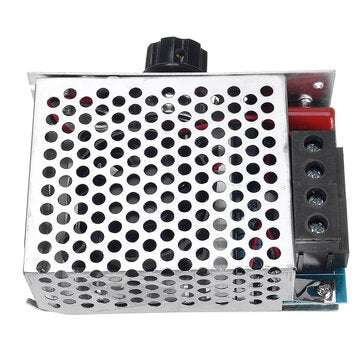

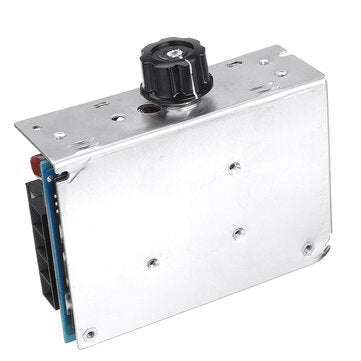

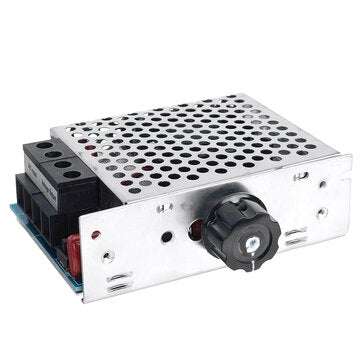

10000W thyristor voltage regulator, equipped with smart fan, standard aluminum housing, safe and durable super high-power electronic voltage regulator, suitable for lighting engineering color lamp control, electric heating wire, boiler heating control, power tool motor control, etc. The circuit design of this product Extremely advanced, precise trigger control, good materials, it is a voltage regulator you deserve to have.

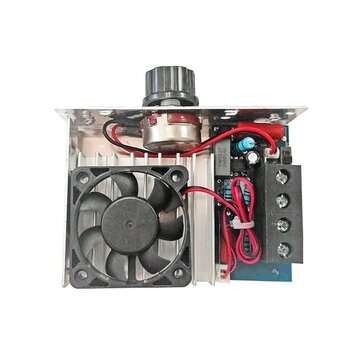

Features: 1. The trigger circuit is unique, the control voltage is accurate and there is no lag. When theresistantload is connected to 0, it will be adjusted from 10V and adjusted to the maximum power supply voltage close to the input (this function is exclusively available, and other products on the market have a normal opening voltage It is 40-60V, you can compare the actual products one-to-one, if you have special requirements, please adjust from 0-1-2-3, please explain that our circuit can be modified to achieve, the above are all based onresistantload adjustment) 2. SCR adds RC absorption protection circuit 3. Upgraded fan with switch intelligent control, good heat dissipation effect and long service life. 4. The standard high-end exquisite aluminum shell is safer and more practical 5. Upgrade the brand all-copper 75A super current terminal.
The above adjusted voltage readings are all forresistantloads. Different voltages in inductive load products have different deviations (heating filament lamps areresistantloads, and fan electric drill transformer are inductive loads). Please connect a small load such as a 220V40W incandescent bulb to the test voltage of the meter, so that the test voltage is accurate. Why connect a small load Because all thyristors have a little leakage current, when no load is connected, the voltage measured above is a virtual voltage. Only a small load is connected to offset the leakage current, so that the voltage we measured is the thyristor Actually regulated voltage)
Parameter: Model: ZS-PA10000A Operating voltage: AC 110V-220V Maximum power: 10000W (resistant load connected) Voltage adjustment: adjustable between AC 0V and close to the input voltage Size: 111mm*77mm*37mm (without handle) Weight: 0.28KG

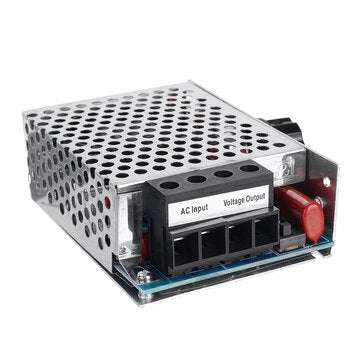

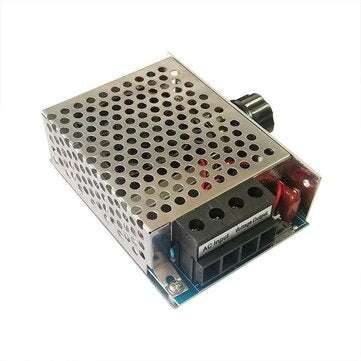

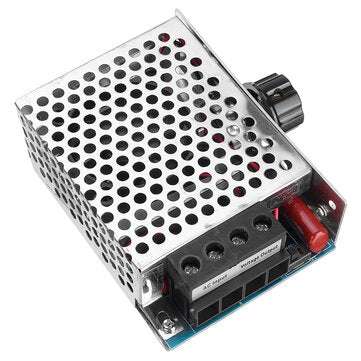

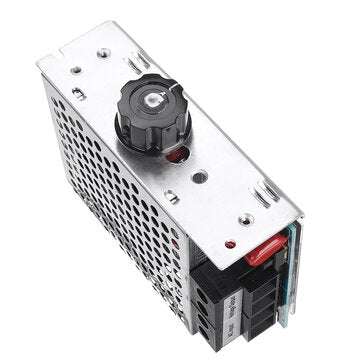

Instructions: Connect the thyristor voltage regulator to the front of the electrical circuit, and connect the input and output wires separately (no need to divide the zero line) and rotate the potentiometer lever to adjust brightness, speed, voltage, and temperature. Very convenient to use.
Applications:
Using a new type of bidirectional super-power thyristor, the thyristor has a nominal value of 100A, and theresistantload can be adjusted arbitrarily between 0 and the input voltage for use by electrical appliances. Such as: electric stove, water heater heat adjustment, lamp light adjustment, large motor motor speed adjustment, etc. So as to achieve the effects of dimming, temperature and pressure. It can be used for large electrical appliances with electric power less than 10,000 watts (pureresistantload). Due to the large power, general household electrical appliances or small factories are sufficient. (Inductive or capacitive loads have a large starting current, which is 2-4 times that of normal work. The power should be reduced during use, and it is best to leave a margin below half)
Package included: 1 x Voltage Regulator
