Support 1000BASE-T Operation in Host Systems
Support TX Disable function
For 100m Reach Over UTP Cat 5e or above Cable
Hot-Pluggable SFP Footprint Features
Commercial Product Operating Temperature Range: 0-70 C
Compliant with IEEE Std 802.3-2002
Fully Metallic Enclosure for Low EMI
Low Power Dissipation (0.5 W Typical, 0.8 W Max)
Specifications:
Hardware Features
- Hot Swappable: Yes
Media Converter & Module
- Dimensions (WxDxH): 2.7x0.5x0.5 in (67.4x13.75x13.8 mm)
Transceiver
- Standards and Protocols: IEEE 802.3-2002
- Power Supply: 3.3V
- Max. Cable Length: 100m (Cat 5e or above)
- Data Rate: 1.25 Gbps
- Port Type: 1× 1000 Mbps RJ45 Port
- Safety & Emission: FCC, CE
Environment
- Operating Temperature: 0-70 (32-158 )
- Storage Temperature: -40-85 (-40-185 )
What's in the box

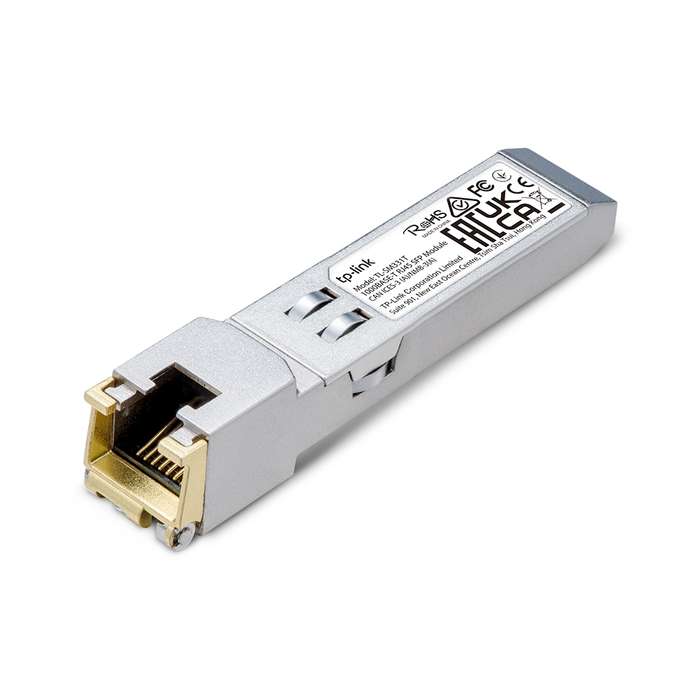

1000BASE-T RJ45 SFP Module TL-SM331T
Installation Guide
