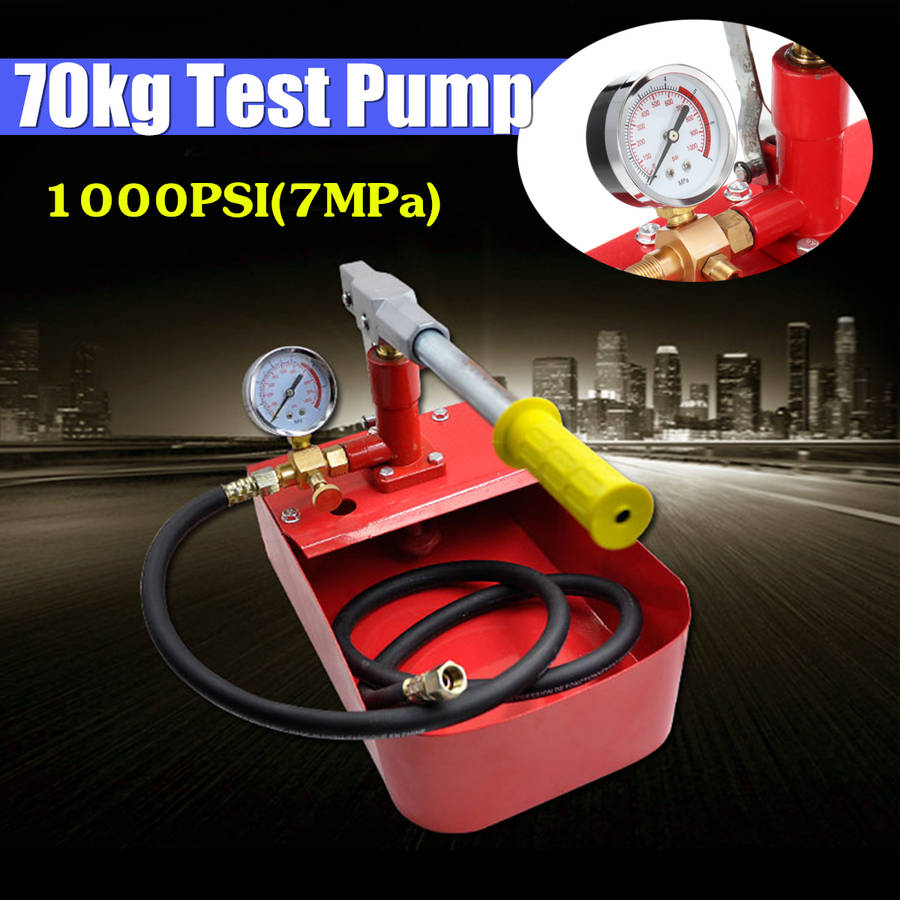

Name: 1000PSI Manual Hand Operated Pump Hydraulic Pipeline Leakage Pressure Test Tool
SKU: 1340277[LCEXP]
Price: 1832.00 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

1000PSI Manual Hand Operated Pump Hydraulic Pipeline Leakage Pressure Test Tool

5 were available / new

Indicative market price: R2,445.01

R1,832.00

25% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The USB Shop8779

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

1340277[LCEXP]

Bob Shop ID

504813585

Specification:

Material: Iron

Color: Red+Yellow+Black

Max. Pressure: 1000PSI(7MPa)

Features:

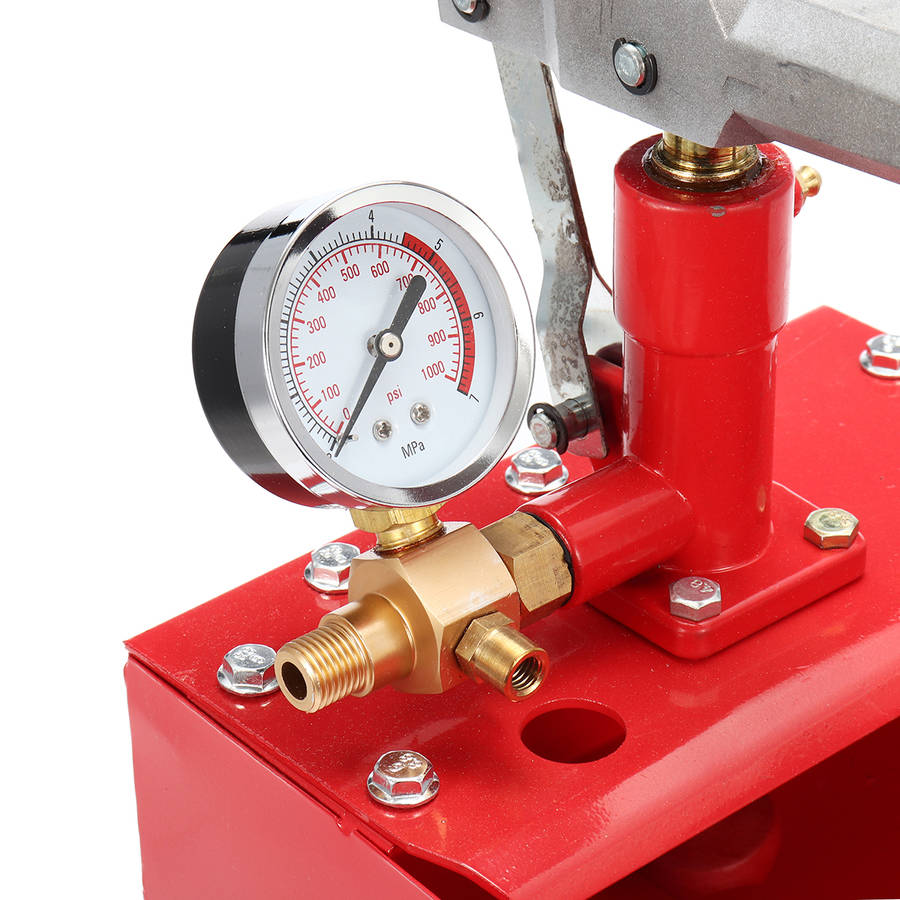

Clear pressure display

Easy to install, do not worry

It is a manual pressure test pump

Suitable for all kinds of pressure vessels, pipe, valves, pressure test, etc.

Widely used in chemical industry, building, water, oil, coal, metallurgy, shipbuilding and other industries.

Usage:

1. Install the machine and fix the pump body to the water tank with four screws.

2. Install the water hose and connect it to the pump body (note: sealed connection, plus gasket, can also use Teflon tape, otherwise it is easy to leak)

3. Connect the other end of the outlet hose to the pipe to be tested (note: be sure to wrap with Teflon tape)

4. Fill the tested pipe with water, discharge the air, and close the pressure relief valve.

5. Fill the water tank with clean water, then shake the handle up and down to start pressure test

6. When the degree of pressure gauge rises to the required pressure, the pressure can be stopped (normal tap water pressure is 0.3Mpa, high-rise residential building with 0.4Mpa water pressure, water pipe pressure test is generally pressurized to 0.8-1Mpa, 0.1Mpa is equivalent to 1kg pressure)

7. After stopping the back pressure, if the pressure indicated by the pressure mark does not drop, it can be proved that the pressure resistance of the pipe is good. On the contrary, it proves that the sealed pipe is not good in sealing performance, and there is leakage causing pressure drop.

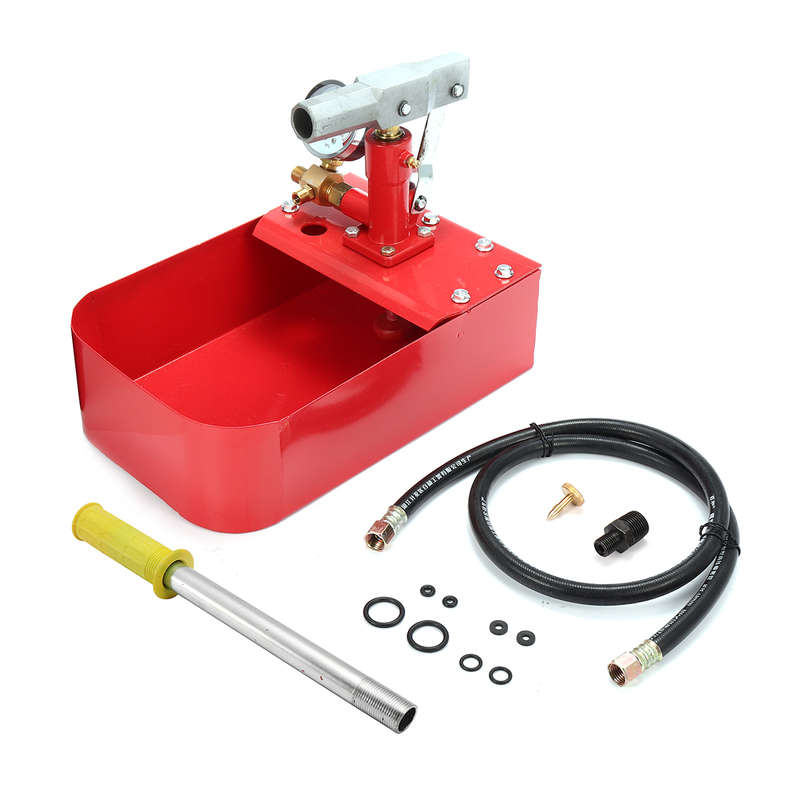

Package included:
1 Set Test Pump

More details:
