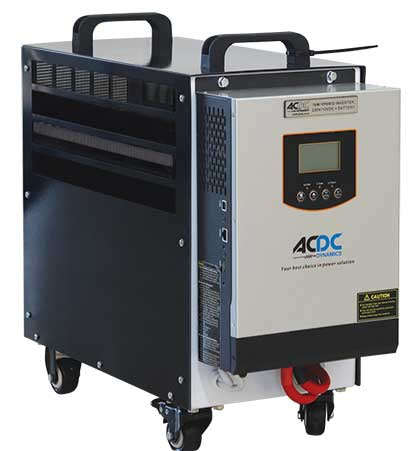

1000W 230VAC/12VDC 1 PH HYBRID TROLLEY WITH 100AH LITHIUM

1000W 230VAC/12VDC 1 PH HYBRID TROLLEY WITH 100AH LITHIUM

INVERTER SPECIFICATIONS

Inverter Mode Specifications

INVERTER MODEL 1KW

Rated Output Power 1000W

Output Voltage Waveform Pure Sine Wave

Output Voltage Regulation 230Vac

Output Frequency 60Hz or 50Hz

Peak Efficiency 90%

Overload Protection 5s@2150% load; 105@110%~150% load

Nominal DC Input Voltage 12Vde 24vde  Cold Start Voltage 11.5Vde 23.0Vdc

Low DC Warning Voltage  @ load < 20% 11.0Vde 22.0Vde  @ 20% < load < 50% 10.7Vde 21.4vdc  @ load 2 50% 10.1Vde 20.2Vdc

Low DC Warning Return Voltage  @load < 20% 14.5Vde 23.0Vdc  @ 20% < load < 50% 11.2Vde 22.4vde  @ load 2 50% 10.6Vdc 21.2Vde

Low DC Cut-off Voltage  @ load < 20% 10.5Vde 21.0Vde  @ 20% < load < 50% 10.2Vdc 20.4Vde  @ load 2 50% 9.6Vde 19.2Vde

High DC Recovery Voltage 14.5Vdc 29Vdc  High DC Cut-off Voltage 15Vdc 30Vdc

BATTERY SPECIFICATIONS

SPF12-100

Talegent TD-LFP series use quality trustable LiFePO4 cells,
with build-in BMS system. IP65 protection, support

series and parallel use, is an ideal choice for outdoor, small
energy storage, marine and other fields.

. Safest Iithium battery technology

. Lithium iron Phosphate Battery(LiFePOs)

. Eco-friendly

. Special protection plate, supporting parallel
. Multiple safety protection

. Intelligent balancing function

. 20 Years Designed service life

ABS
