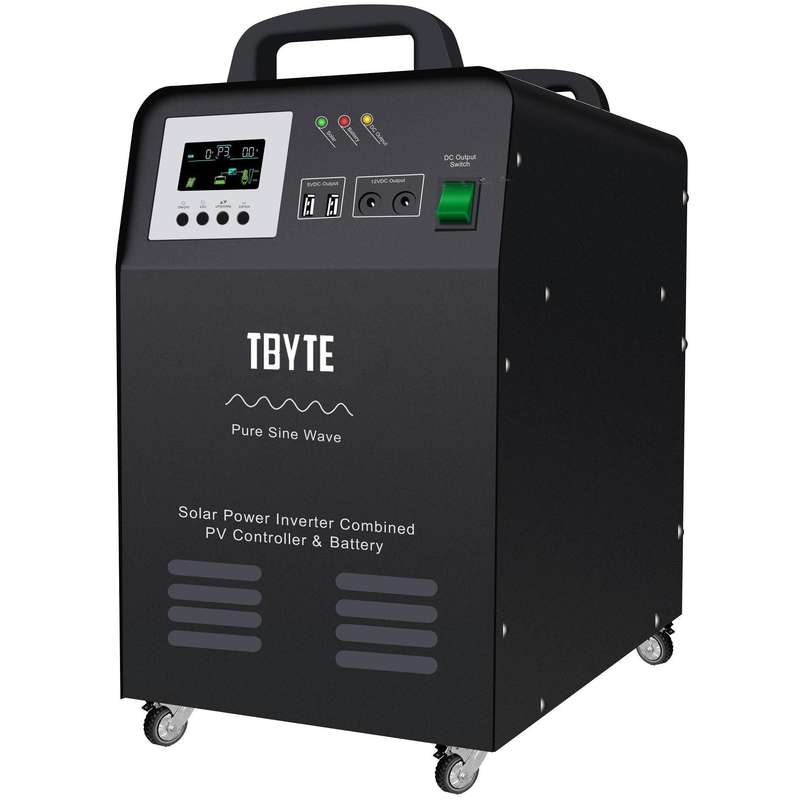

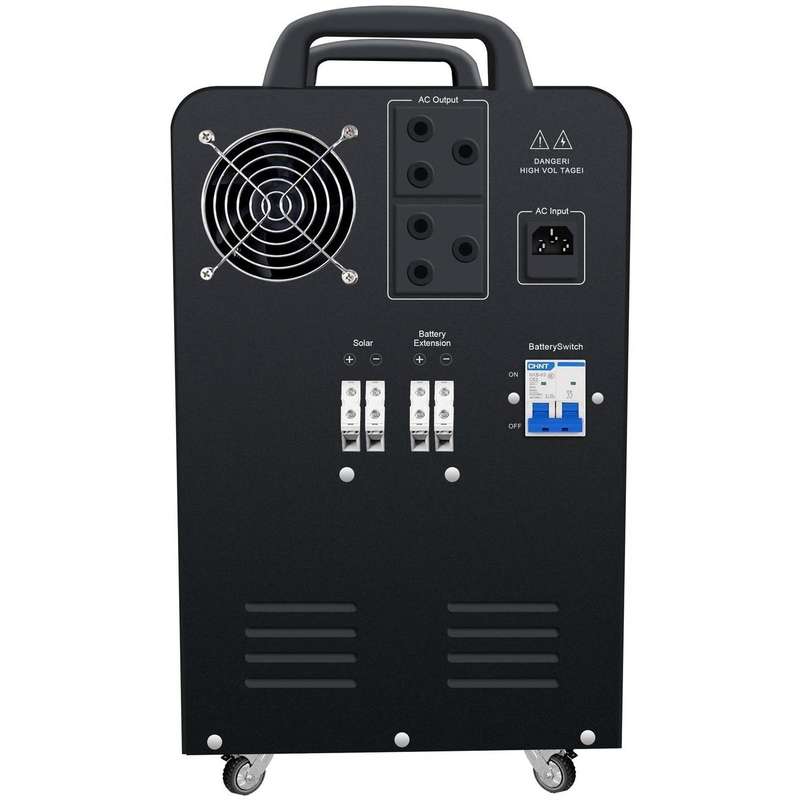

1000W INVERTER WITH 12V100AH BAT- SP1000W
TBYTE
Battery Type_ Lead Acid Battery
Integrated Photovoltaic Power Point Energy Storage System
Intelligent Charge and Discharge Management System Function
Effectively Protect the Battery Charge and Discharge
Colorful and Bright Display, Visually Display the Working Status of the Machine
Output Overload, Overvoltage, Over Temperature, Short Circuit
Intelligent Protection
Output Pure Sine Wave, Strong Load Capacity
Built-In Solar Charge Controller, High Charging Efficiency
Adjustable Switching Mode, DC, AC, Solar Priority Mode
Solar Power Inverter Combined PV Controller & Battery
Model: SP0312-55P SP0512-55P SP1012-100P SP1524-100M SP2024-200M
Inverter
Battery Voltage_ 12V 24V
In-Built Battery Specification_ 55AH 55AH 100AH/12V 100AH/12V*2 200AH/12V*2
Rated Power_ 300W 500W 1000W 1500W 2000W
Output Voltage_ 110VAC/220VAC
Output Frequency_ 50/60Hz
Output Waveform_ Pure Sine Wave
Charge By A Means Supply
Rated Voltage_ 110VAC/220VAC?x means an optional function
Charge Current_ 6A 8A 12A 15A 20A
Solar Input
Maximum Photovoltaic Voltage (VDC): =25V =145V
Charge Voltage (VDC: 13.7V 27.4V
Rated Charge Current(A): (PWM)5-10A (MPPT)30A (MPPT)60A
Maximum Power(Wp): 360Wp 800Wp 1600Wp
Voltage Of Overcharge Voltage (VDC): =25V =145V
Voltage Of Overcharge Recovery (VDC): 14.0V 28.0V
Voltage Of Floating Charge (VDC): 13.7V 27.4V
DC Output
Voltage Of High-Voltage Protection (VDC): 16V 32V
Voltage Of High-Voltage Recovery (VDC): 15.2V 30.4V
Voltage Of Low-Voltage Recovery (VDC): 13V 26V
Voltage Of Low-Voltage Protection (VDC): 11V 22V
5VDC USB Output Port5VDC USB_ 2units/MAX 2A
12VDC Output Port12VDC_ 2 DC Ports (MAX 2A)
Starting Temperature Of The Exhaust Fan_ 45
Ambient Temperature For Operation_ 0-4
Ambient Temperature For Storage_ -25-55
Operation/Storage Conditions/: 0-90% (no condensation)
External Dimensions_ D x W x H(mm) 423 x 260 x 453 x 430x380 x 534 x 555 x 515 x 540
Packing Dimensions_ D x W x H(mm) 520 x 370 x 520 x 545 x 480 x 620 x 640 x 600 x 695
