Package weight: 9.00 kg1000W 12/24V Horizontal-Axis 5-Blades 3-Phase AC Permanent-Magnet Synchronous Wind Turbine Generator
Features:
￢ﾖﾲ For home use, For monitoring use, For boat / marine use, For wind solar streetlight use.
￢ﾖﾲ Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage.
￢ﾖﾲ Low starting wind speed, high wind energy utilization.
￢ﾖﾲSmall size, good looks, low operating vibration.

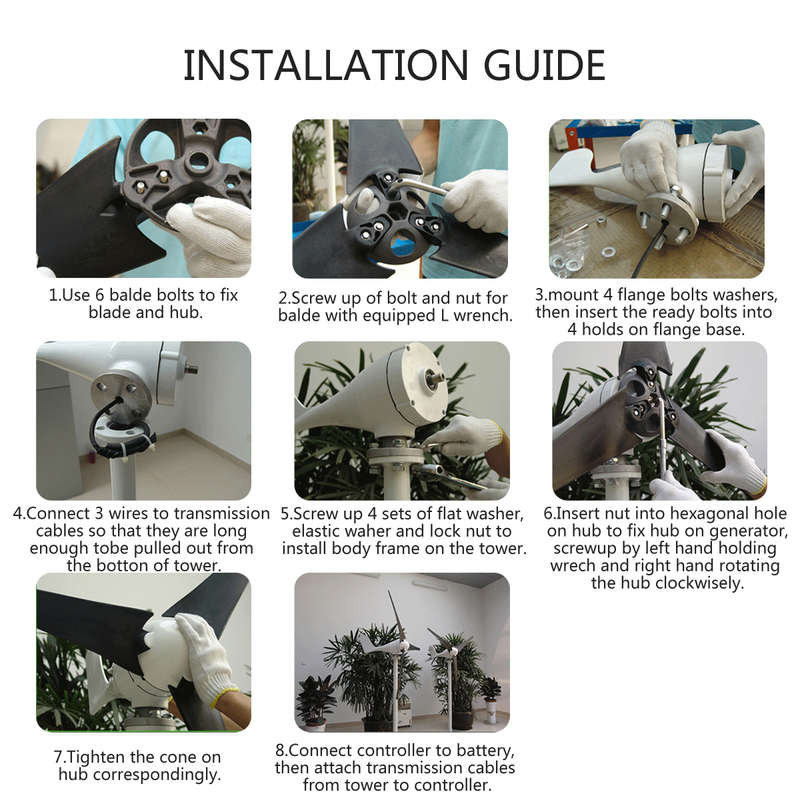

￢ﾖﾲ The installation of user-friendly design, convenient equipment installation, maintenance and repair.
￢ﾖﾲ Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage.

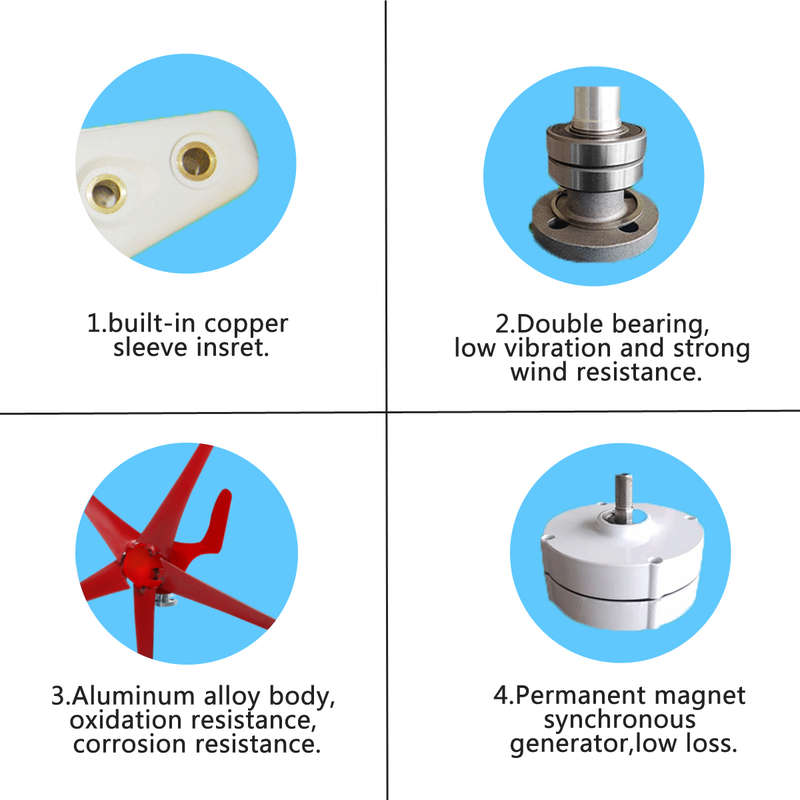

￢ﾖﾲ The shell is made of aluminum alloy die-casting, with double bearing carrier, anti-typhoon capacity is stronger, safe and reliable operation.
￢ﾖﾲ The wind wheel blades are made of nylon fiber, coupled with the optimization of the aerodynamic shape design and structural design, high wind energy utilization factor, an increase of annual power generation.
￢ﾖﾲ The generator using patented magnetic bearing alternator, coupled with a special stator design, effectively reduce the resistance torque of the generator, while the wind wheel and the generator has a more good matching characteristics, the unit running reliability.
Key Specifications:
-Rated Power: 1000W
-Rated Voltage: 12 / 24 V
-Starting Wind Speed: 2.0 m / s
-Rated Wind Speed: 13m/s
-Braking Wind Speed: 13m/s
-Safe Wind Speed: 50m / s
-Braking Modes: Electromagnetic
Other Specifications:
- Material of Blades: Nylon Fiber
- Quantity of Blades: 5pieces
-Wind direction adjustment: Automatically
-Operating temperature: -40￢ﾄﾃ to 80￢ﾄﾃ
- Size: Blade length:600mm
Wheel diameter: 1.3m
-Weight: 9kg
Package Include:

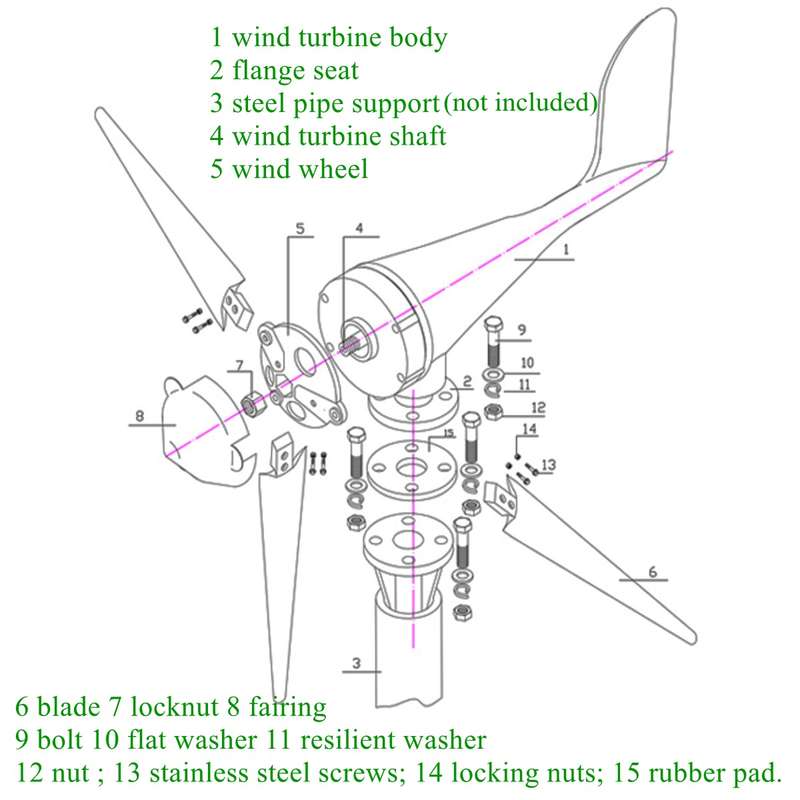

1x Wind Turbines Generator kit ( Shell blade controller fitting screw flange hood hub )
1x Wind Turbines Controller
1x User Manual
1x set of Mounting Kits
Note:
1. Please allow 0.5-1cm differences due to manual measurement.
2. Due to the light and screen difference, the item's color may be slightly different from the pictures.
