It is a basic multi-function instrument that can display various physical parameters such as voltage, current, power, capacity, energy, and operating time in real time. Overvoltage, undervoltage, overcurrent can be achieved through reserved relay interfaces. . And the meter uses 1.8-inch color LCD as a display, display data more comprehensive, clear and easy to observe. This meter is ideal for applications that require monitoring of the output voltage and current as well as applications such as charging and discharging batteries.
Features:
1. The bidirectional detection current makes it easy for the user who detects the charge and discharge to detect the bidirectional current without changing the wiring direction.
2. Power-off memory function, able to memorize the number of AH and WH before power off after power off, which is convenient for observation and measurement.
3. time and AH number clear function, does not affect the next measurement.
4. The number of AHs can be filled up without affecting the direct discharge measurement.
5. voltage, current, charge capacity AH number, WH number, time, power at the same time display, display information is comprehensive and clear.
6. with output off function keys, flexible open or shut off the output.
7. with over-voltage, over-current protection.
8. when necessary, you can turn off the LCD display, reduce product power

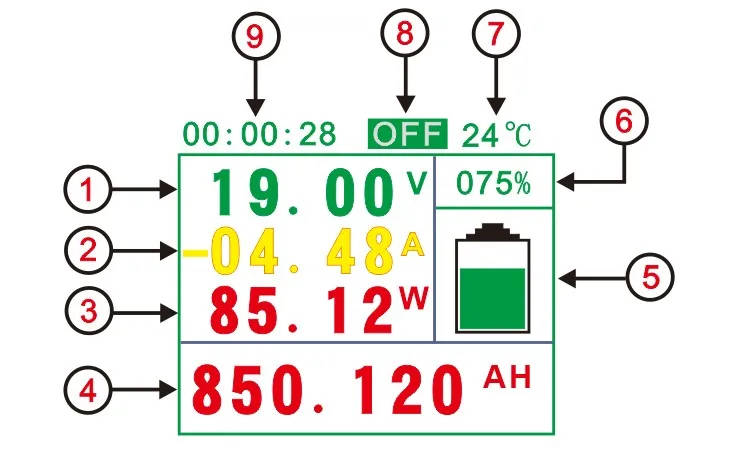

1 measured voltage value
2 Measured current value
3 measured power value
4 Accumulated capacity or energy value
5 Battery Remaining Capacity Progress Bar
6 percentage of battery remaining capacity
7 Measured temperature(Default withTemperature measurement function)
8 output status display
9 Total running time
10 Empty
Instructions:
1. AH, WH display switch, click to switch to display WH number, click to switch to display AH number.
2. Press OK key to enter the system parameter setting interface, then press OK key to switch the type of setting parameter. The set parameters include BAT, BPC, OPP, OVP, LVP, NCP, OCP, OTP, ADS, TTL, CLR, DTE. , Click to change the parameters, after the parameters are set, press OK to exit the parameter setting interface.
Function introduction:
1, "BAT" battery capacity value setting, this parameter is to set the battery measured total capacity.
2, "BPC" battery remaining capacity percentage, can be set according to the value of the remaining battery AH
4, "OVP" set over-voltage protection value, if the OVP value is set, when the actual measured voltage value is greater than the set value, it will prompt over-voltage, and cut off the relay (self-provisioned).
5, "LVP"
