100A Coulometer Battery Capacity Tester (for getting accurate reading of battery percentages) wit...

* Attention: The min voltage of the battery pack should higher than 8V for it to turn on.

TK15H is a kind of high precision current type battery capacity tester (also known as coulometer)which can test the voltage, current and capacity of battery to help users know the state of battery in time.
TK15H has memory function. It is suitable for mobile and portable equipment.

Description

- Type: Battery tester
- Model: TK15H
- Operating voltage range: DC8-100V
- Current: 100A

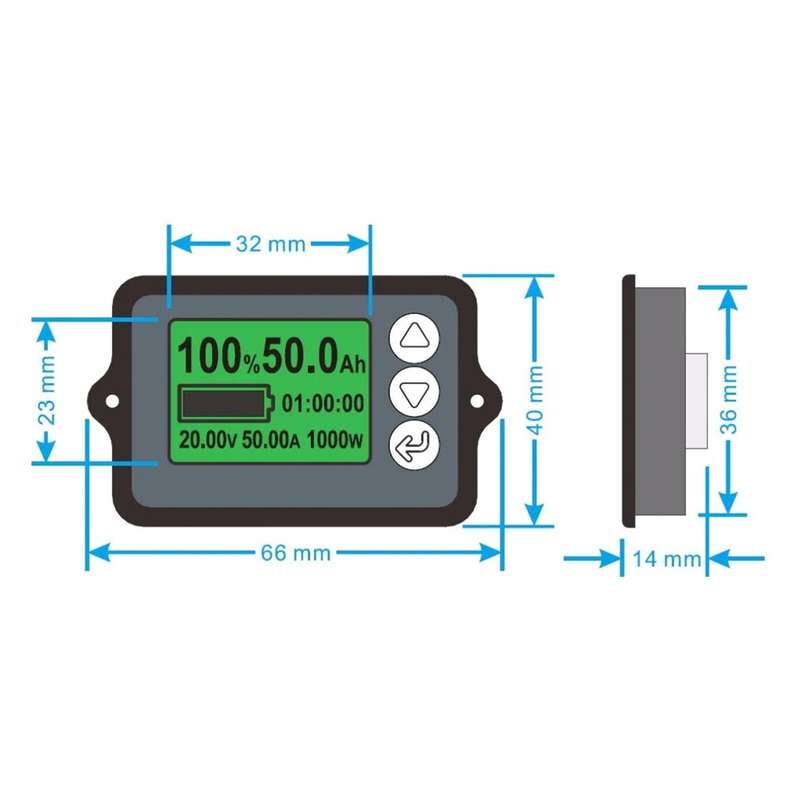

- Overall Size: 66x40x10mm
- Display area size: 32x23mm
- External normal Sampler Size:23x18x5mm

Technical Parameters

- Working power consumption: 8.0mA (Max:10.0mA)
- Standby power consumption: 0.5mA (Max:0.8mA)
- Sleep power consumption: 50uA (Max:60uA)
- Voltage acquisition accuracy: +/-1.0%
- Current acquisition accuracy: +/-1.0%
- Using ambient temperature rang: 0-35C
- Backlight on current: 40mA (Max:50mA)
- Backlight off current: 30mA (Max: 40mA)
- Battery capacity setting value: 0.-590A
- External normal sampler working current: 30.0A (Max:50A)
- External big sampler working current: 50.0A (Max:100A)

Features

- The empty and full voltage of the battery can be adjusted
- The backlight opens automatically when in use
- The device has an automatic memory function that activates upon power down
- It has a fast response rate
- The device has low power consumption and automatically wakes up

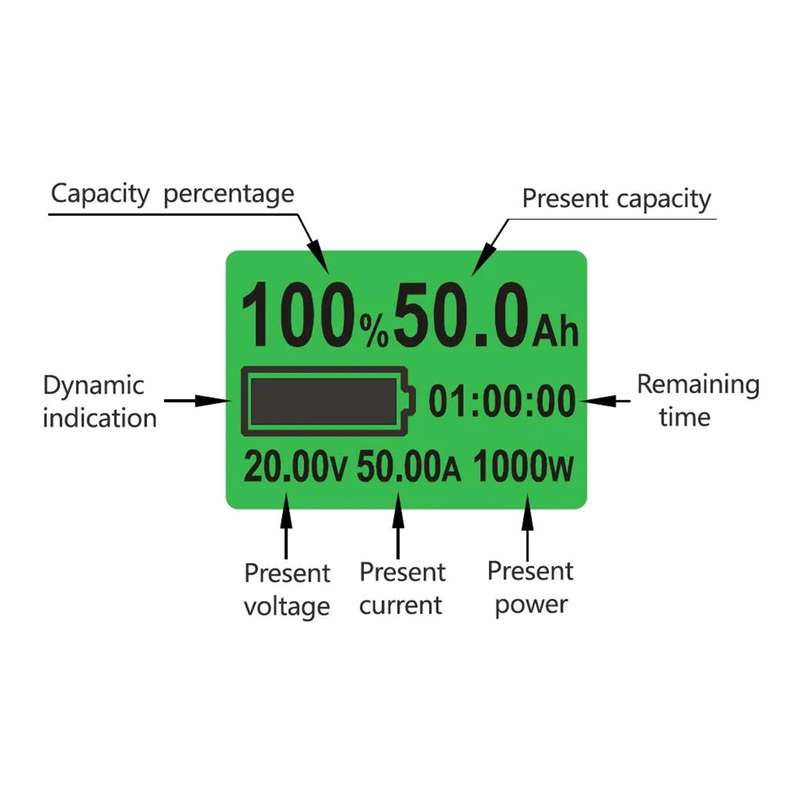

Display

- The display shows the residual capacity of the battery in Ah or mAh
- It displays the capacity percentage and an indicator
- The battery voltage is displayed
- The battery current is shown
- The power output is displayed
 -The display shows the remaining time for charging and discharge
