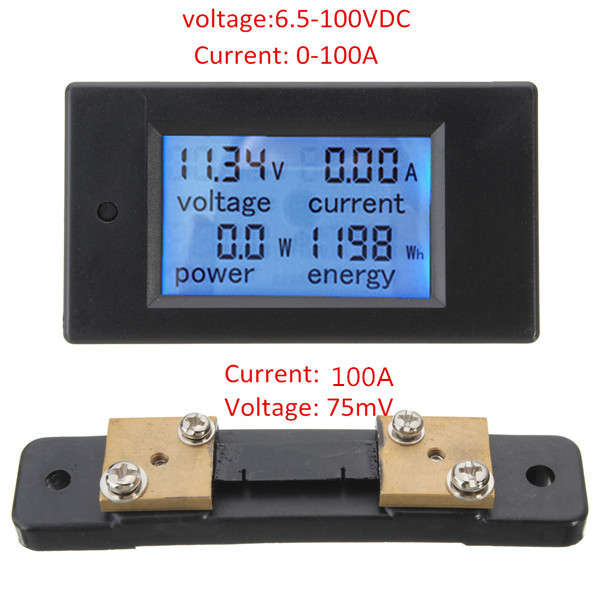

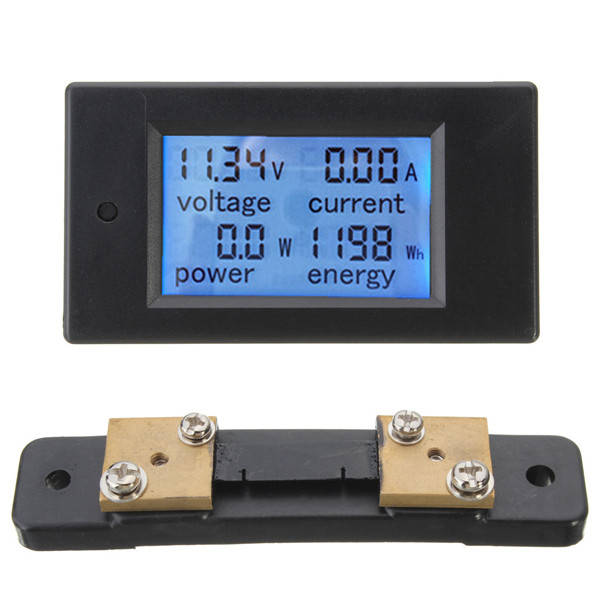

Name: 100A DC Digital Multifunction Power Meter Energy Voltmeter Ammeter With 100A Shunt
SKU: CSV_UPC1087119
Price: 354.45 ZAR
Availability: SoldOut

100A DC Digital Multifunction Power Meter Energy Voltmeter Ammeter With 100A Shunt

5 were available / new

Indicative market price: R638.01

R354.45

44% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10216

98.21 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

CSV_UPC1087119

Bob Shop ID

296614990

100A DC Digital Multifunction Power Meter Energy Monitor Module Voltmeter Ammeter With 50A Shunt

Description:

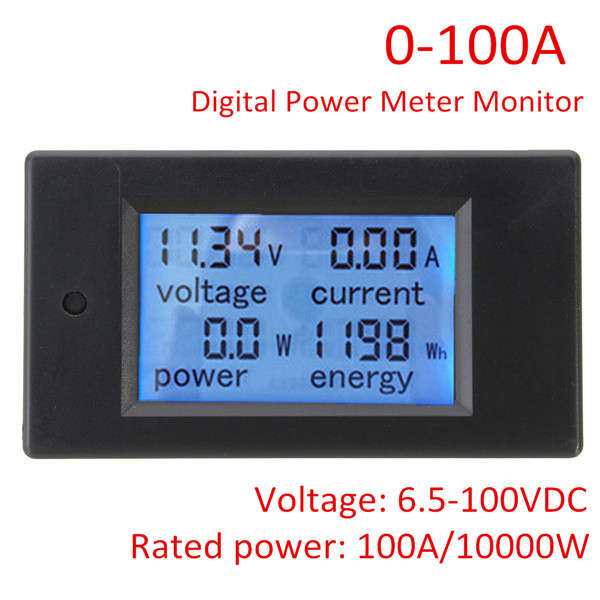

Working Voltage		DC 6.5V-100V
Measuring Voltage		DC 6.5V-100V
Measuring Current		0-100A
Rated Power		10000W
Display		LCD
Display Format	Power	0.0-999.9W (<1KW)
		1000-5000w(>1KW)
	Energy	0-999Wh(<10KWh)
		10-9999KWh(>10KWh)
	Voltage	6.50-99.99V
	Current	0.00-100.00A

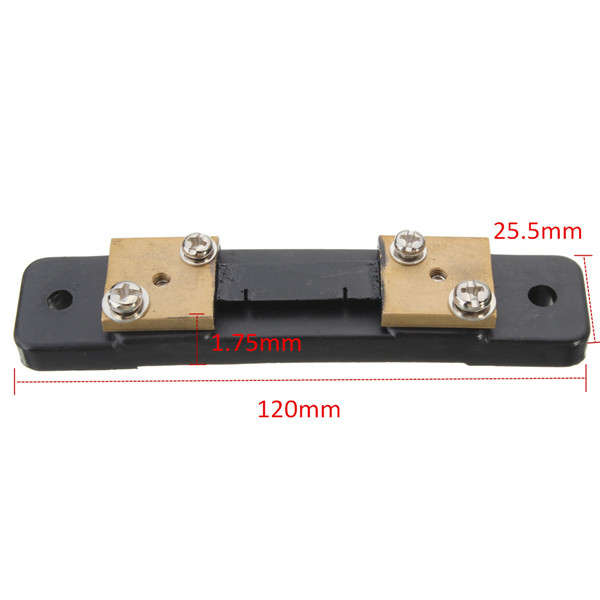

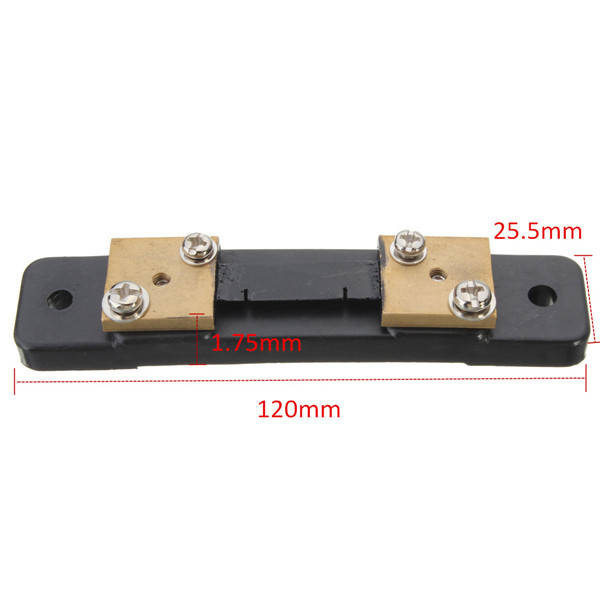

Shunt	Voltage	75mV
	Current	100A

Feature:

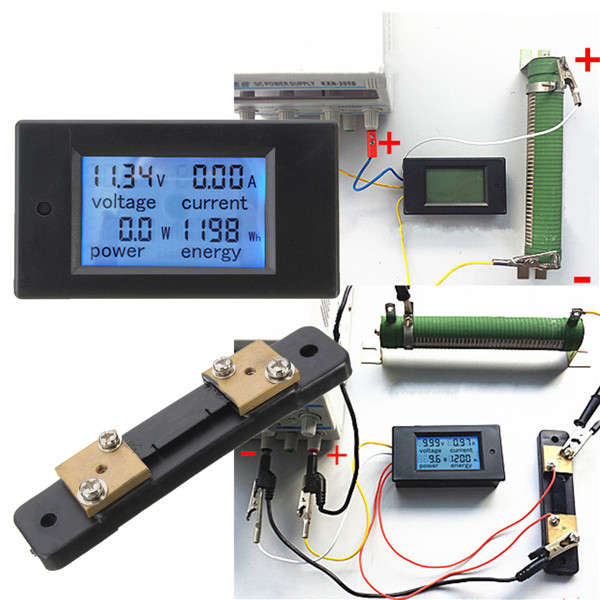

100A DC multifunction power meter with 100A shunt current
LCD display wih backlight, easy to read
Equipped with external shunt design, no extra needed
Power, current, voltage and energy display and monitor timely , easy to know electric energy consumption
Electric energy clear function, perfect for various device monitor separately
overload alarm function (over power alarm threshold, the backlight and voltage flashing alarm)
Power memory, shave the power parameter when power down, safe to use

Operaqtion Tips:

1. The backlight control

By short press the button to turn on or off the backlight, In the bakclight mode,the data will automatically store when power down

2. The energy cleared

Step 1: Press the power button 5 seconds until the digital display "CLr" , then release the button;

Step 2: Now it is in the "energy clear" mode, press the button again, the energy data is cleared and stop flashing;

Step 3: If in the "energy clear" mode you do not press the button in 5 seconds,then the energy data will not be cleared

3. Set power alarm value

Step 1: Press the button, when the power area display "SET ", release button,

Step 2:it is in the pweor alarming setting mode, the voltage area displays the highest value of the voltage alarm,the current area displays the lowest value of the voltage alarm. Then you can press the button quickly to increase the value" +1", when there is no key operation more than three seconds,

Package included:

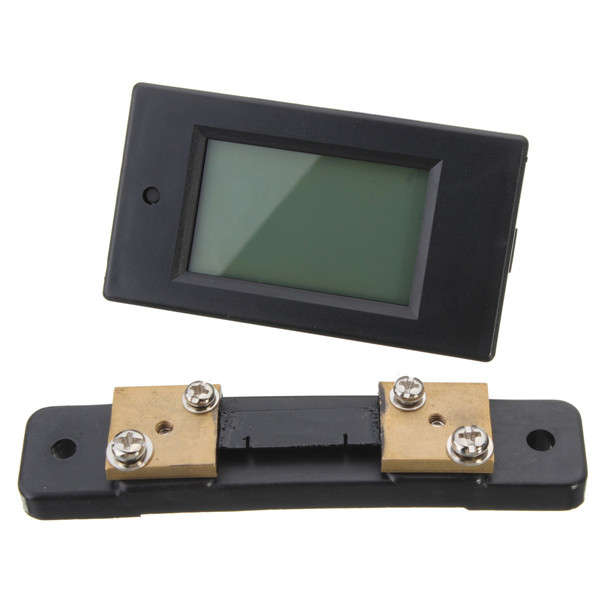

1X 100A Power Meter
1X 100A Shunt
