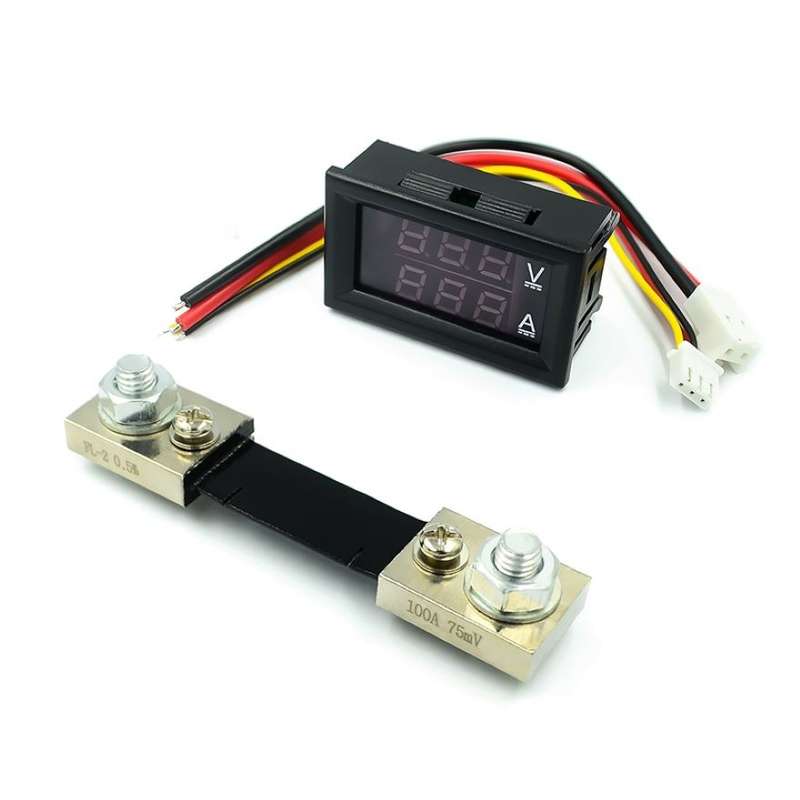

100A Dc volt amp display panel + Shunt resistor 100A 75mV FL-2

Discover a reliable way to measure and monitor current levels with the 100A Dc volt amp display panel + Shunt resistor 100A 75mV FL-2! This top-of-the-line model is perfect for hobbyists who need to be as accurate as possible when establishing their system parameters.

A Volt amp meter is an instrument that measures voltages of alternating electric current on a scale usually graduated in volts, or millivolts (0.001 volts). Many voltmeters are digital, giving readings as numerical displays.

In order to measure a device's voltage, a voltmeter is connected in parallel to a device. This setup is important as objects in parallel usually tend to experience the same potential difference. It is connected in parallel with the circuit mainly because the same voltage drop occurs across it.

A voltmeter also has high internal resistance. This is done mainly because it is used in measuring the potential difference between the two points of the circuit. As such the current of the measuring device remains the same. In other words, the high resistance of the voltmeter will impede the flow of current through it. This allows the device to take correct readings of the voltage.

Simple Wiring Diagram

The image shows us how a 100A Dc volt amp display panel + Shunt resistor 100A 75mV FL-2 should be connected to a battery to be able to measure the Volts and Amps that a DC light bulb draws from our connected battery.

100A Dc volt amp display panel + Shunt resistor 100A 75mV FL-2 Specification

• Model: 100A/75mV
• Length: 20.9cm
• Accuracy level:0.5-1
• Overrating Capacity: 120% of Rated Current,2 hours
• Shock Frequency Endurance:80 ~ 120 times /min,6 hours
• Voltage drop: 50mV 60mV 70mV 100mV
• Environmental conditions: -40 to +60c relative temperature 95% (35c).
• Rated current 100A, the temperature does not exceed 80c
• Rated current of 100A, the temperature does not exceed 120c
