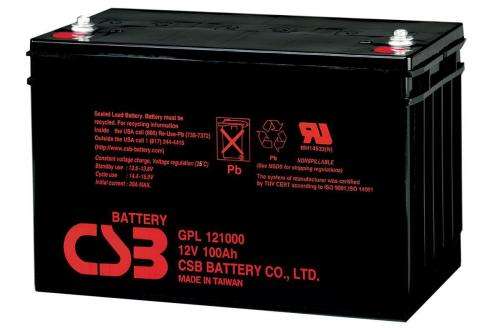

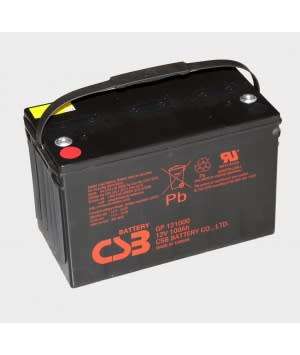

SpecificationVoltage12 V Capacity100Ah @ 20hr-rate to 1.75 volts per cell @ 25°C (77°F) Weight (kg) Approx. 33.5kg. (73.85 lbs.) Maximum Discharge current (A) 800A (5 sec.) Internal Resistance Approx. (mΩ) 3.5mΩ Operating Temperature Range Discharge-15~50(5°F~122°F) Charge-15~40(5°F~104°F) Storage-15~40(5°F~104°F) Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 3°F) Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F) Recommended Maximum Charging current limit 30A Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F) Self-Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25 Terminal I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
