FEATURES:
Maintenance free.
Safety and no leakage,
Excellent recharge and discharge performance.
Low self-discharge rate,
Adapts to high or low temperature.
Good deep discharge performance.
Longer cycle life.
Rated Voltage- 12V
Numbers of cells - 6 Cells
Capacity- 100Ah @10hr-rate to 1.80V per cell 25 C
Weight- 30.8kg
Internal Resistance- Approx. 6m
Terminal- F1/F2
Max. Discharge Current- 1500A(5s)
Short Circuit Current- 5000A
Max. Charging Current- 25A
Reference Capacity- C10 100.0AH
C3 74.6AH
C1 56.8AH
Design Life- 10-15 years
Float Charging Voltage- 13.6 V-13.8 V @ 25 C Temperature Compensation: -20mV/ C/Cell
Cycle Use Voltage- 14.4 V-14.9 V @ 25 C Temperature Compensation: -30mV/ C/Cell
Operating Temperature Range- Discharge: -20 C~60 C
Charge: 0 C-50 C
Storage: -20 C~60 C
Normal Operating Temperature Range- 25 C+5 C
Self Discharge- Less than 3% at 25 C per month
Container Material- A.B.S. UL94-HB, UL94-VO
Length - 330+2mm (13.8 inches)
Width- 173 1mm (6.8 inches)
Height- 217 1mm (8.9 inches)
Total Height- 222 1mm (8.7 inches)
What's in the box

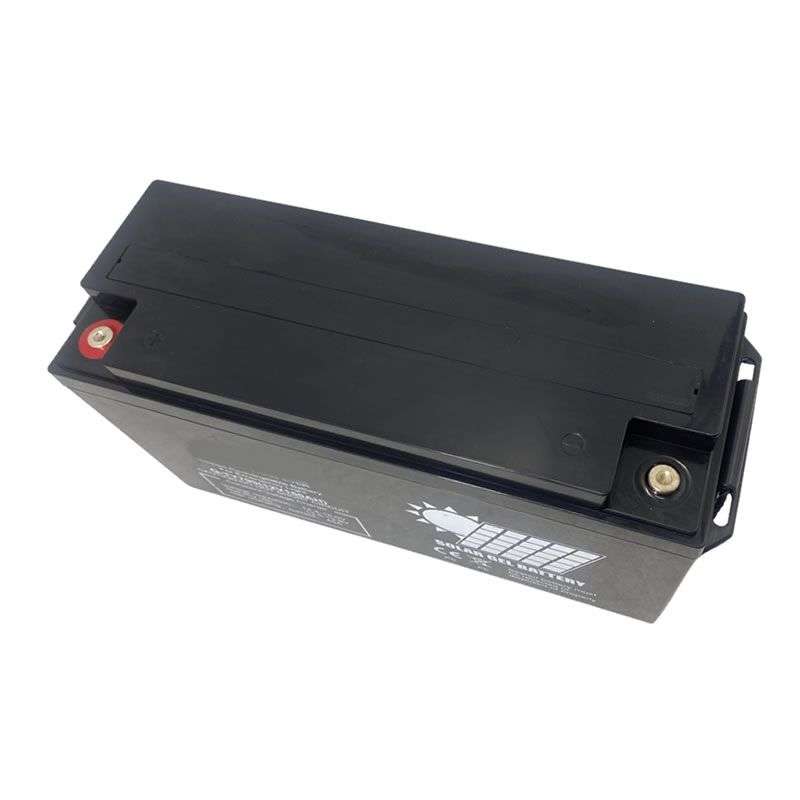

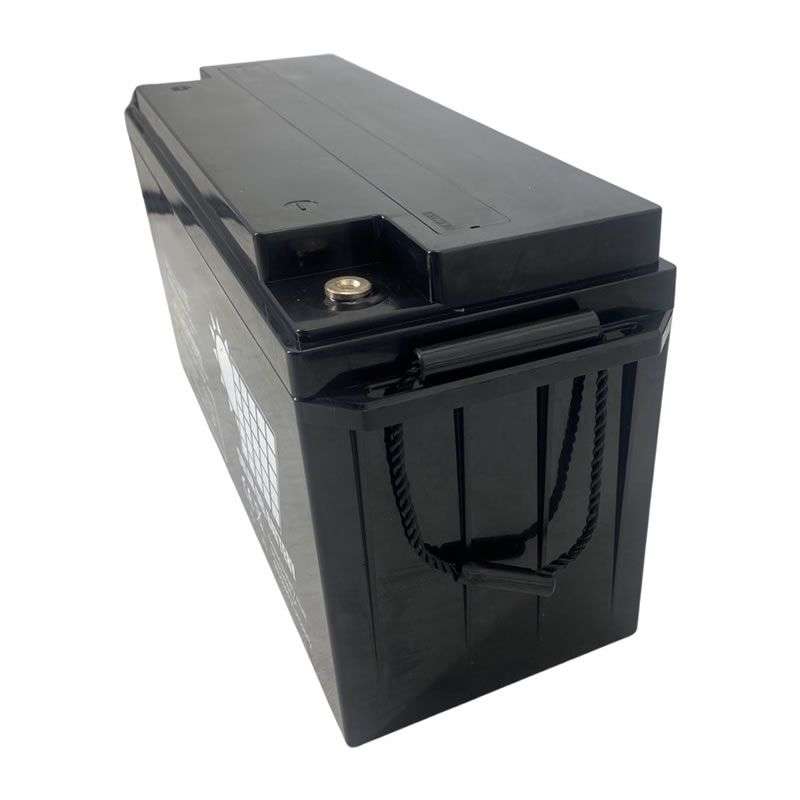

1 x Solar Pal 12VDC 100Ah Gel Battery
