S-2003 product is a high-intelligence solar off-grid or grid-tied energy storage power generation system, a complete set of comprehensive solutions for household lighting, electrical appliances, and other electricity consumption. It generates electricity through solar panels or via the 14.8V AC Charger (PWM controller stores DC power in lithium-ion batteries and uses high-frequency inverters to store DC power in lithium-ion batteries, converting DC power into AC power, pure sine wave 220VAC), which can supply household lighting, electrical appliances, monitoring, office, communications, and other electrical appliances and equipment.
Product application
50W computer 4hrsd (at a time)
35W*bulbs 10hrs (at a time)
65W TV & Decoder 6hrs (at a time)
Equipment name Total available duration (for reference only)

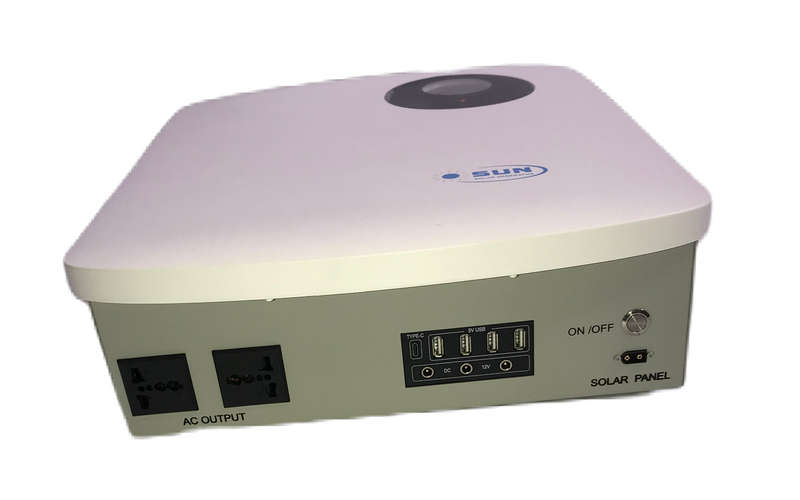

There are 2 internal AC output ports. The product provides sine wave AC
power mainly for household appliances and equipment. Like laptops, IPAD,
small printers, lamps and lanterns, fish tank heaters, photographic equipment,
massage equipment, multimedia, and other electrical equipment.
Product model S-2003
IP Grade: IP20
Operating Temperate: -10C ~ -50C
Rated power 500VA/ 500W (note: inductive load application <200W)
Output waveform Pure sine wave
Battery capacity 1216Wh /1.2kw
Battery Type: LiFePO4
Inverter output 230VAC±3% 50Hz
Frequency: 50Hz
Rated Current: 2.17A
Battery voltage 12.8V
Mains charging 18.24VDC 16.3A Max.
Solar Input Specs
PV Input: 300W
Open circuit voltage: 21.8VDC
Short Circuit Current: 20A
Maximum Power Voltage: 18.24VDC
Photovoltaic charging (PW) 14.4VDC 25A Max
DC output DC- 12VDC 5A/ USB-5VDC 2A
Inverter efficiency ＞92%
Built-in PWM:
Cut off charging voltage: 14.4VDC
Maximum charge current: 25A
Overload protection Overload protection 10 S automatic shut- off output, 5 S automatic
recovery, and automatic locking for three consecutive times
Protection functions
Battery under- voltage, over- voltage protection, overload protection, short circuit protection, and over- temperature protection.

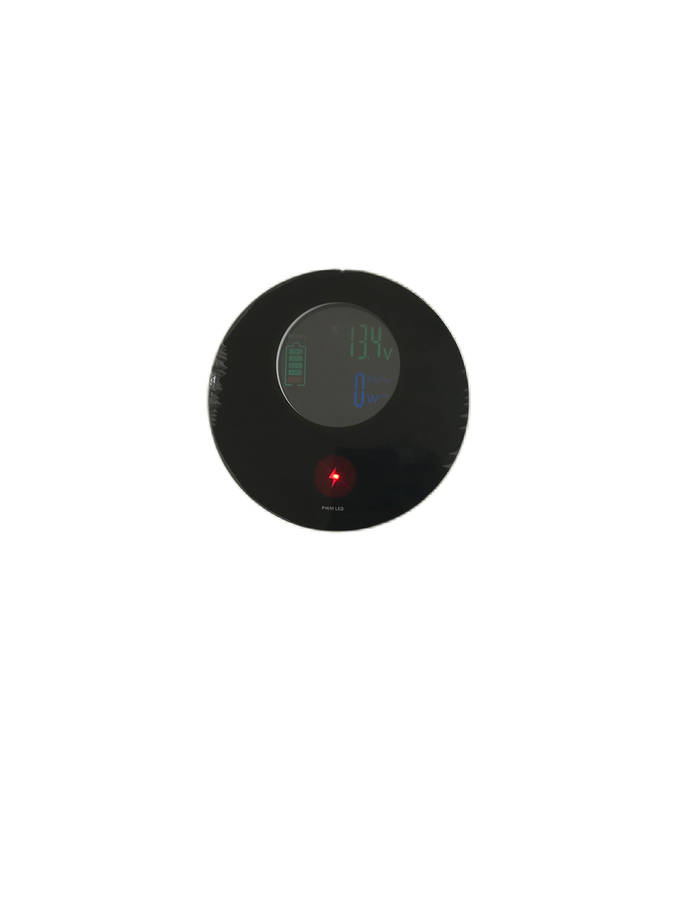

Display mode LED digital display: battery voltage, battery percentage, inverter.
power, inverter voltage Working environment Temperature: 0 ~ 40; Humidity: 0-90% (without condensation) Cooling mode Intelligent air cooling.
Dimensions
Product：483*387*151MM (L*W*H)
Packaging ：515*455*195MM(L*W*H)
Weight Net weight： 14.3kg Gross weight： 15.7kg

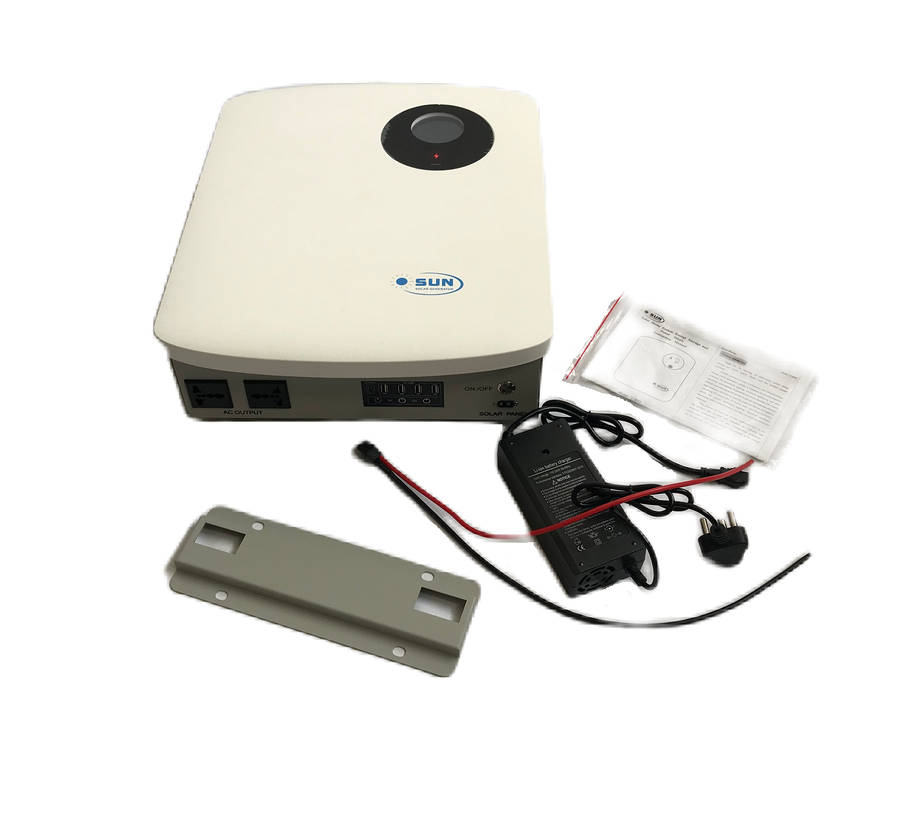

Packing list
Category Name Quantity
1x 500w 1216Wh Wall Mounted Lithium All-In-One Power Station
1x User instructions.
1x Red and black XT60 4mm²*500mm.
1x 8A adaptable charger 1pc
