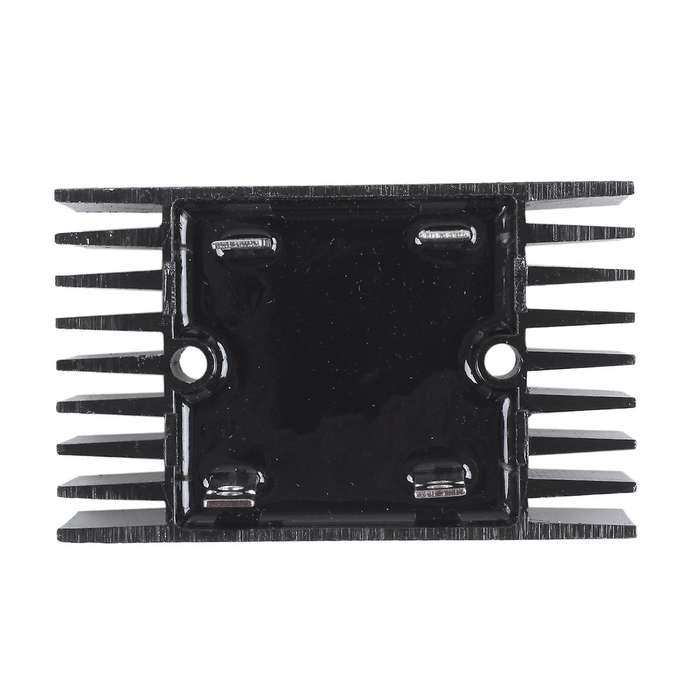

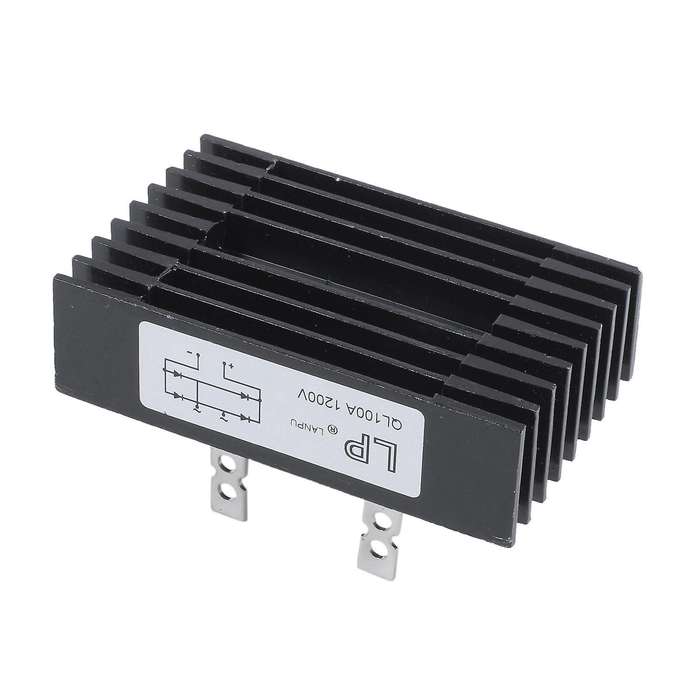

100amp 1200volts 4 Pins 1 Phase Diode Bridge Rectifier Ql100 Type

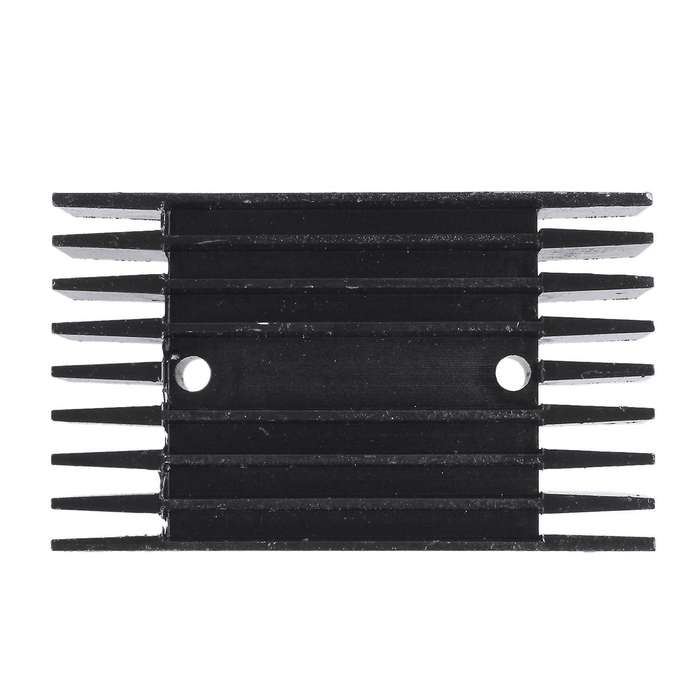

Heatsink base.Convert your three phase current input into DC with this Bridge Rectifier.This bridge rectifier can be used in a wide of applications.Product Name : Bridge RectifierModel : -QL100A\/1200VOutput Current(DC) : 10ARepetitive Reverse Voltage(AC) : 1200VFixing Holes Diameter : 5.5mm \/ 0.22\Fixing Holes Spacing : 54mm \/ 2.1\Main Body Size : 98 x 59 x 28mm \/ 3.86\ x 2.3\ x 1.1\ (L*W*T)Overall Height : 52mm \/ 2\Material : Aluminum CasingColor : BlackNet Weight : 228gPackage Content : 1 x Bridge RectifierNote:Light and different displays may cause the color of the item in the a little different from the real thing.The measurement allowed error is +\/-1-3 cm.
