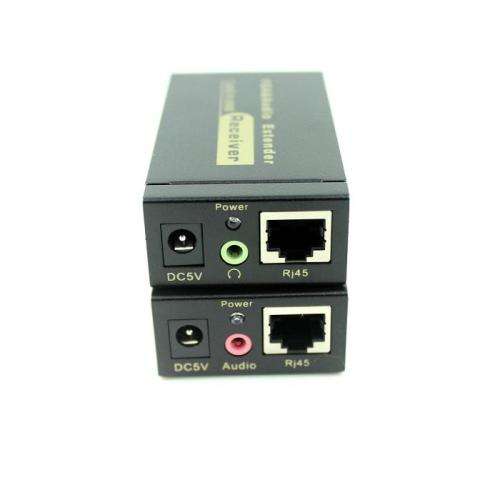

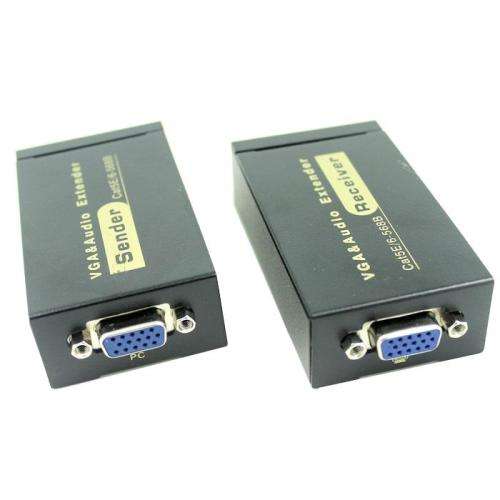

100M VGA Audio Extender

  PICTURE FOR REFERENCE ONLY

Description:

100 Metre VGA and Audio extender via single Cat5/5e/6 cable

The VGA Audio Extender can extend the Audio and Video Port of a Computer up to a distance of 100m through a single Cat 5/5e/6 cable

Features:

• Can extend audio, video(VGA) port of the computer max of 100m.
• Provides a VGA port on the Sender.
• Uses single cable (CAT5,CAT5E,CAT6), the cost is inexpensive.
• It's drivers free and simple to install.
• Display is in real-time with anti-static function.
• Can be cascaded to increase the max distance.
• Automatically adjusts sharpness and brightness.

Specification:

• Compatibility:DOS,Windows98SE/ME/2000/XP/Vista/7, NT, Linux
• Input Connector:HD15PIN(VGA)
• Output Connector:HD15PIN(VGA)
• Local Output:HD15PIN(VGA)
• Bandwidth:300MHz(-3 dB)/0-10MHz +0.1dB/0-130MHz +6dB to -0.8 dB
• Input level Range:0.5-2.0Vp-p
• Input Level Error:less than 3mV
• Input Impedance:75O
• Output Impedance:75O
• Echo Ullage:-30dB@5MHz
• Max DC Compensation:±5mV-0
• SNR:60dB
• Connector Standard:HDB15??Mini-DIN6, RJ45
• Video Standard:VGA??SVGA??XGA??SXGA??UXGA??LCD
• Cable Standard:CAT5??CAT5E??CAT6 UTP
• Power Adapter:DC5V/1A
• Operational Temperature:-25°C~+70°C
• Deposited Temperature:-40°C~+80°C
• Relative Humidity:0~95%(non-condensing)

Package Contents:

• 1 x Sender.
• 1 x Receiver.
• 2 x Power Adapter.
• 1 x User Manual.
•
