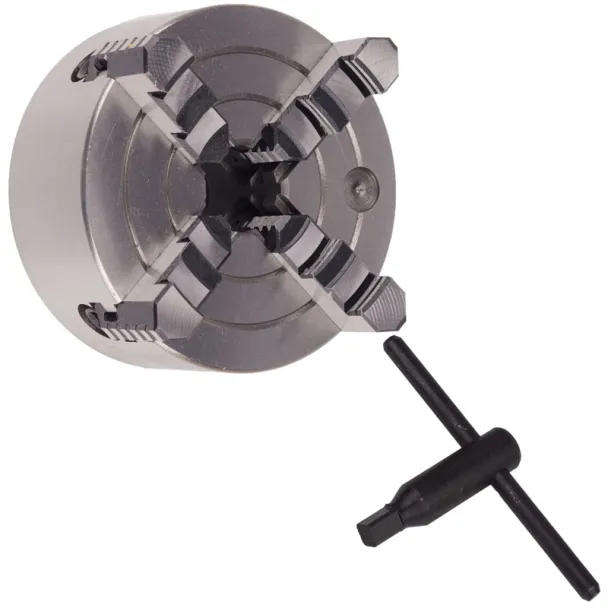

100mm 4-Jaw Independent Chuck
This high-precision 4-jaw independent chuck is commonly used on engineering lathe machines. Unlike self-centering chucks, each jaw on this chuck can be adjusted independently, allowing for accurate clamping of irregular or off-center workpieces. A valuable tool for machinists who require versatility and precision during lathe operations.
Features
High-precision engineering accessory
Independently adjustable 4-jaw design
Ideal for clamping irregular or off-center components
Suitable for use on various engineering lathe machines
Specifications
Chuck Diameter (D): 100 mm
Registration Recess Diameter (D1): 72 mm
Bolt Circle Diameter (D2): 84 mm
Center Hold (D3): 25 mm
Registration Recess Depth (h): 4 mm
Max Height (H): 74 mm
Body Thickness (H1): 54 mm
Number of Bolts: 4
Size of Bolts: M8
