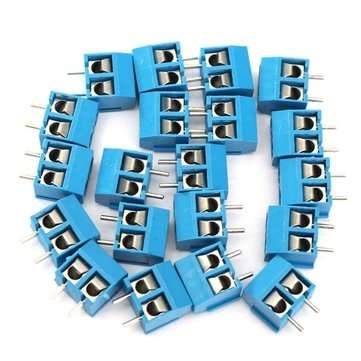

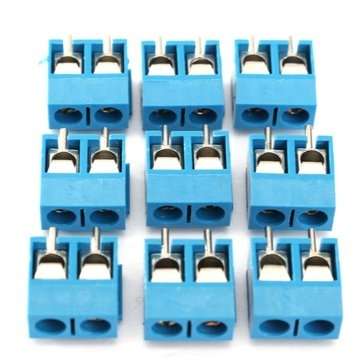

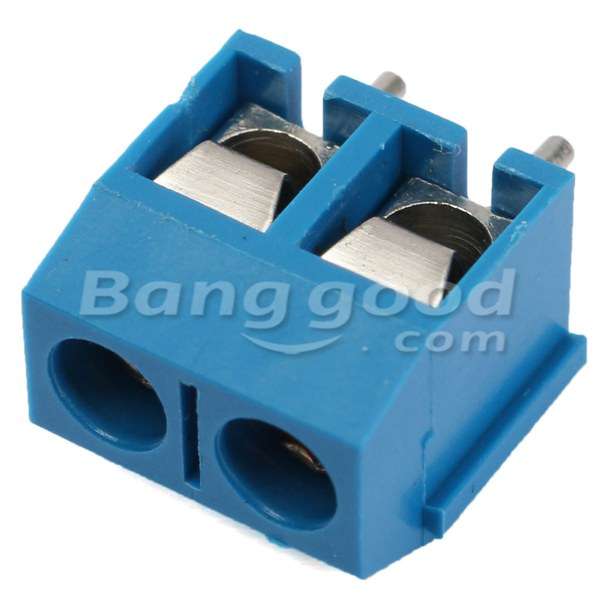

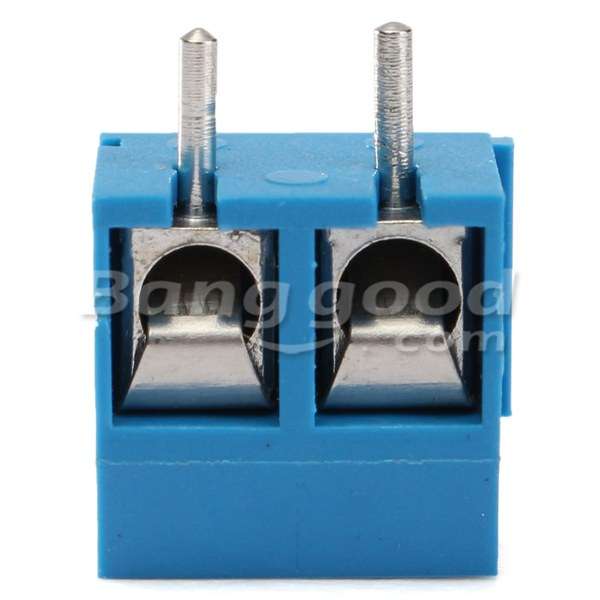

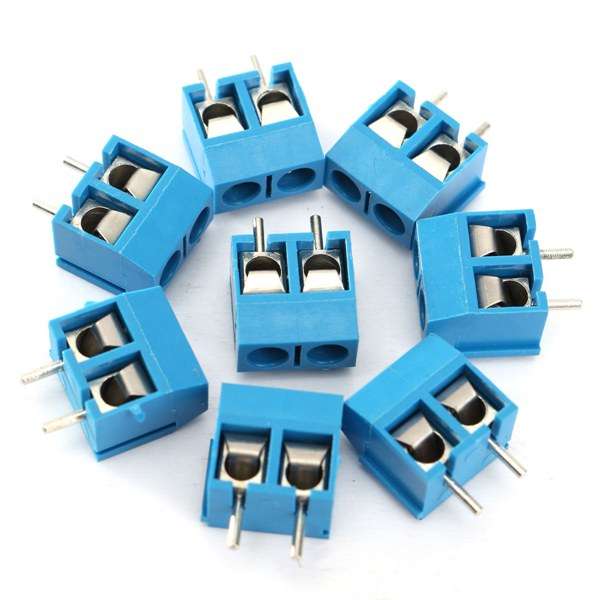

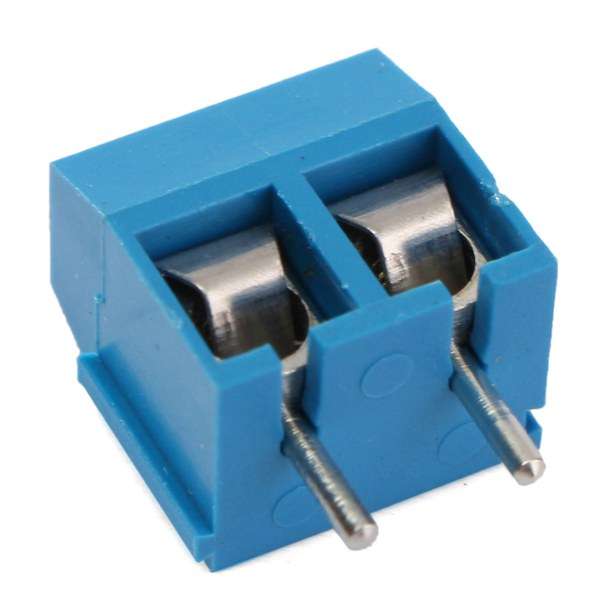

100pcs 2 Pin Plug-In Screw Terminal Block Connector 5.08mm Pitch

20 available / new

R398.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3467

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641098338

Description:

As a kind of connector, the terminal block is an important module in the electric industry.
It is convenient to connect wires.

Electrical Properties:

Rated voltage: 300V
Rated current: 16A
Contact resistance: 20m
Insulation resistance: 5000M/1000V
Withstanding voltage: AC1500V/1Min

Mechanical Properties:

Temp. Range: -30a~+120a
Max Soldering: +250a for 5 Sec
Torque: 0.5Nm

Specifications:

Material: Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Pitch: 5.08mm Poles: 2P
Color: Blue
Quantity: 100

Package included:

100 x Terminal blocks
