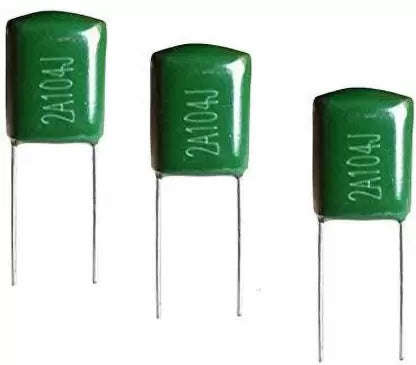

100V 100NF 104 CAP - PACK OF 10

Are you a hobbyist looking for the perfect capacity? Look no further! The 100V 100NF 104 CAP is here to ensure you get the maximum power out of your circuit. It's made with high-quality polyester which makes it a great fit in any system, its shape provides an easy installation process.

A capacitor is a device that stores electrical energy in an electric field by virtue of accumulating electric charges on two close surfaces insulated from each other. It is a passive electronic component with two terminals. A capacitor is a passive electronic component that stores energy in the form of an electrostatic field. In its simplest form, a capacitor consists of two conducting plates separated by an insulating material called the dielectric.

These 100V 100NF Caps are perfect for projects that need a capacitor that has a high working voltage and a low capacitance.

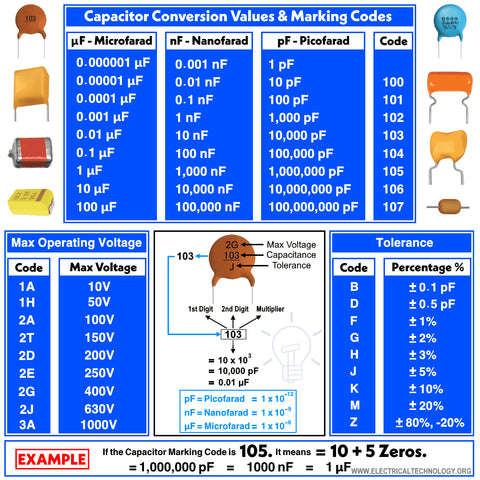

 Capacitors Explained

The above image explains to us how capacitors work regarding their capacitance, voltage, tolerance, and the numbering system that is used to identify specific capacitors. The above image also gives you a very quick and effective sum that will assist you in working out the capacitor's capacitance.

100V 100NF 104 CAP-PACK OF 10 Specification

• Item Shape: Rectangular
• Material: Polyester
• Maximum Voltage: 100 volts
• Operating Voltage: 100 volts
• Capacitance: 100nF
• Type: Radial

Documentation

• General Datasheet
