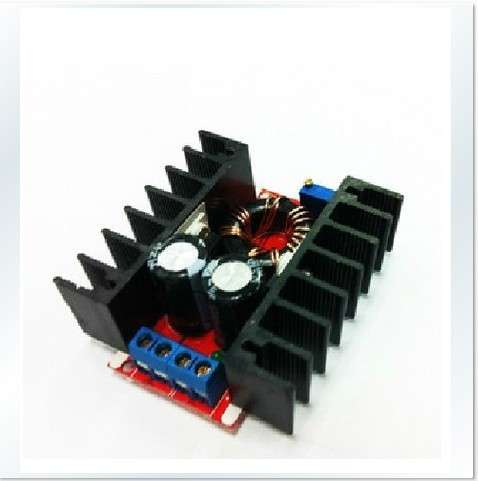

100W-150W Boost Converter Step Up Voltage Charger Module:
Properties: non-isolated step-up module (BOOST)
Size: 65x56.5x23mm
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation for 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery to drive a 19V 3.42A notebook
Conversion efficiency: 94%
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (if temperature exceeds 40°c, lower power use, or enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
