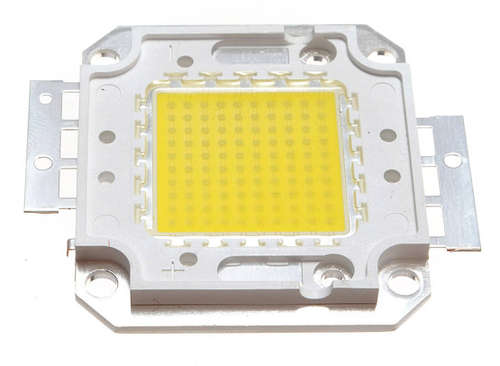

100W Cool White LED Module

100W COOL WHITE LED MODULE

Product information
This is brand new high efficiency Cool white 100W LED that is used for applications such as fish tank lights and Home interior/exterior lighting to name a few. The high efficiency light from LED modules typically allows them to be used in battery powered applications too. These modules should be mounted with heat transfer compound to an adequately sized heatsink to prevent failure through overheating as well as to extend the working life of the LED module.

Specifications
LED Chip: Genesis 30mil 100W
Output Lumens: 9000LM
Polarity markings: On LED module
DC Working Voltage (WV): 32 - 35V DC
DC Forward Voltage max (VF): 36V DC
DC Forward Current max (IF): 3000mA
Colour Temp: 6000 - 6500k (Cool White)
Beam Angle: 140 degrees
Life Span > 50,000 hours
LED Size: 20 x 20 mm

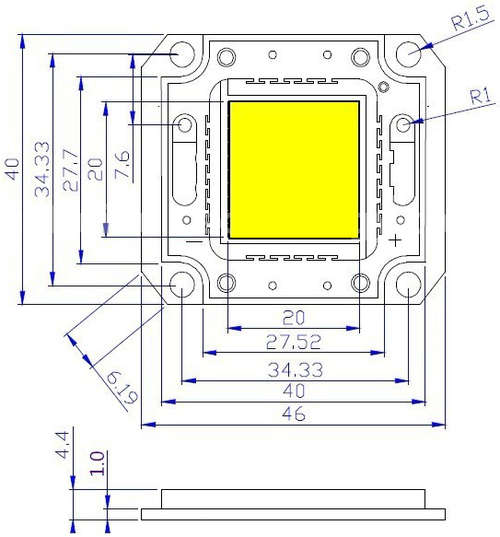

LED Module Size: 46 x 40 mm (excl. solder tabs)

Package Includes
1 x 100W Cool White LED module
