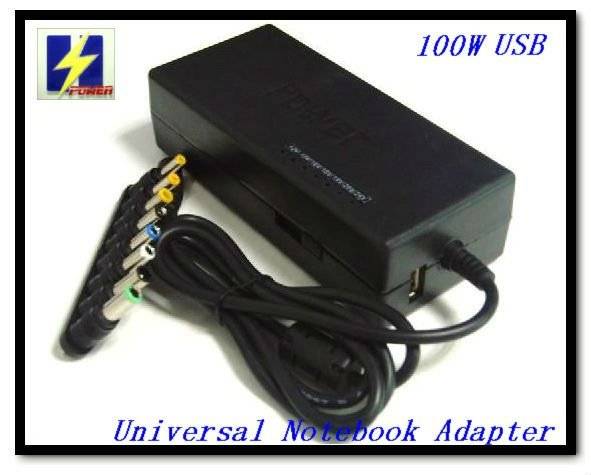

For leading brands laptop including IBM, SONY, DELL, HP, APPLE, NEC, TOSHIBA, COMPAQ, FUJITSU, SAMSUNG, ACER, SHARP, GATEWAY, LENOVO, ASUS and many others.
1)Specifications:
Input Voltage: 100-240v.
Input current(MAX): 2A
Input Frequency: 50 ~ 60Hz
Output: 15v/16v/18v/19v/20v DC-4.5A,
22v/24V DC-4A
Output power(MAX): 96w.
Dimensions(L*W*H): 117*60*38mm
Relative Humidity: 5% ~ 95%RH (non-condensing)
2) with power cord(fit your country) and neutral cardboard box packing.
3) with 8pcs tip connecter to suit almost all laptops, select output voltage to suit
Laptop and Please make sure the polarity of tip connection is correct before use
4) uses pulse width modulation (pwm) technique to regulate its output voltage
5) with the functions of overload, overheat and short-circuit protections
6) output voltage selected by rotary switch
Operating Guidelines:
1. Move the toggle switch to the scale corresponding to the voltage of the Adapter.
2. Select a suitable DC tip and connect it to DC output terminal
3. Input the AC power(100V-240V). When the green light of the Adapter turns on, normal use can be started
