Product Information

Introduction

HDMI devices (any source / player, LCD, Plasma etc) have different results when inserting HDMI Repeater
devices depending on the equipment you are using (a repeater device is any switch / splitter / extender etc).
Compatibility cannot be always guaranteed due to some suppliers using revoked HDCP keys. This is normally
seen on older HDTV's and occurs on <5% of installations. Please ensure to get confirmation from the
manufacturer of your source / player / LCD that the specific player or LCD can communicate via a HDMI
Repeater (Any switch, digital receiver, amplifier, extender, splitter etc). Some source devices might not allow
any HDMI device between itself and the LCD and will only function via a direct HDMI cable to the LCD. Your
display or source manufacturer can confirm if their product supports the functions required.

Features

CAT5e/6 cabling can fit into smaller areas than HDMI because of the head size of the HDMI cable (from

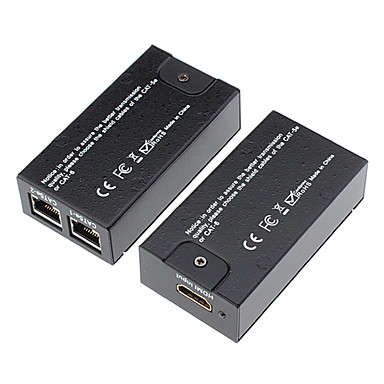

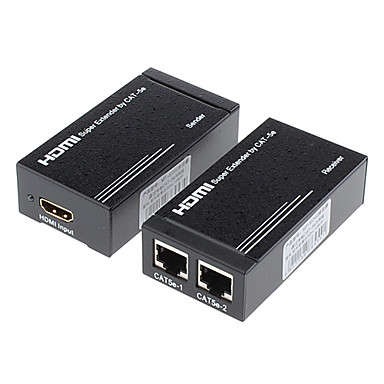

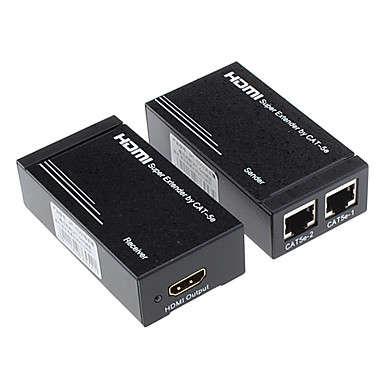

16 to 19mm) compared to 4-5mm for CAT5e/6 STP Cables. One Sender & One Receiver included.
This extender set has an IR link functionality enabling you to control any IR device via it's own remote from
the far end display back to the Extender set transmitter side near source device.
Uses CAT5e Shielded Twisted Pair to substitute HDMI cable to achieve long distance transmissions.
Transmission distance reaches up to 30 meters (1080P) and 60 meters (480p). Transmission distance
may vary on type of equipment used, quality of CAT5e/6 cables used, quality of RJ45 shielded connectors
and crimping quality of installation of RJ45 connectors. Auto-adjustment of feedback, equalization and amplify.
Please ensure that 2 of the same length CAT5e STP cables are installed. Signaling rates up to 2.25Gbits in
support of 1080P display. HDCP 1.2 compliant. Super compact in size. External power supply not required

Signal Inputs/Output

Input Video Signal: 0.5 -1.0 Vp-p
Input DDC Signal: 5 Vp-p (TTL)
Maximum Single Link Range: 1920X1080, 1080P
Output Video: HDMI v1.4, 1080p, 3D/4K, High Speed
Video format supported: DTV/HDTV, 1080P /1080i / 720P / 576P / 480P / 576i / 480i

Mechanical

Power Consumption: 5W max.
Dimensions: 45 x 25 x 81mm
Weight: 0.278Kg

Environmental

Operating Temperature: 0 ~ +80'C
Storage Temperature: -10 ~ +80'C
Relative humidity: 20-95%RH
CAT5E ESD protection human body model: ±8kV (air-gap discharge); ±4kV (contact discharge)

Power Requirements

External Power Supply: Not required
User Manual included

Connection and operating instructions

1. Ensure all Home Entertainment Equipment has been powered off (Including source/player and display device)
2. Connect the HDMI input sources such as Multichoice HDPVR, Playstation 3, Xbox 360, HD-DVD, STB etc. into
the Sender unit via an HDMI to HDMI cable
3. Connect two CAT-5e/6 STP cables to both the outputs of the sender unit and the inputs of the
receiver unit using IEEE-568B wiring standard for the CAT cabling
4. Connect the HDMI output display device such as LCD, Plasma or projector to the receiver unit via a HDMI to
HDMI Cable

These Extenders can be cascaded to reach unlimited transmission lengths e.g to double the maximum length
specification of the extender connect another HDMI Extender set.

Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall
socket/electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power
supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI equipment
are installed.
