Specification / Model | MG-HR902-4QA2C | Working humidity | Within 80%RH |
Image element | F37: 1/2.9 inch CMOS | Operating Voltage | DC12V / 2A |
Effective Pixels | 1920(H) x 1080P(V) | net weight | 1.0KG |
Resolution | 2 million pixels | Mirror image | Support horizontal, vertical and diagonal mirroring |
Lens focal length | Factory standard 3.6mm, optional 6mm, 8mm | Color to black | stand by |
Electronic shutter | 1/25-1/10000 second | Infrared light | It can be equipped with dual-light source infrared and pure infrared lamps, and the lamp type can be configured through the
production test tool |
Minimum illumination | Color 0.1Lux/F1.2, black and white 0.01Lux/F1.2, (50 IRE) | Hotspot name | HSIPC-XXXXXXXX, password: 12345678 |
Digital noise reduction | Support digital 3D noise reduction | Smart alarm | Motion detection, humanoid detection, area detection, cross-border detection |
Day and night conversion mode | IRCUT dual filter automatic mode/manual mode/intelligent color night vision | Audible alarm | Support, need to be used with dual light source lamp board |
Audio monitor intercom | 2W HD speaker/High-sensitivity built-in MIC | Smart tracking | Support, support guard position function |
Video compression standard | H.264+ | supporting agreement | TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP |
Video encoding type | BaseLine Profile/ Main Profile/ High Profile | Interface Protocol | ONVIF |
Video compression rate | 32Kbps-2Mbps | Platform docking | Built-in powerful P2P function, which can realize remote monitoring flexibly |
BLC | switch | cloud service | Free 90-day cloud storage, 24 hours a day motion detection recording, real-time encrypted video storage |
Manual speed | 0.5°/sec~360°/sec continuously adjustable | General function | One-key recovery, dual stream, heartbeat, mirroring, video masking, anonymous access, etc. |
Preset speed | Maximum 360 degrees/sec | Communication Interface | 1 RJ45 10M / 100M adaptive Ethernet port |

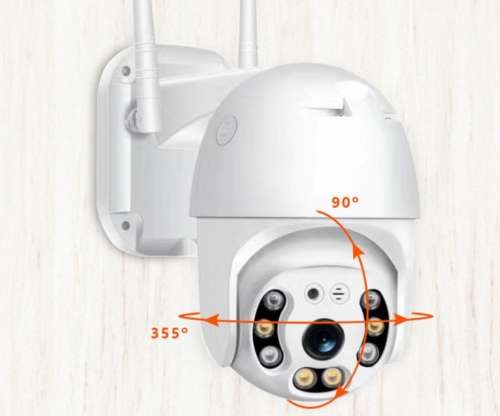

Spin | Rotate 355 degrees horizontally and 90 degrees vertically | WIFI interface | External 2.4GWI-FI antenna |
Maximum image size | 1920*1080 | SD card socket interface | Micro Sd(TF) card type, maximum 128G (optional) |
Support image format | Main stream support: 1920*1080 (1080P), 1280*960 (960P), 1280*720 (720P), 704*576(D1), 640*480 (VGA); slave stream support:
640*480(VGA ), 352*288 (CIF), 176*144 (QVGA) | Reset button interface | stand by |
Pixel size | 3.0um(H)*3.0um(V) | Network Interface | 1 RJ45 10M / 100M adaptive Ethernet port |
Main stream resolution and frame rate | 1080P; 15fps dynamic control | PTZ control interface | stand by |
sensor | 1/2.9 CMOS 0.1Lux/F1.2 (color); 0.01Lux/F1.2 (black and white) | power supply | DC12V |
Operating temperature | -1050 | working environment | -1050, 30%80%RH |
