108X Ebike Trigger Throttle Plastic Finger Throttle 24V 36V 48V 60V 7... (DIRECTION: LEFT | TYPE: 2)

SELECTED OPTION:
DIRECTION: LEFT
TYPE: 2

for more options in this item

Specifciation:

Type	108X Thumb throttle
Voltage	12V,24V,36V,48V,52V,60V,72V
Wire length	180cm(SM)

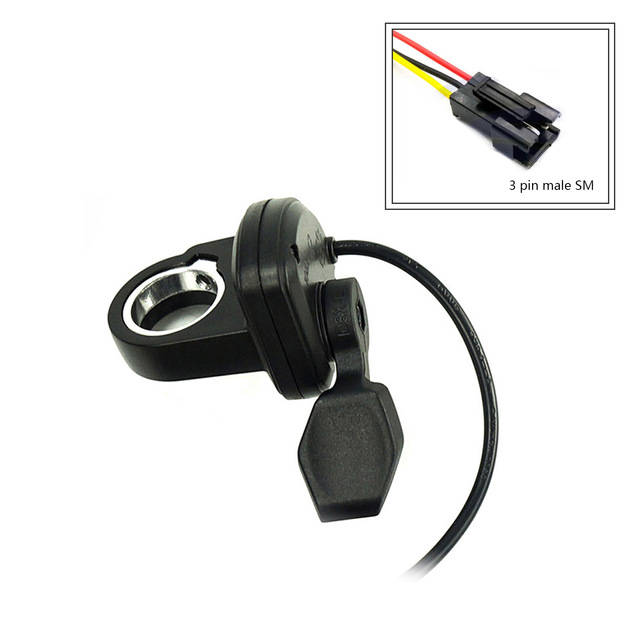

Plug	3 pin connector
Installation	Left/Right
Weight	120G

Connection instruction: 1.red = + 5 Volt INPUT 2.black = - 5 Volt INPUT 3.white = SIGNAL Output (back to the controller to tell it the chosen speed)

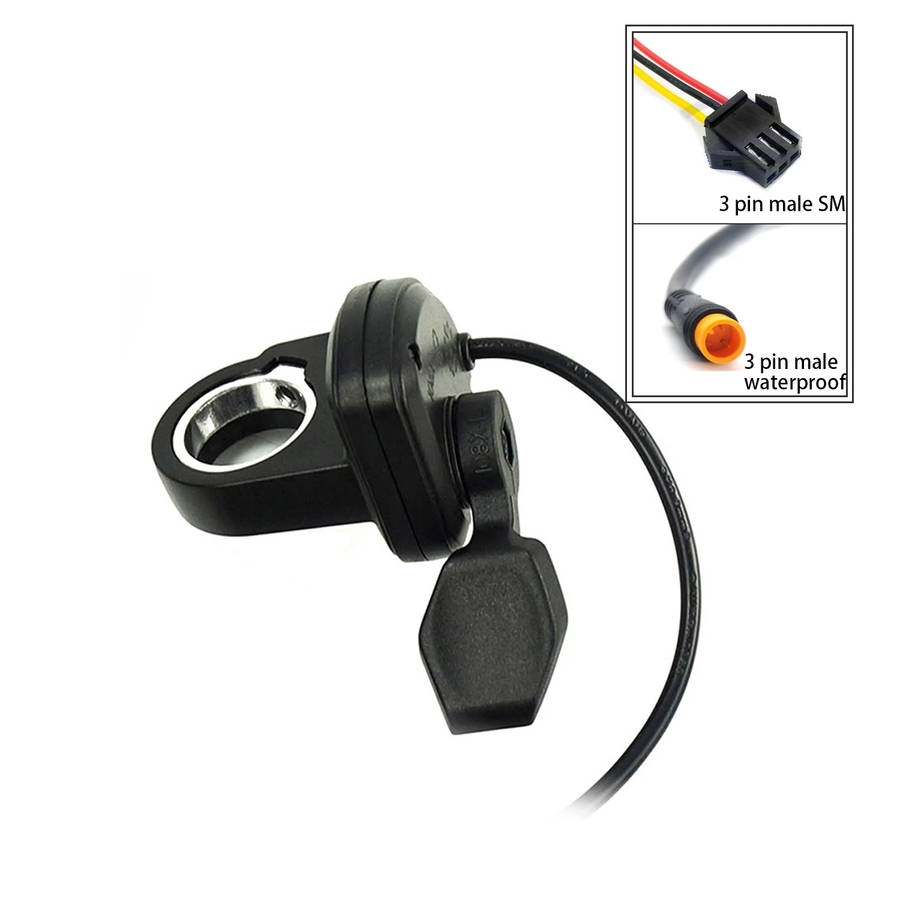

ATTENTION: 1.Waterproof connector can`t connect to the controller directly,need a 1T4 Bus-cable. 2.For WP connector,we cannot guarantee your WP connector is completely match with our WP connector. According to our previous customers` feedback,5% customers have met the problem of WP joints not working,this problem is caused by signal line order. If your thumb throttle cannot work,please contact me ,we can provide a video for you to solve it.
Package Included:

1 X	Thumb throttle
