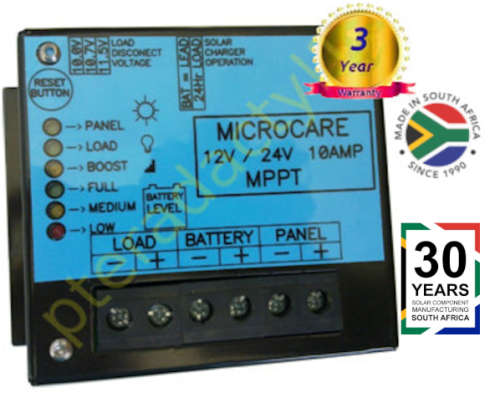

10A 12-24V SOLAR LED MPPT Charge controller regulator with Auto plus Load Shed by MICROCARE

Why you should consider buying this product:
Proudly South African with 30 years of manufacturing with many units having been sold locally and internationally.                                                                                                                            Service and repair of the products at a minimum cost due to local manufacture.

Overview:
This MICROCARE MPPT REGULATOR is designed to interface between the SOLAR PANEL, the BATTERIES and the
LOAD. This TRACKER will always find the optimum power point of the solar panel system to ensure that maximum
power is extracted from the solar panel and put into the batteries. Using this system up to 30% more power can be
extracted from the solar panel than using shunt or series pass regulators.
It is also able to charge batteries of a lower voltage than the solar panel. By means of LEDS it will show the status of the system. It also incorporates various charge modes which will automatically increase the charge level to the batteries when first starting up or if the battery voltage falls below the minimum volts.
It will read the nominal battery voltage. This unit is designed to run on a 12/24 volt battery set. It will then read the solar panel voltage and automatically find the optimum power point. The charging, battery values and boost modes are then automatically adjusted. Via links the load voltage disconnect can be selected, whether the battery is lead acid or sealed, and whether the unit
operates as a normal load shedder or as a day/night switch.



Features:

 Automatically measures the battery voltage and then sets up the charge parameters (12v-24v).

Operates the Solar Panels at the maximum efficiency.
Charges batteries by setting up the best power point of the solar panels.
Can improve power extracted from the solar panels by 30% over normal shunt/series pass regulators.
LED Display gives status notification.
Charges batteries by setting up the best power point of the solar panels.
Temperature controlled Cooling Fan.
Selectable low voltage disconnect ( 12v system - 10v, 10,7v, 11,5v and 24v system 20.0v, 21,4v, 23.0v).
24 hour load or Day/Night mode (Programmable: Dusk to Dawn - 1/2 hour, 1 hour or 1,5 hour delays).
Protection system: Lighting protection, reverse polarity panel/battery, internal fuse.
Maximum Current 10 Amps.
10 amp Load controller.







Order Lead Time: Normally in stock at Microcare and orders take approx. 48 hours from receipt of your payment working days .

Should this MPPT be out of stock it will be built and that will take 5 - 7 working days before order will be ready for shipping.

Warranty: See warranty tab for details.
