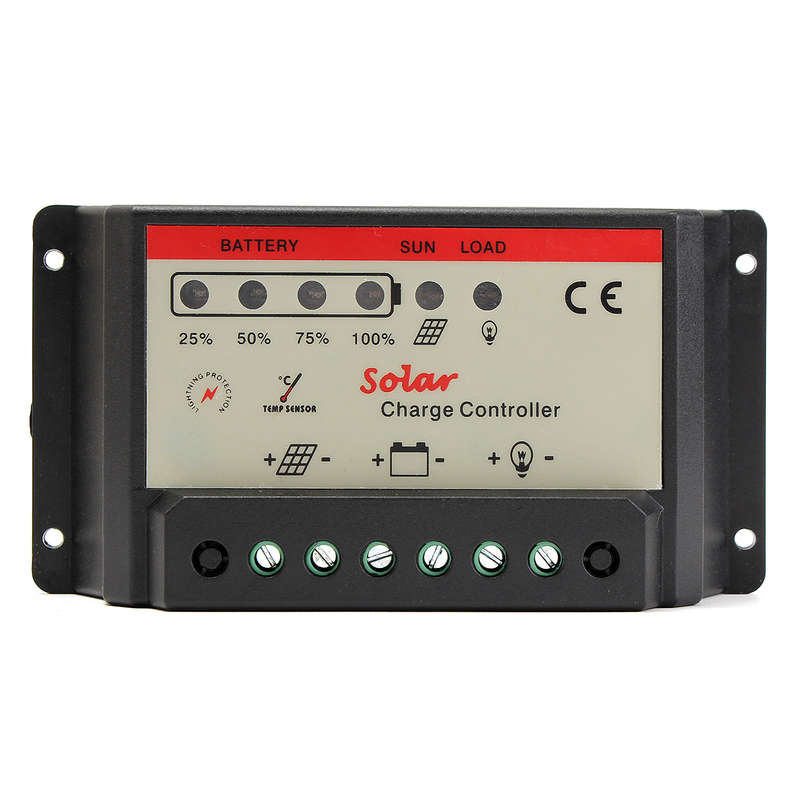

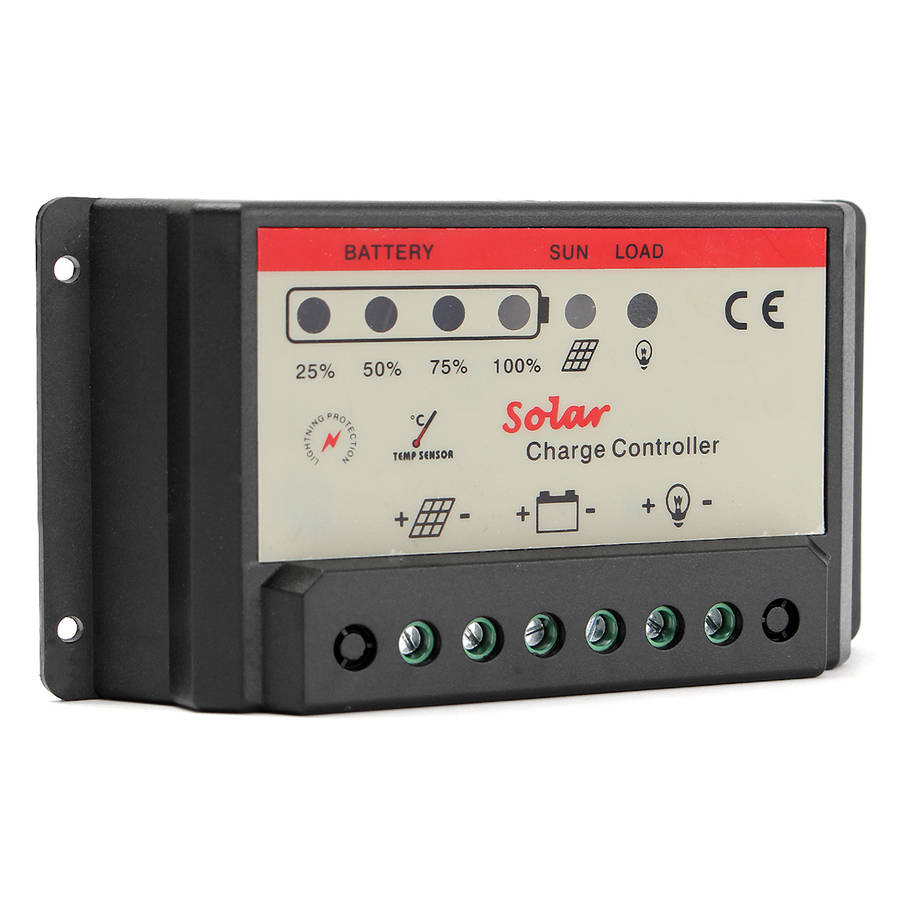

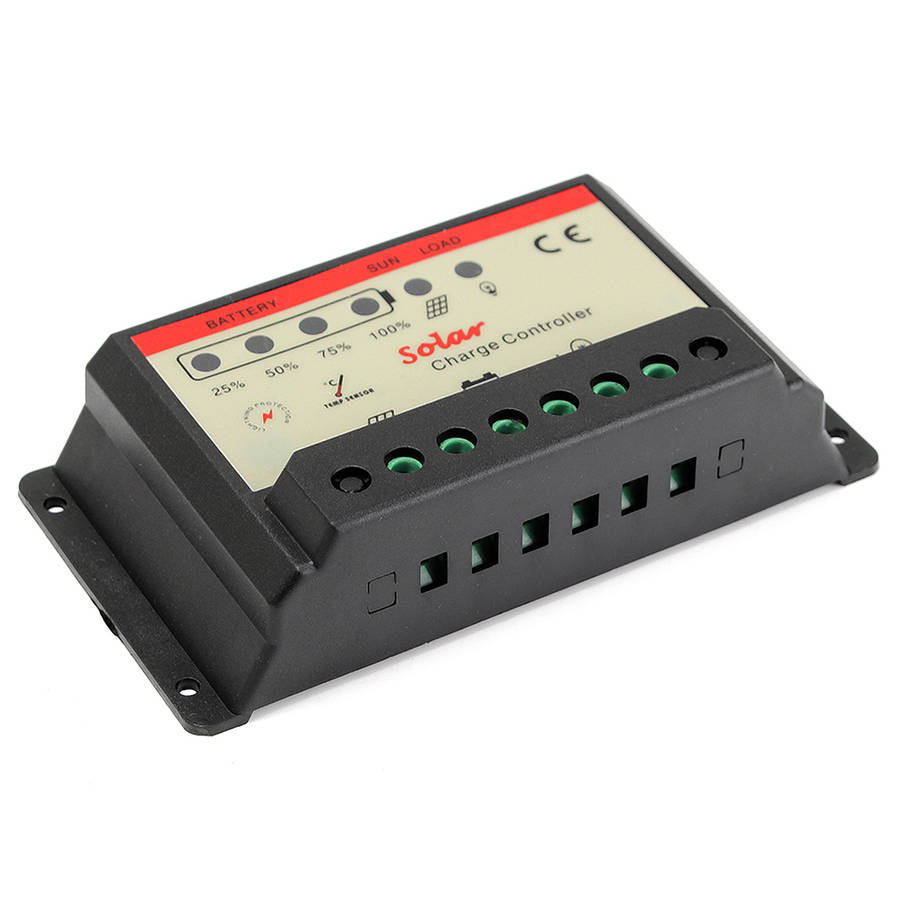

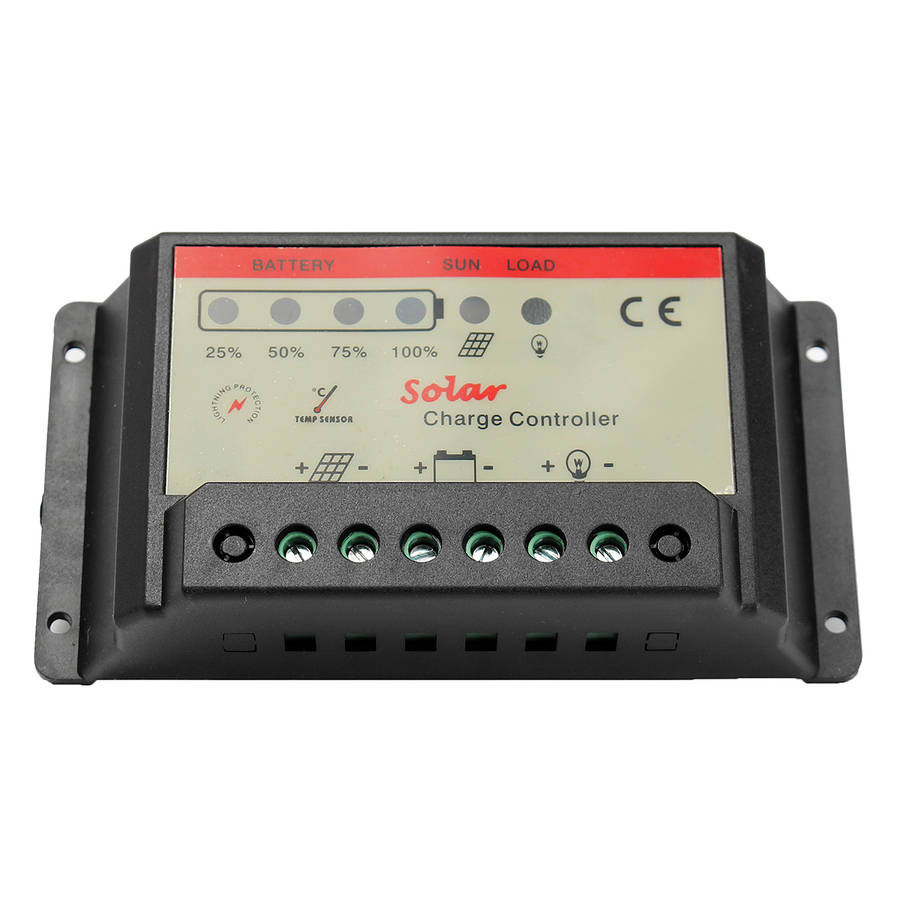

10A 12V/24V Auto Adapt PWM Solar Charger Controller Battery Charging Regulator





Build-in industrial mirco controller
Intuitive 25%-100% power indicator
Fully 4-stage PWM charge management
Reverse current protection, low heat production
Build-in short-circuit protection, open-circuit protection,reverse protection, over-load protection





Batt voltage: 12V/24V Auto Adapt
Current: 20A
Max solar input: 41V
Charge drop: <0.2V
Disharge drop: <0.25V
Equalization: 14.6V
Bulk: 14.4V
Acceptance: 14.2V PWM
Float: 13.8V
Charge reconnect: 13V
Disharge stop: 10.8V
Disharge reconnect: 12.6V
Self-consume: <10mA
Voltage of open light: Solar panel 8V(Light lights delay)
Voltage of close light: Solar panel 8V(Light off delay)
Temperature compensation: N/C
Operating temperature: -35¿¿¿~60¿¿¿
Size: 134x70x31mm(Length,Height,Thickness)



Note:
1.All red color voltage x2 while using 24V system.
2.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect  the actual color of the item. Thank you!




1 x Solar Charger Controller
1 x User Manual
