10A 12V/24V Auto PWM Solar Charger Controller Battery Charging Regulator
Features:
Rated charging current: 10A
Rated load current: 10A
System voltage: 12V/24V Auto Adapt
Short circuit protection: YES
No-load loss: <5mA
Charging circuit voltage drop: ≤0.2V
Discharge circuit voltage drop: ≤0.1V
Overvoltage protection: 15/30V
Working temperature: -35¿¿¿~55¿¿¿
Direct charging voltage: 14.2V
Float charging voltage: 13.6V
Temperature compensation: -3mv/¿¿¿/2V
Undervoltage voltage: According to the load automatically adjust
Over discharge return voltage: 12.7-12.9V
Charge control mode: PWM pulse width modulation mode
Without light control timer, 24 hours output.
Reverse current protection, low heat production.
With temperature compensation, over voltage protection, low voltage protection, three sections of PWM charging, etc.

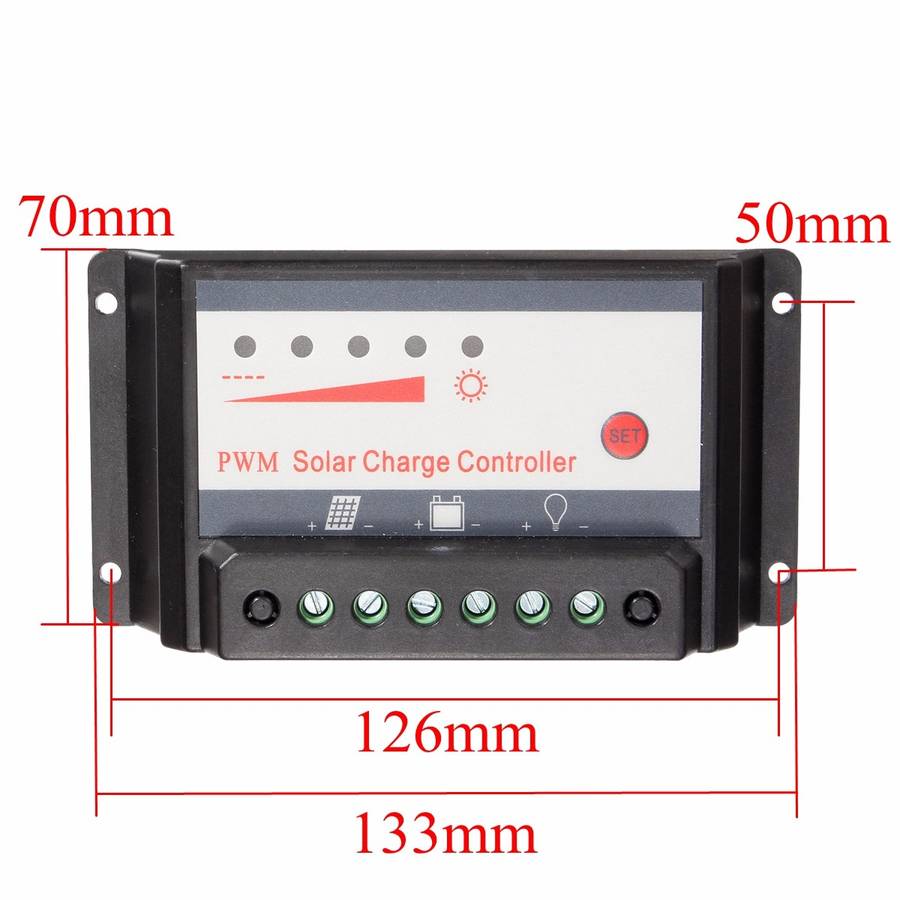

Size: 133 x 70 x 30mm(Length,Height,Thickness)
Package included:
1 x Solar Charger Controller

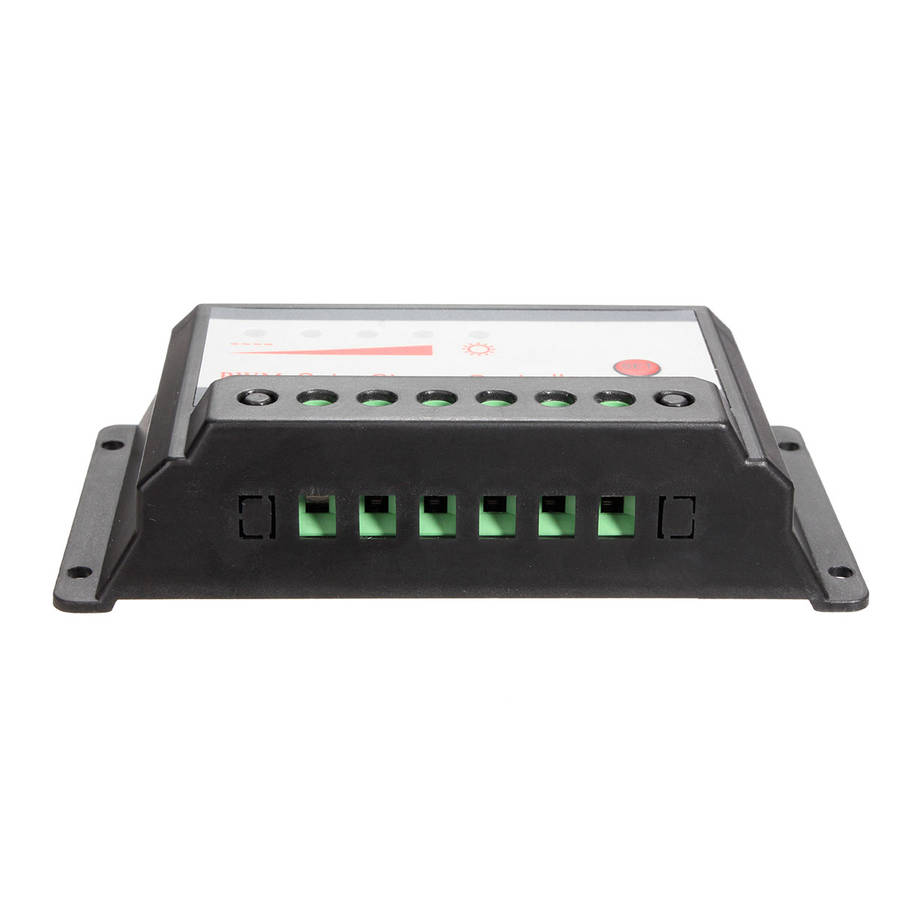

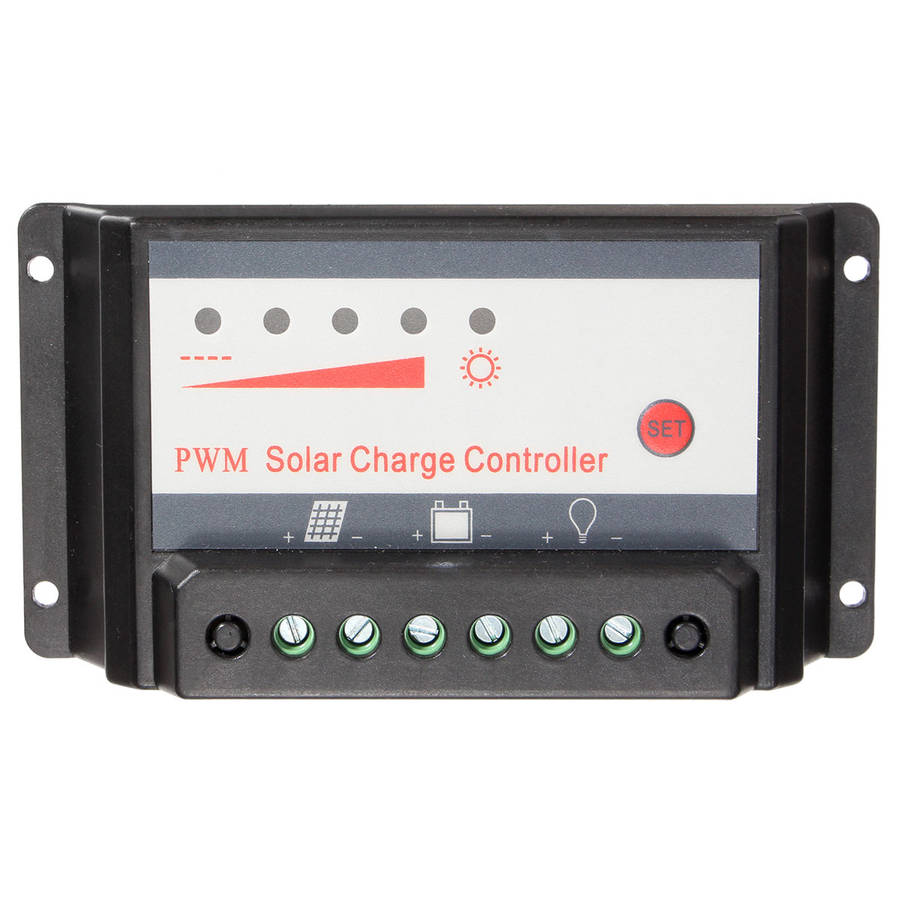

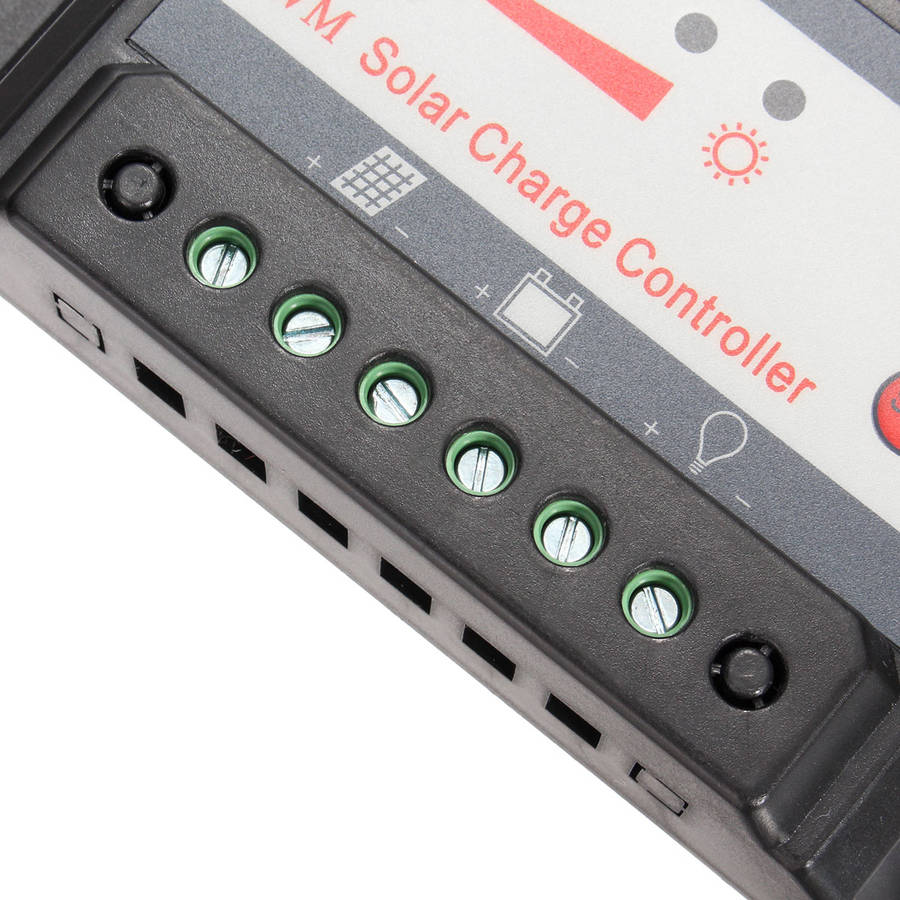

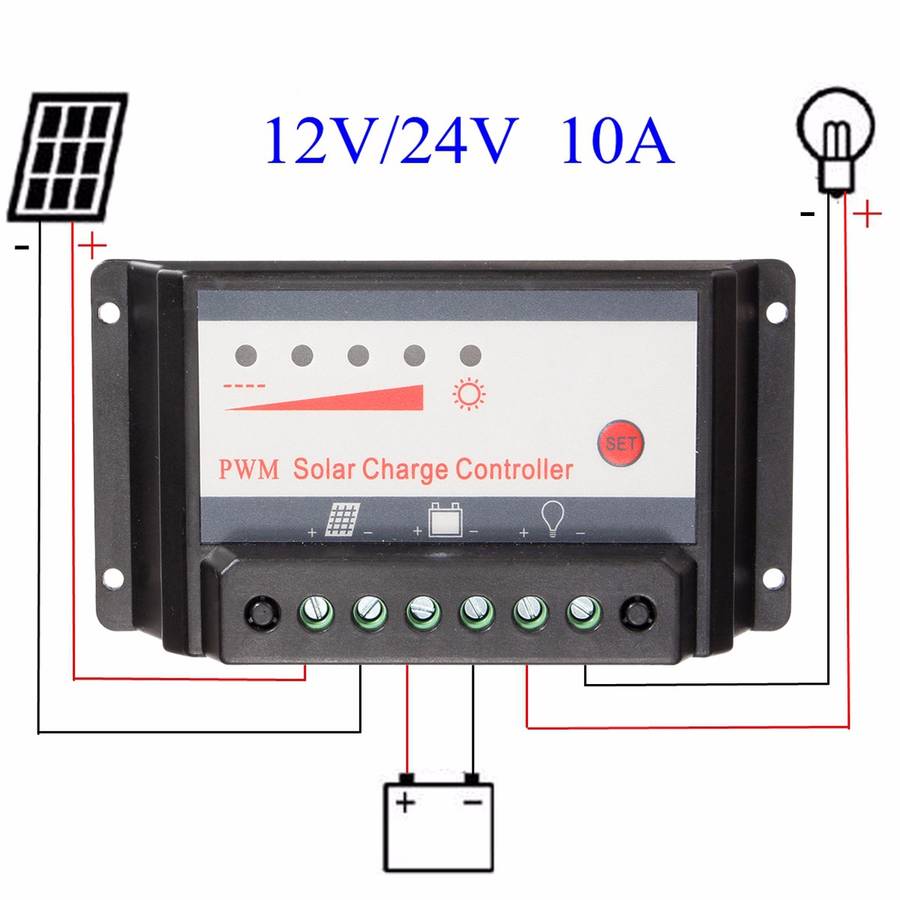

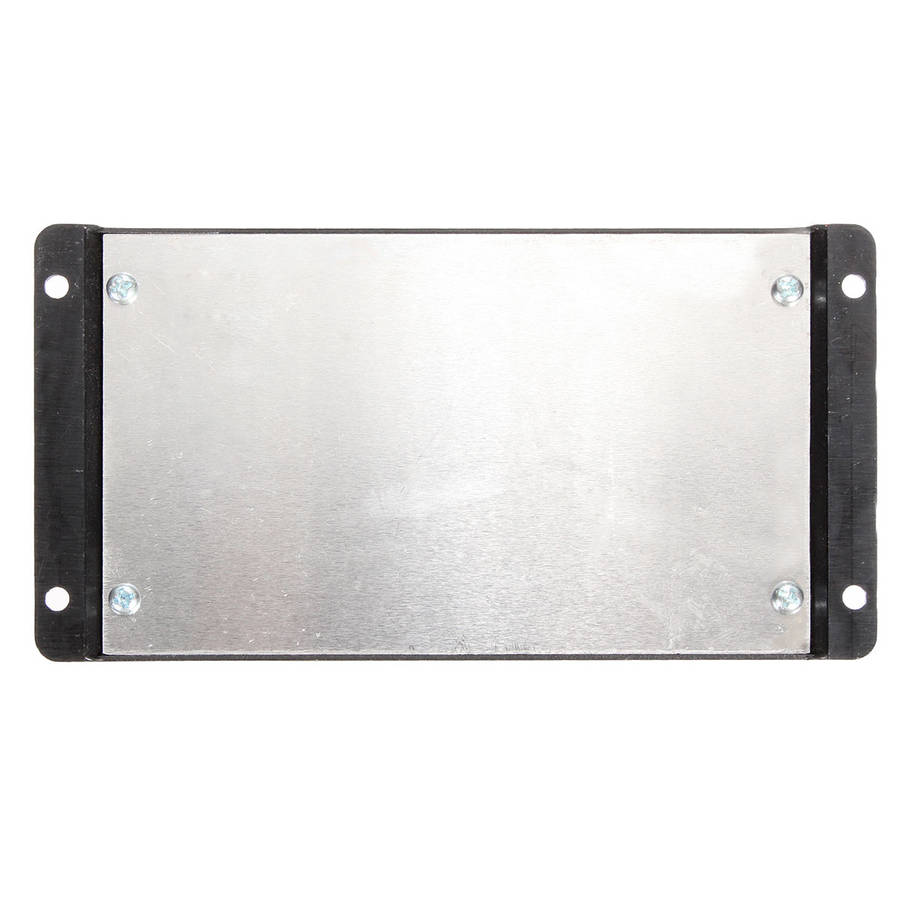

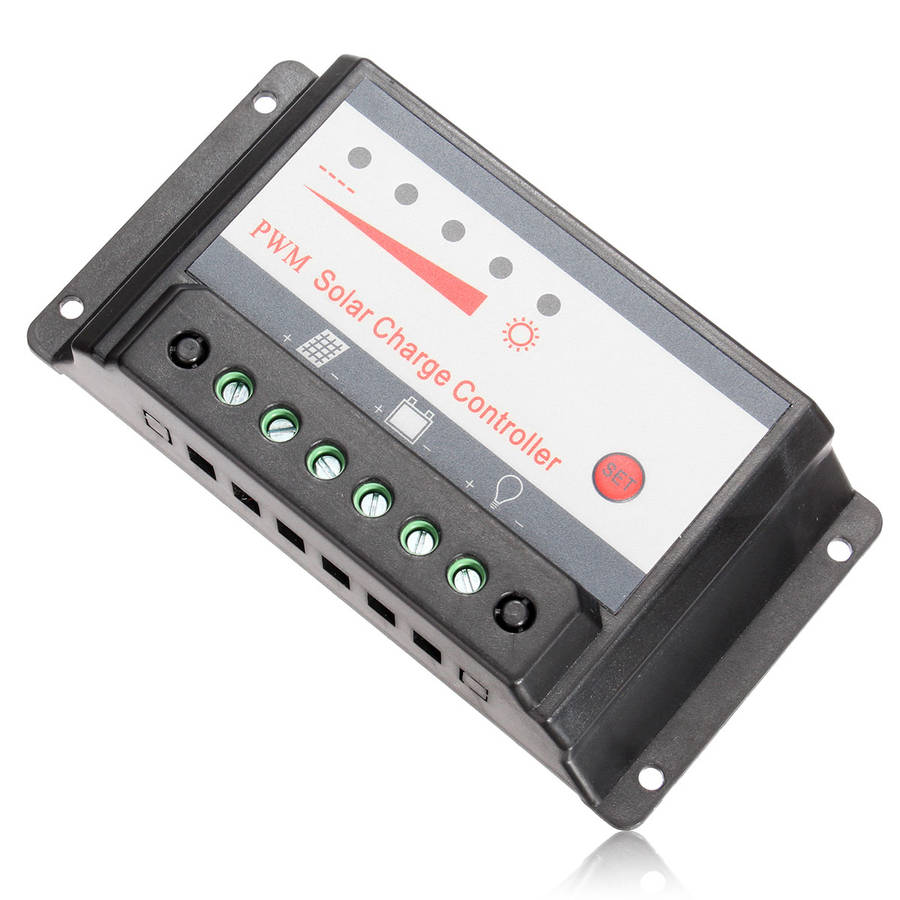

Details pictures:
