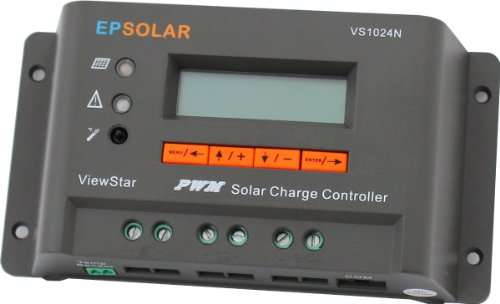

10A 12V/24V solar charge controller / regulator with lCD display and advanced control features for s

The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance of your battery and extends its lifetime. PWM technology can also recover some lost battery capacity.

The unit features a full set of electronic protection functions such as automatic cut off to prevent over-charging and deep discharge, over heating, over load, short circuit and reverse polarity protection.

Other features include lCD display, lED indicators, temperature sensor, back-up battery, multilevel menu operation and friendly interface with 4 buttons.

Controller can work with sealed, gel and flooded batteries with different charging parameters for each battery type. It also allows users to set battery capacity (in Ah) for more efficient charging (simpler controllers can only work with default capacity).

Specifications:

- Auto 12V/24V selection
- Adjustable charging / load work parameters
- Maximum PV input voltage 48V
- 3 pairs of terminals (input, battery, output)
- Temperature sensor for automatic compensation (-30mV/C/12V)
- Full electronic protection
- Self-consumption: 44mA max
- Working temperature: -20C to +55C
- Terminals for wire up to 6mm2
- Size: 16.5 x 8.5 x 4.0 cm
- Weight: 260 g

The product comes with a detailed installation manual.

This product is covered by 1 year warranty.

Please contact us if you need our free advice regarding this item.

Please note that because this product is an international product, the Voltage might be different to SA's Voltage and a transformer might be needed to operate the device.
