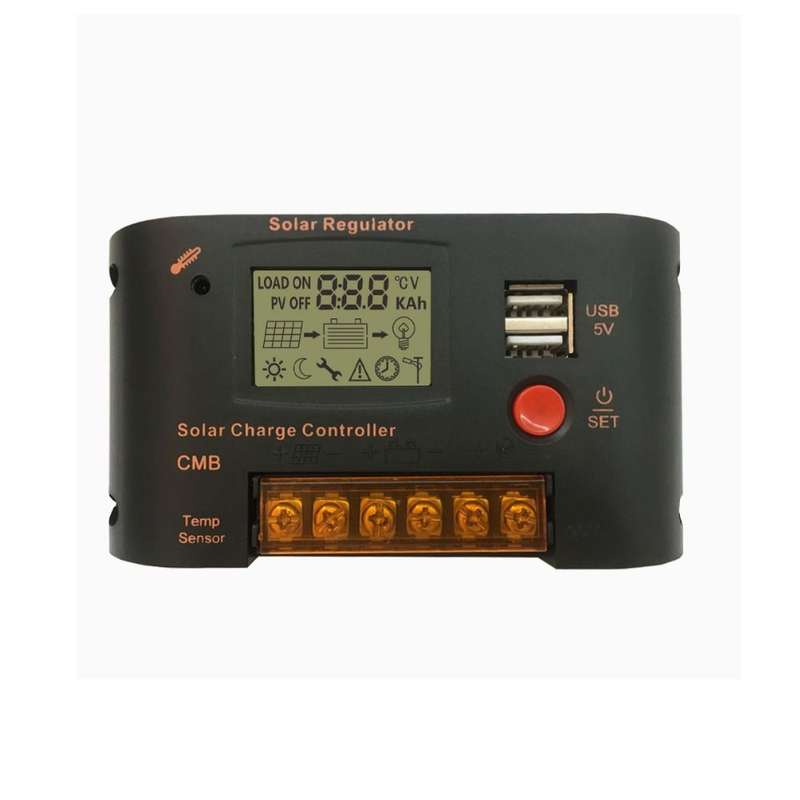

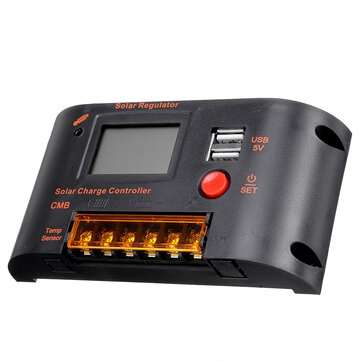

10A/20A PWM Solar Charger Controller 12V 24V Auto LCD Display Dual USB 5V 2A Outpu... (CURRENT: 20A)

SELECTED OPTION:
CURRENT: 20A

Overview:

The controller is equipped with PV-Power technology, which can be activated at either end of the solar panel or battery. When battery is under voltage, the solar panel also can charge; the product can be used directly as a charger.

Features:

aDisplay interface automatically switches aCan set daytime start, night off mode aSystem voltage automatic identification aIntelligent PWM charging method aBattery undervoltage protection aLight control and time control mode aLead acid, lithium battery optional aReverse battery protection aTemperature compensation function aDual USB 5V output aOverload, short circuit protection

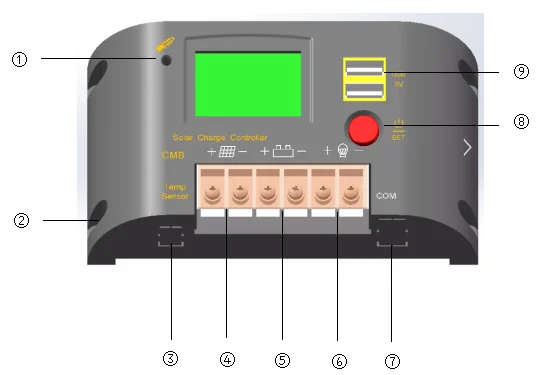

NO.	Name	NO.	Name
a	Built-in temperature sensor	a	Load interface
a	Mounting locating holes	a|	RS485 communication interface
a	External temperature sensor interface	a	Switch / setting button
a	Photovoltaic array interface	a	USB 5V output interface
a	Battery interface

Connection:

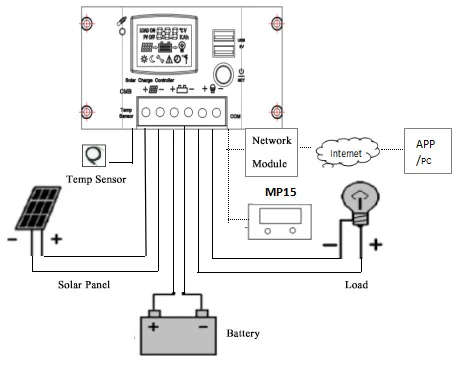

As picture, the connection of solar energy, battery, load, temperature probe, MP15 (reserved), please pay attention to the connection, do not connect wrong, reverse.

Note:1.External temperature sensor, remote display unit, network connection module are optional.

2.Temp Sensor :

External temperature sensor probe interface: When the external temperature sensor is not connected, the system default value is the built-in temperature sensor; when the external temperature sensor is connected, the internal temperature sensor is automatically disconnected.

Specifications:

Model		CMB-3210W	CMB-3220W
Maximum charging current		10A	20A
Maximum discharge current		20A	30A
Maximum photovoltaic panel withstand voltage	a55V
USB output	5V 2A
Feature	No-load loss : a10mA;Temperature compensation : -3mV/cell/a
Operating temperature	-20a - 60a

Package Included: 1 x Solar Controller 1 x Users Manual
