10A MPPT+ PWM charging mode Solar Charge Controller with LCD Display
Sold

10A MPPT+ PWM charging mode Solar Charge Controller with LCD Display

New 1 was available
R564.32
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
attoplex8
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
1 ratings
Product code
MPPT10A
Bob Shop ID
242612888

Product summary

This is a 10A solar charge controller compatible with MPPT and PWM. It not only has efficient MPPT controller charging features to automatically track the maximum power point but also has a 10%-30% higher efficiency than most common controllers. The standby energy saving feature has a standby power consumption of only 10mA-15mA.  The LCD and function buttons are added features to allow easy access to voltage and current monitoring, and allow some parameters to be changed. See complete list of parameters that can be changed below.


Product introduction

  • LCD screen display
  • Battery reverse discharge protection
  • Easy operation interface
  • Battery reverse polarity protection
  • MPPT+ PWM charging mode
  • Battery under voltage protection
  • Parameter user can reset Overload
  • Short-circuit protection
  • Automatic temperature compensation function
  • A key to restore the factory settings
  • A key to open and close the load

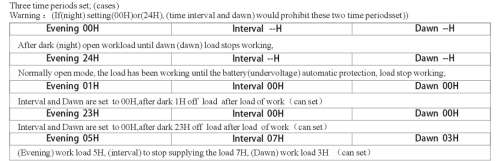

Dual Timer function



Data Sheet

Parameters / Model:T10
Maximum power current:12A
Installation  Line mm2:4mm2
Installation Line(AWG):10(AWG)
Weight:280g
Dimensions:143×89×46mm
System load loss:13mA
Loop Back:100mV

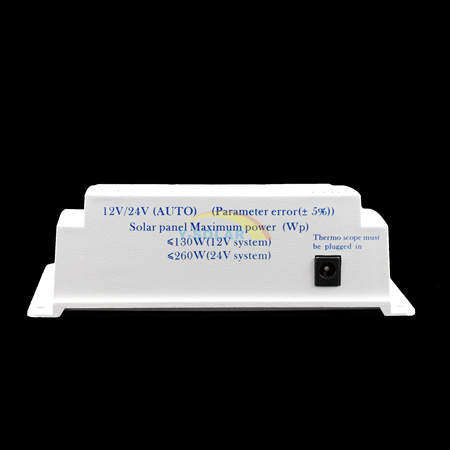

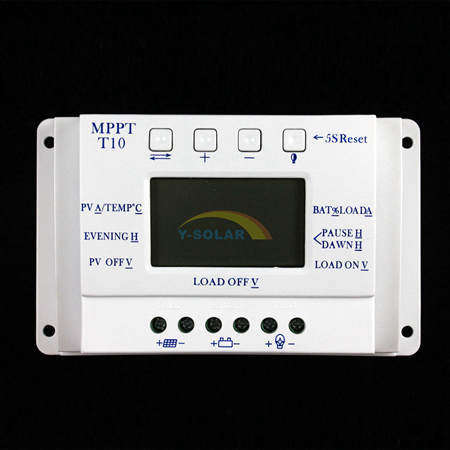

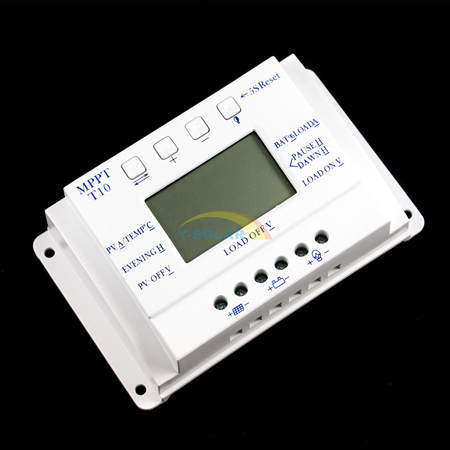

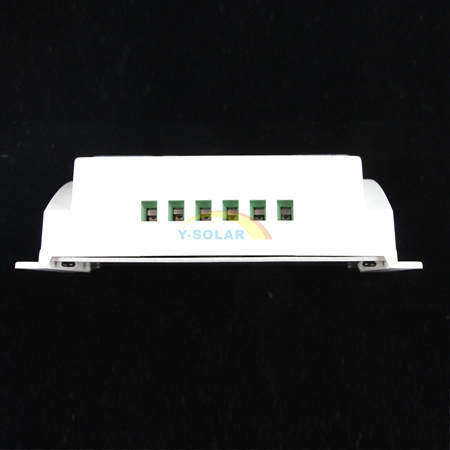

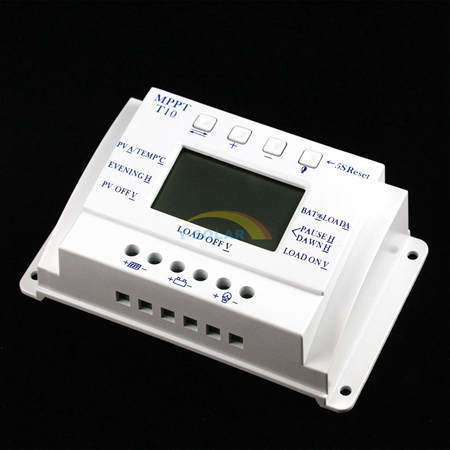

Product images

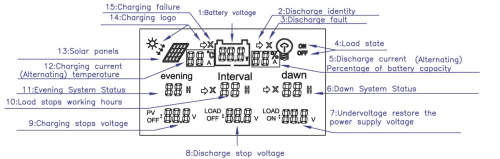

LCD display

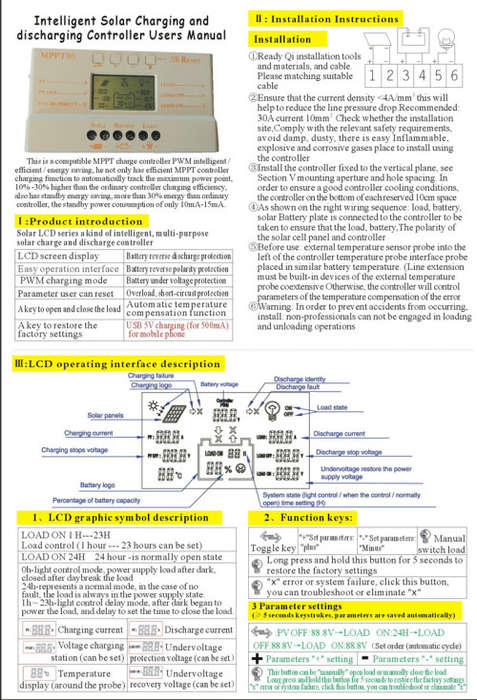

Product manual
