Name: 10A PWM SOLAR CHARGE CONTROLLER 12/24V
SKU: 10A 001
Price: 129.00 ZAR
Availability: SoldOut
Rating: 5 (3 reviews)

10A PWM SOLAR CHARGE CONTROLLER 12/24V

500 were available / new

Indicative market price: R299.00

R129.00

57% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

SECURITY AND MORE13299

98.16 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Replacement We will replace if faulty on arrival.T & C s apply

Money-Back Guarantee: 10 Days: We will refund your money if you are not 100% satisfied. Terms and conditions apply*

Get it now, pay later

Condition

New

Location

South Africa

Type

Controllers

Customer ratings:

3 ratings

Product code

10A 001

Bob Shop ID

319321211

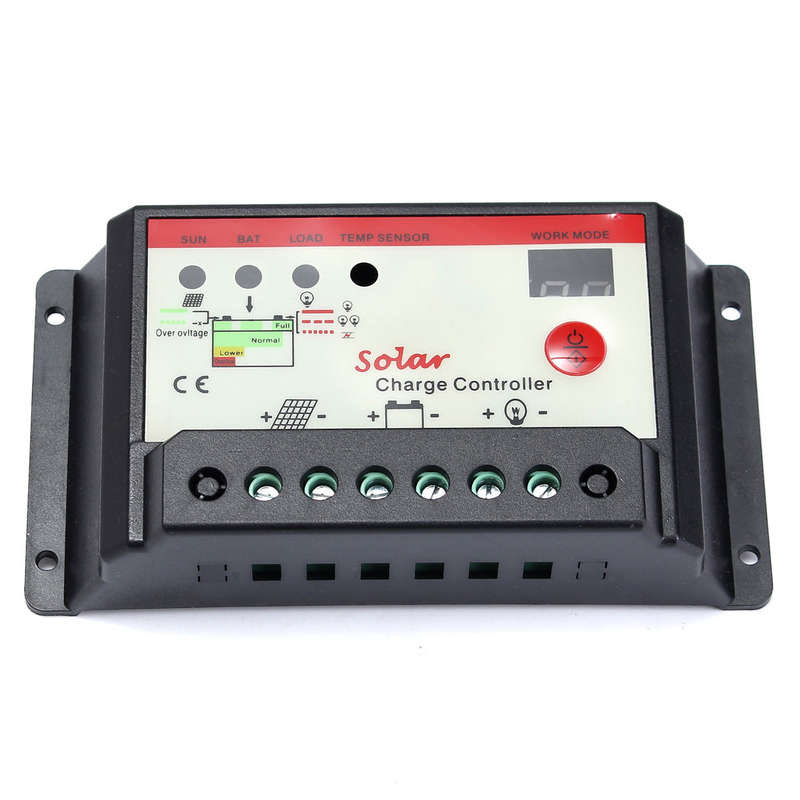

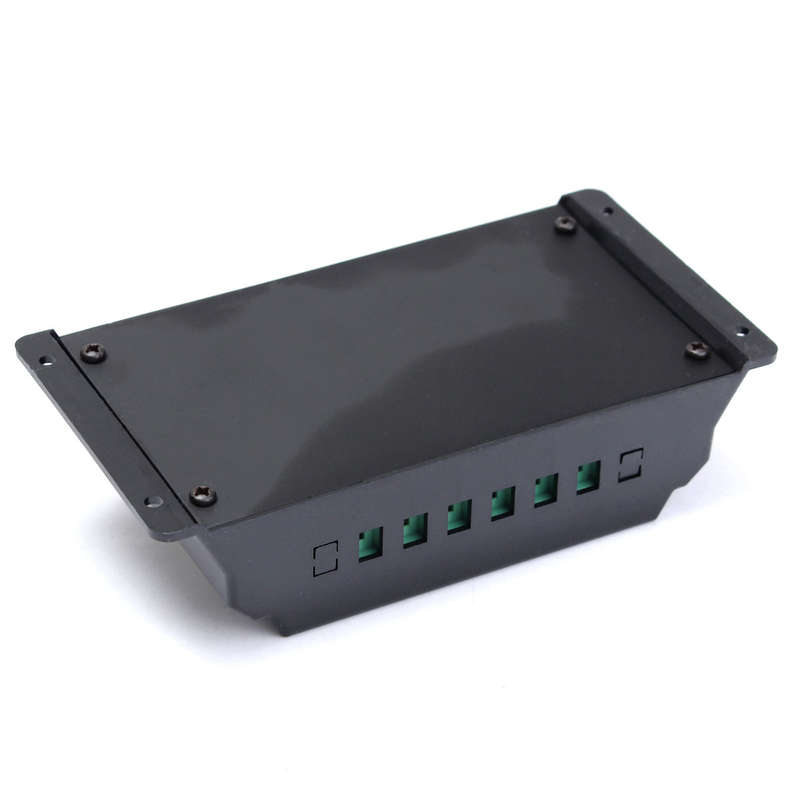

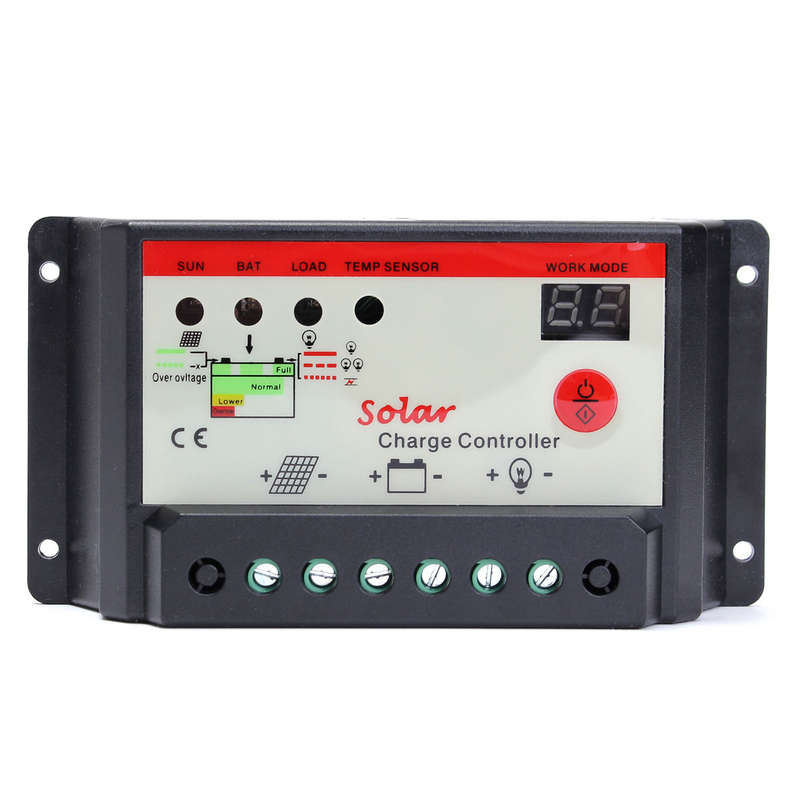

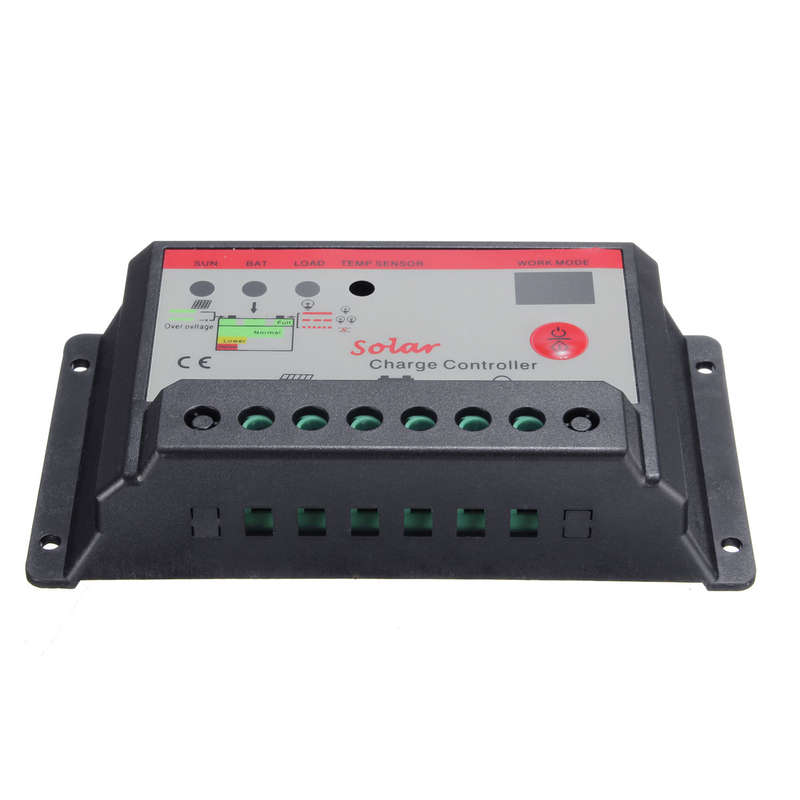

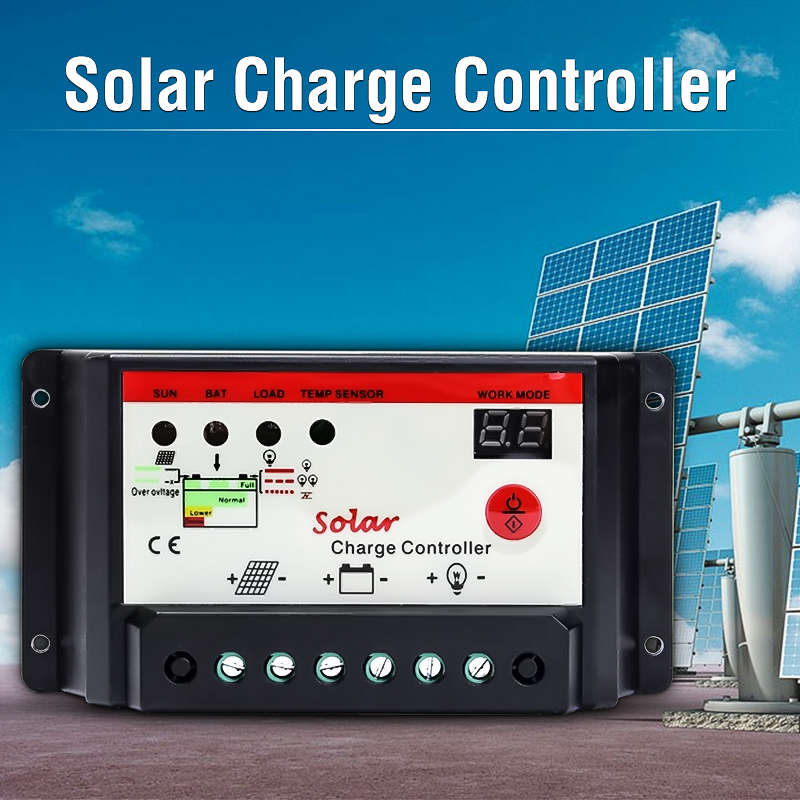

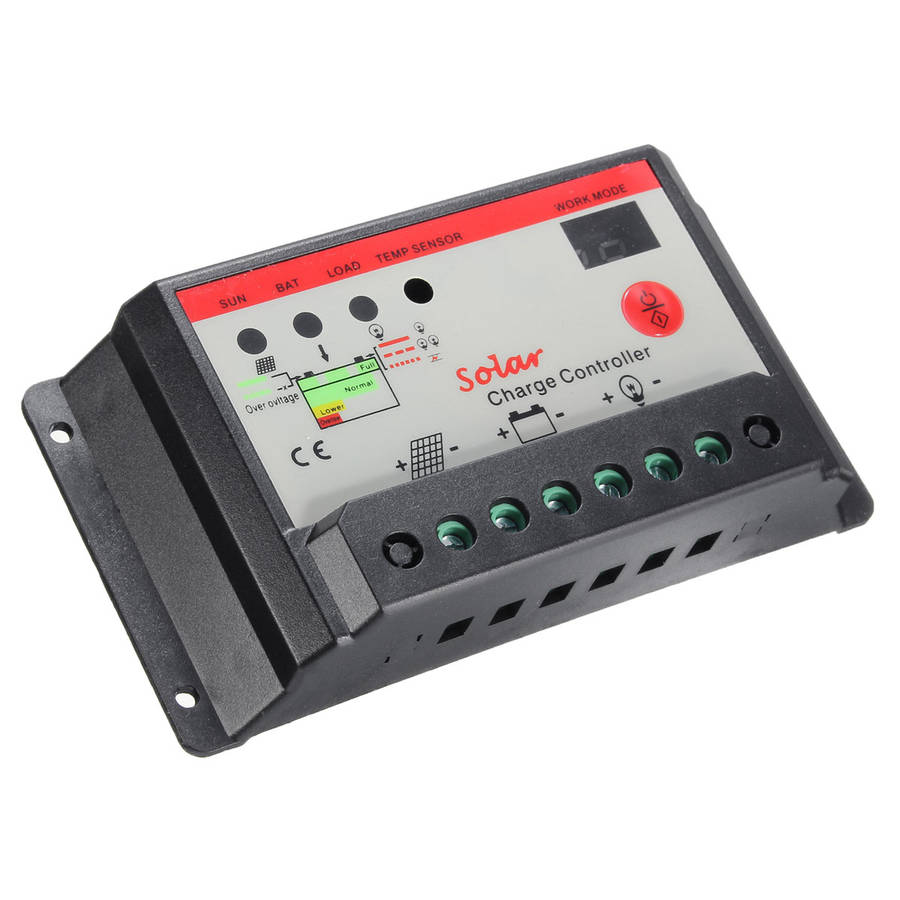

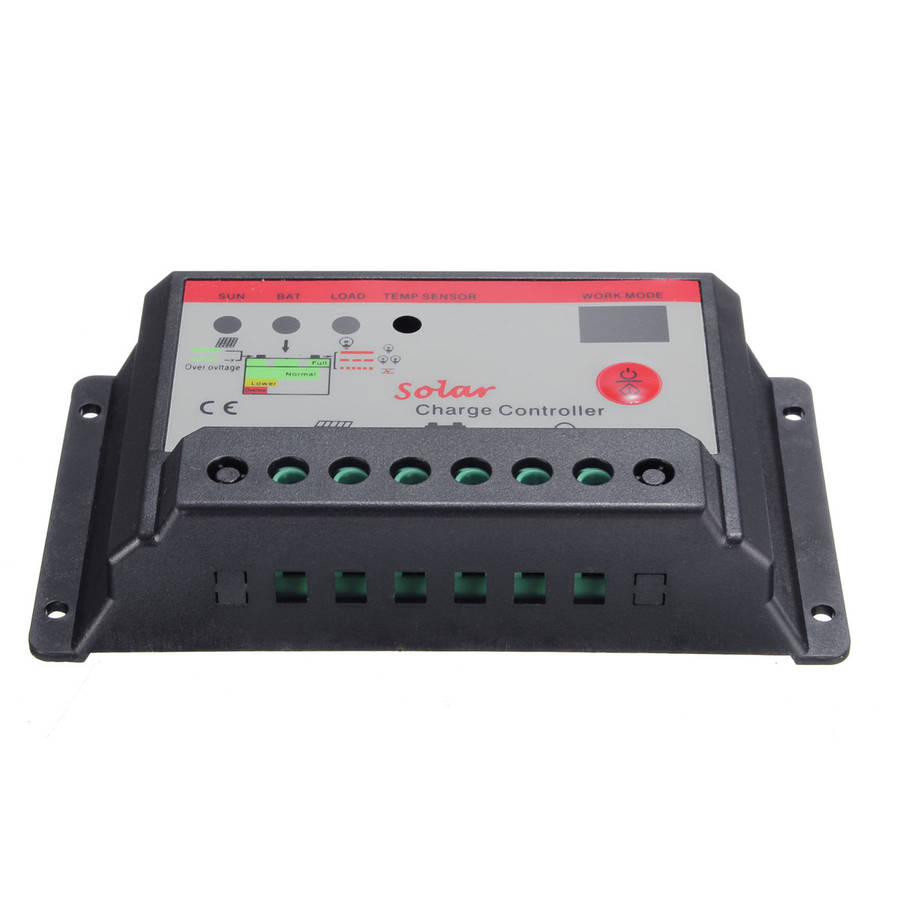

10A PWM SOLAR CHARGE CONTROLLER 12/24V

Description:

10A 12V/24V PWM Solar Charge Regulator Solar Panel Battery Controller 240W/480W

Features:

Build-in industrial micro controller.
One-key setting, digital display.
Fully 4-stage PWM Charge management.

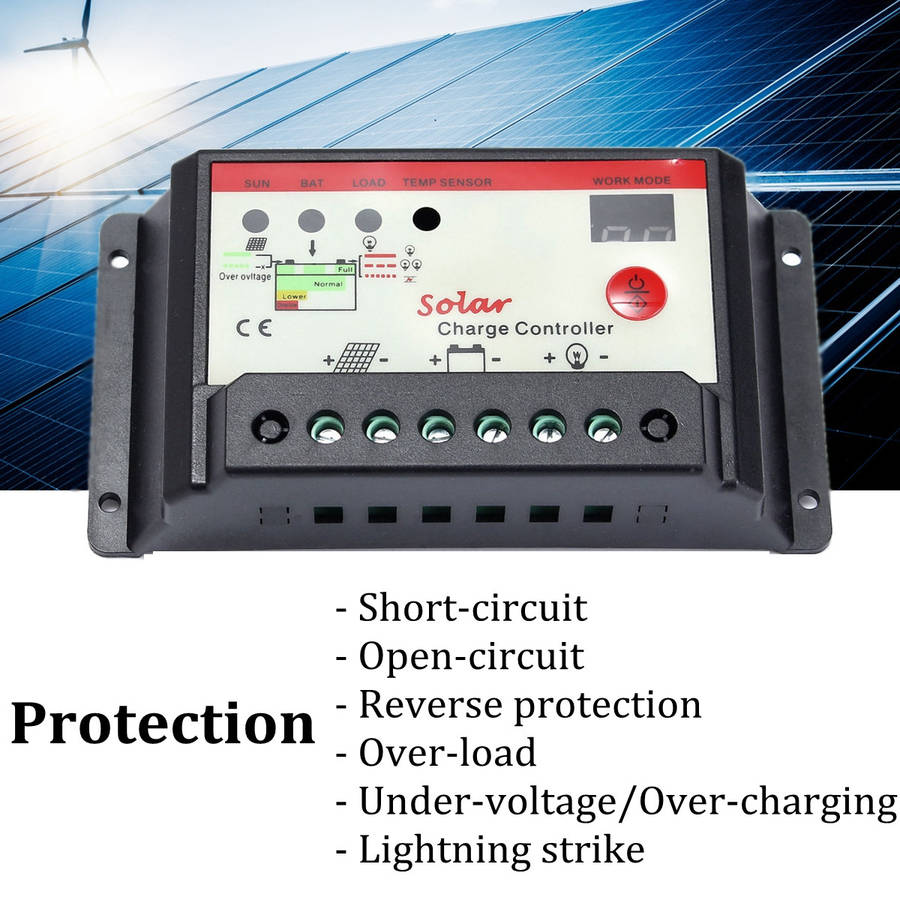

Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
Automatically manage the working of solar panel and battery in solar system.

Under-voltage and over-charging protection. Protection from lightning strike.
Prolong the battery life cycle and keep the load work well.
This controller can charge and discharge at the same time. It has perfect SOC function, control charge current, and supply power to the loads.
The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.

Specification:

Battery Voltage: 12V/24V auto adapt
Current: 10A
Max Solar input: 41V
Charge drop: <0.2v
Discharge drop: <0.25v
Equalization: 14.6v/12v system, 29v/24v system
Bulk: 14.4v/12v system, 28.8v/24v system
Acceptance: 14.2v PWM/12v system, 28.4v PWM/24v system
Float: 13.8v/12v system, 27.6v/24v system
Charge reconnect: 13.8v/12v system, 27.6v/24v system
Discharge stop: 10.8v/12v system, 21.6v/24v system
Discharge reconnect: 12.6v/12v system, 25.2v/24v system
Self-consume: <10mA
Voltage of open light: Solar panel 8v(Light on delay 12v system), 16v/24v system
Voltage of close light: Solar panel 8v(Light off delay 12v system), 16v/24v system
Temperature compensation: N/C
Operating temperature: -35¿¿¿ -- +60¿¿¿

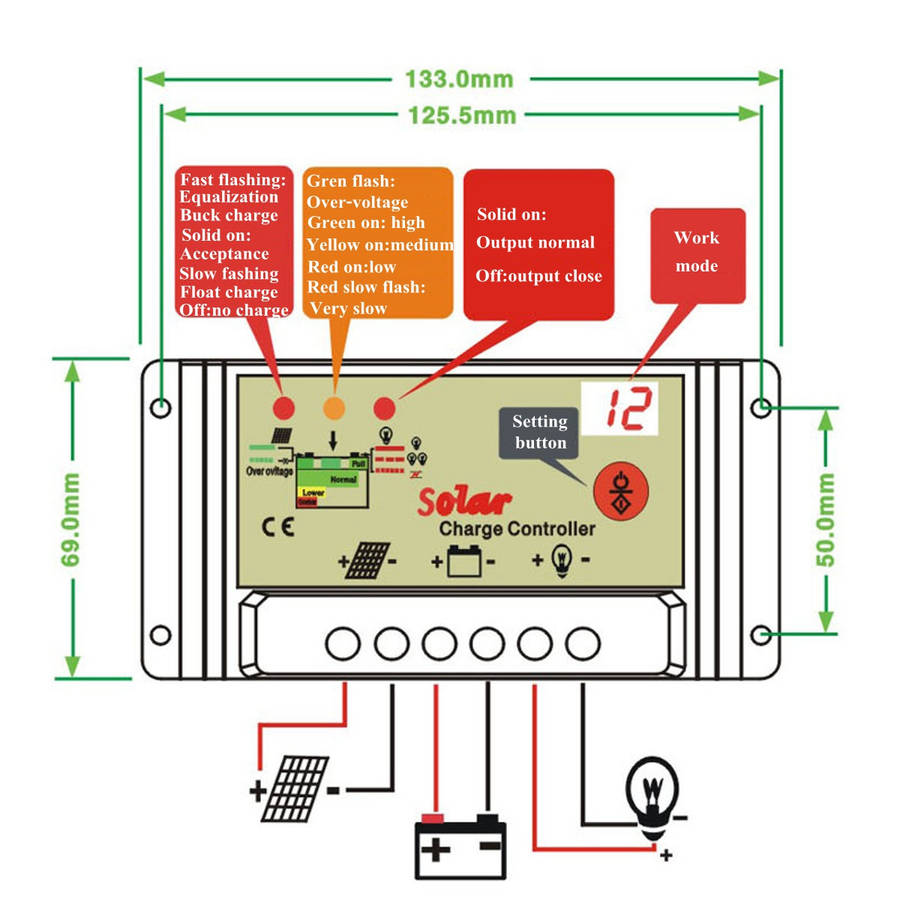

Size/Weight: 133*70x35mm/150g
