10dBi High-Gain Yagi Antenna Booster for your Wireless Gateway 3G/4G/WCDMA Router..!

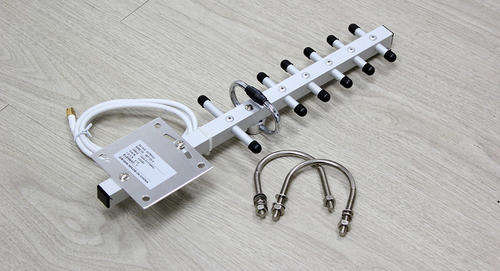

This is a sleek and compact yet potent Yagi antenna design, robust and weatherproof, allowing you to utilize it either indoors or outdoors to enhance your weak 3G/4G/WCDMA/GSM signal on your Wireless Home Gateway Router with built-in modem and SMA female connector interface for external antenna connectivity..!
It comes with a 5m or 10m low-loss coaxial cable that terminates in a SMA male connector to connect directly to your WiFi Gateway Router to strengthen the signal. It comes with a 5m or 10m low-loss coaxial cable that connects to the adapter to enable connectivity between the antenna and your device to strengthen the signal. Also included is two U-Bolt pole mounting attachments.
SMA male connector above connects directly to your Home Wireless Gateway/Router with built-in modem via the gold SMA female connector located at the back of your device. Then depending on your model, flick the internal/external switch to "external" for the signal to be enhanced through the antenna..!
FEATURES:
LIGHTWEIGHT & WEATHERPROOF
10dBi HIGH GAIN
LOW VSWR
Electrical
Antenna Gain: 10dBi
Transmission Frequency: 1920-2170MHz
Input Impedence: 560Ohms
Horizontal beam width: 36 degree
Vertical beam width: 48 degree
Bandwidth: 460MHz
VSWR ≤ 2.0
Mounting
Pole/Wall
Dimensions
Cable Length: 5m or 10m
Depth: 43 mm
Height: 350 mm
Width: 108 mm
Product Weight: 267 g
