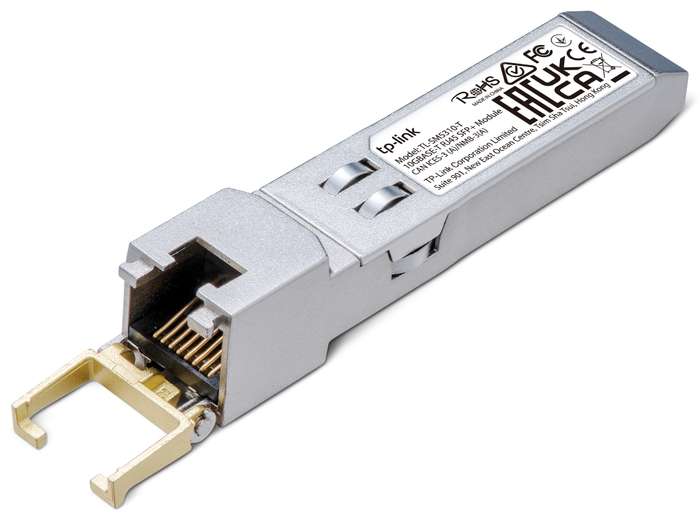

10G BASE-T RJ45 SFP+ Module

Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
Transmit data up to 30mx at 10 Gbps (UTP cat.6a or above)
Support DDM (Temperature and Voltage)
Hot-Pluggable SFP+ Footprint Features
Support TX Disable function
Commercial Product Operating Temperature Range: 0-70 C
Fully Metallic Enclosure for Low EMI

Specifications:

Hardware Features
- Hot Swappable: Yes

Media Converter & Module
- Dimensions (WxDxH): 2.7x0.5x0.5 in (67.4x13.75x13.8 mm)

Transceiver
- Standards and Protocols: IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an
- Power Supply: 3.3V
- Max. Cable Length:
- 100BASE-TX: UTP cat. 5 or above (max. 100m)
- 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
- 10GBASE-T: UTP cat.6a or above (max. 30m)
- Data Rate: 10.3 Gbps
- Port Type: 1× 10G RJ45 Port
- Safety & Emission: FCC, CE, RoHS

Environment
- Operating Temperature: 0-70 (32-158 )
- Storage Temperature: -40-85 (-40-185 )

What's in the box
10G BASE-T RJ45 SFP+ Module
Installation Guide
