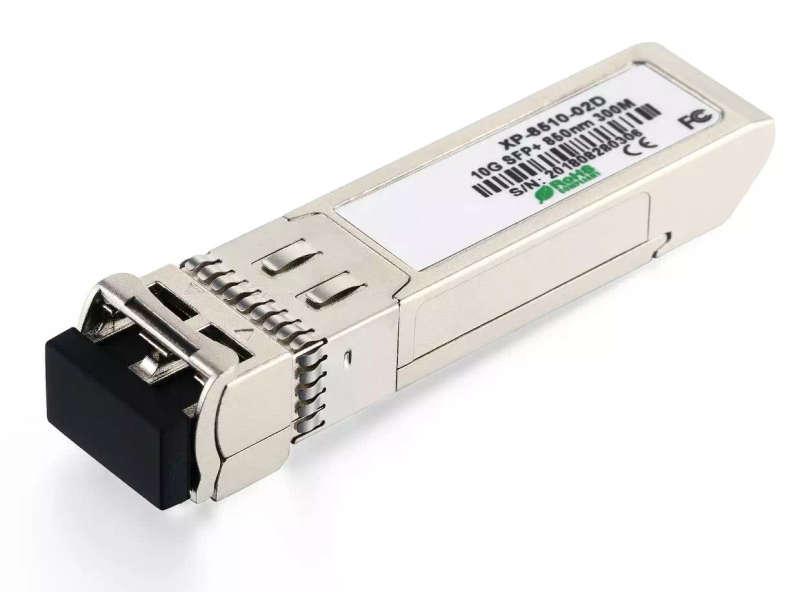

10Gbps Fiber SFP+ Module | Multi Mode Dual LC Transceiver | up to 300 Meter | Multiple Network Switch Compatible

These Fiber SFP+ modules is 100% compatible with generic sfp+ coding brands such as Tenda, Hikvision, TPLink, TrendNet, Netgear, Cudy, Ubiquiti / Unifi and generic OEM brands.

This SFP+ Module is Hot-Pluggable and it can be inserted into a Network or POE Network Switch without the need to power-down the switch.

Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.

Product Features

• Hot-Pluggable

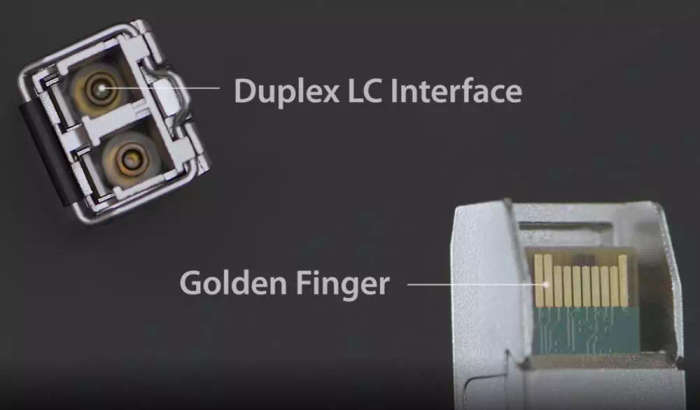

• Duplex LC receptacle
• 850nm VCSEL transmitter, PIN photo-detector
• Capable of over 300m transmission on OM3 MMF (Multimode Fiber) and 400m on OM4 MMF
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
• Power Supply :+3.3V
• Power consumption<1W
• Temperature Range: 0~ +70°C
• RoHS compliant

Applications

• 10GBASE-SR/SW Ethernet
• SONET OC-192&SDH STM-64
• OTN ITU-T G.709
• 10X Fibre Channel
• LTE systems
• Other Optical links

Example of Dual LC Fiber SFP Installation

Standard

• Compliant with SFF-8472 SFP+ MSA.
• Compliant to SFP+ SFF-8431 and SFF-8432.
• Compliant to 802.3ae 10GBASE-SR.
• RoHS Compliant

Product Description

• This SFP+ Module is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. It converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
• The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
• The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
• The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

These Dual LC SFP+ Modules are commonly installed with the Duplex Multi Mode LC to LC Fiber Cables Below:

/1m-duplex-multimode-om3-fiber-cable-upc-lc-lc-fiber-cable-fiber-patch-cord/

Absolute Maximum Ratings

Optical Characteristics

Notes:

1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.

Electrical Characteristics
