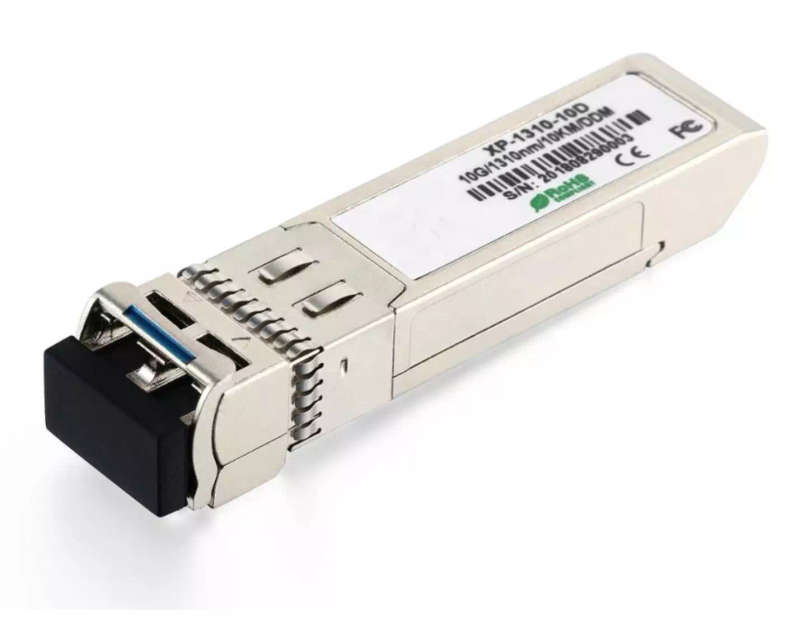

10Gbps Fiber SFP+ Module | Single Mode Dual LC Transceiver | 10km | Cisco or Generic Switch Compatible
These Fiber SFP+ modules have been individually programmed to be compatible with Cisco Equipment and is 100% compatible with other generic sfp+ coding brands such as Tenda, Hikvision, TPLink, TrendNet, Netgear, Ubiquiti / Unifi, Cudy and generic OEM brands.
This SFP+ Module is Hot-Pluggable and it can be inserted into a Network or POE Network Switch without the need to power-down the switch.
Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.
Product Features
- Up to 11.3Gbps Data Links
- Up to 10km transmission on SMF
- DFB Laser and PIN receiver
- Metal enclosure, for lower EMI
- 2-wire interface with integrated Digital Diagnostic monitoring
- Hot-pluggable SFP+ footprint
- Specifications compliant with SFF 8472

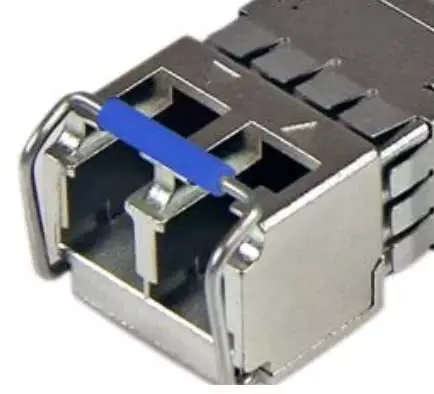

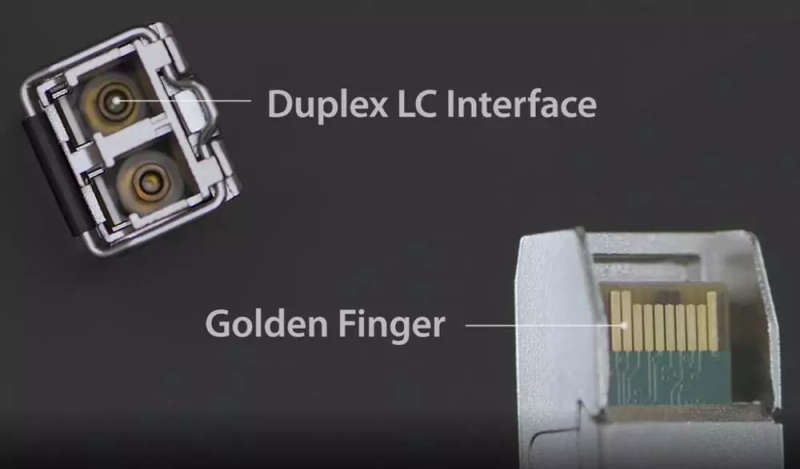

- Compliant with SFP+ MSA with LC receptacle
- Single 3.3V power supply
- Case operating temperature range:0°C to +70°C
- Power dissipation < 1.5 W
Applications
- 10GBASE-LR/LW Ethernet
- SONET OC-192&SDH STM-64
- OTN ITU-T G.709
- 10X Fibre Channel
- LTE systems
- Other Optical links

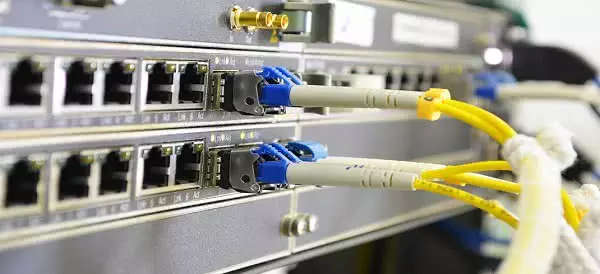

Example of Dual LC Fiber SFP Installation
Standard
- Compliant to SFF-8431
- Compliant to SFF-8472
- RoHS Compliant
Product Description
This SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of 1310 DFB Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472. The module data link is RoHS Compliant.
These Dual LC SFP+ Modules are commonly installed with the Duplex Single Mode LC to LC Fiber Cables Below:
/30m-duplex-single-mode-upc-lc-lc-fiber-optic-cable-fiber-patch-cord-outdoor-drop-cable/
/100m-duplex-single-mode-upc-lc-lc-fiber-optic-cable-fiber-patch-cord-outdoor-drop-cable/
/60m-duplex-single-mode-upc-lc-lc-fiber-optic-cable-fiber-patch-cord-outdoor-drop-cable/
/150m-duplex-single-mode-lc-lc-upc-fiber-cable-fiber-drop-cable-outdoor-cable/
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Storage Temperature | TS | -40 | | +85 | °C |
| Case Operating Temperature | TOP | 0 | | +70 | °C |
| Maximum Supply Voltage | Vcc | -0.5 | | 4 | V |
| Relative Humidity | RH | 0 | | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Case Operating Temperature | TOP | 0 | - | +70 | ºC | Without air flow |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.47 | V | |
| Power Supply Current | ICC | - | | 430 | mA | |
| Data Rate | BR | | 10.3125 | | Gbps | |
| Transmission Distance | TD | | - | 10 | km | |
| Coupled fiber | Single mode fiber | 9/125um SMF |
Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter |
| Center Wavelength | t | 1290 | 1310 | 1330 | nm | |
| spectral width | | | | 1 | nm | |
| Average Optical Power | Pavg | -8.2 | | +0.5 | dBm | 1 |
| Optical Power OMA | Poma | -5.2 | | | dBm | |
| Laser Off Power | Poff | | | -30 | dBm | |
| Extinction Ratio | ER | 3.5 | | | dB | 7 |
| Extinction Ratio | ER | 6 | | | dB | 6 |
| Transmitter Dispersion Penalty | TDP | | | 3.2 | dB | 2 |
| Relative Intensity Noise | Rin | | | -128 | dB/Hz | 3 |
| Optical Return Loss Tolerance | | 20 | | | dB | |
| Receiver |
| Center Wavelength | r | 1260 | | 1355 | nm | |
| Receiver Sensitivity | Sen | | | -14.5 | dBm | 4,7 |
| Receiver Sensitivity | Sen | | | -14.5 | dBm | 4,6 |
| Stressed Sensitivity (OMA) | SenST | | | -10.3 | dBm | 4 |
| Los Assert | LOSA | -25 | | - | dBm | |
| Los Dessert | LOSD | | | -15 | dBm | |
| Los Hysteresis |
