Battery Inverter Performance
- Battery for inverter have more Stronger UPS, max. 250A discharging current
- 200A pass through relay to EPS, easy installation
- Plug & Play, seamless switching under 10ms
- Normal 230, 240V, split phase 120/240, 120/208V, 100/200V available
- Battery Inverter advanced parallel, up to 120kW
- Host inverter automatically generated to manage entire system when parallel
- Solar battery power inverter Easy to use with battery, can work with low vol and high vol battery
- Battery Inverter advanced parallel, up to 120kW
- AC coupled function
- Separate generator interface
- Battery inverter work with utilities to intelligently manage the battery and save bills
- Optional 10 year warranty
Solar Battery Inverter Efficiency
97.2% Europe Efficiency 96.7% Max Efficiency PV to Grid 94.7% Max Efficiency Battery to Grid 99.9% MPPT Efficiency

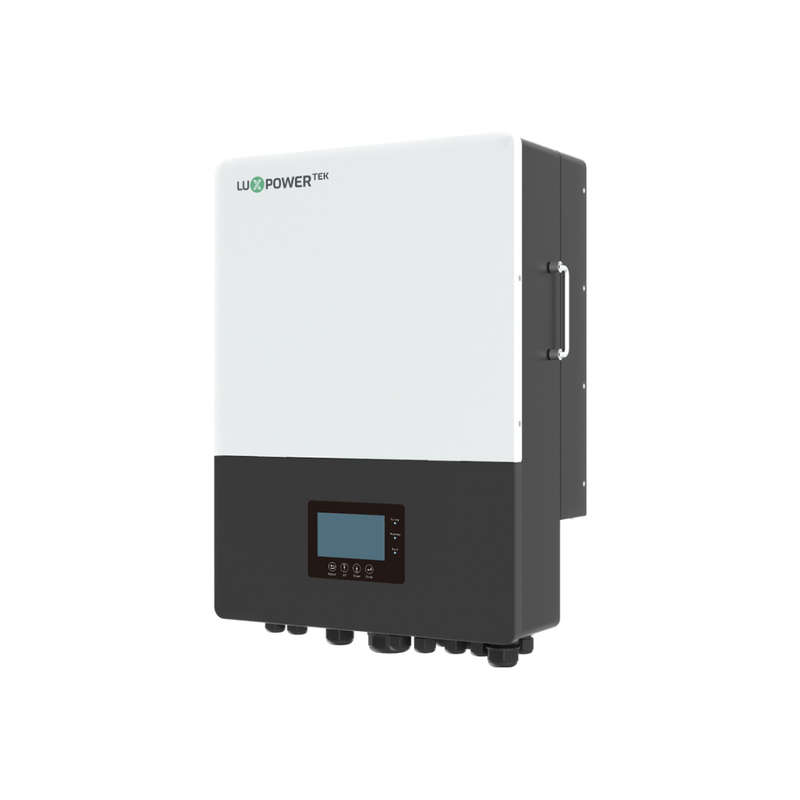

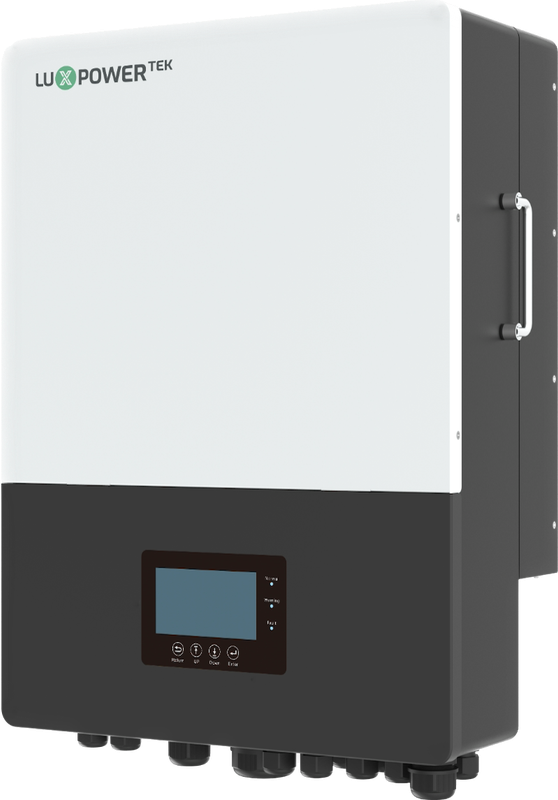

LXP Hybrid 10kva
Solar Battery Inverter Application
System Connection
A new design of solar and battery inverters that can use in on-grid solar, off-grid solar and back-up systems. The LXP Hybrid implements a programmable and scheduled intelligent solar storage system. This power inverter battery can help increase your solar energy self-use and protect your home appliances from grid shortages. Power battery inverter can also balance your energy use strategy to save on energy costs.
Power Battery Inverter Working Modes
LXP hybrid inverters support variable working modes
Self consumption mode: Solar power will be used to take house load first, the left solar power will be used to charge the battery, after battery charged, the solar power can feed into grid.
Force charge and discharge mode: Off Grid Solar Inverter will charge or discharge battery according to the time users set.
Charge first mode: Solar power will used to charge battery first, then take family load and at last feed into grid. The best off grid inverter mode is used in the area where grid power supply is not stable
Parallel Connection
The LXP off grid solar inverter MG series support parallel connection function. Which means users can extend their off grid power very easily. Due to the advanced control method, there are some advantages for the parallel system:
- As much as 9 inverters can be connected
- There is no requirement for same length of cable connection
- Users can connect all inverters to a big battery bank or connect to different battery group
