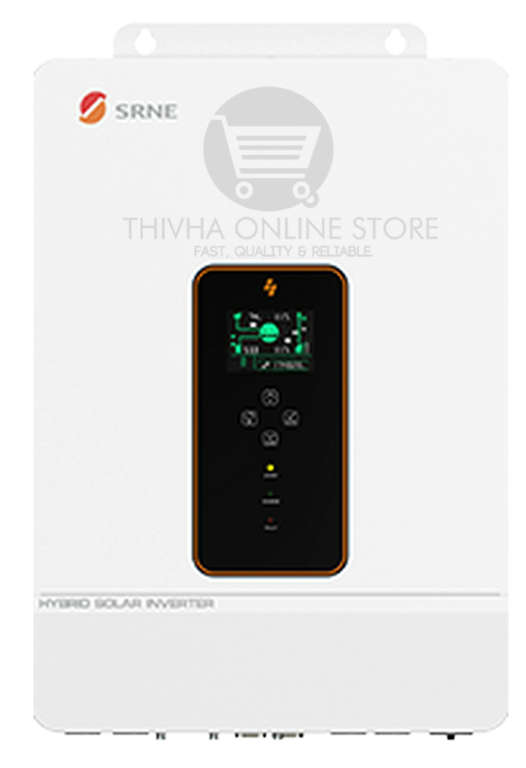

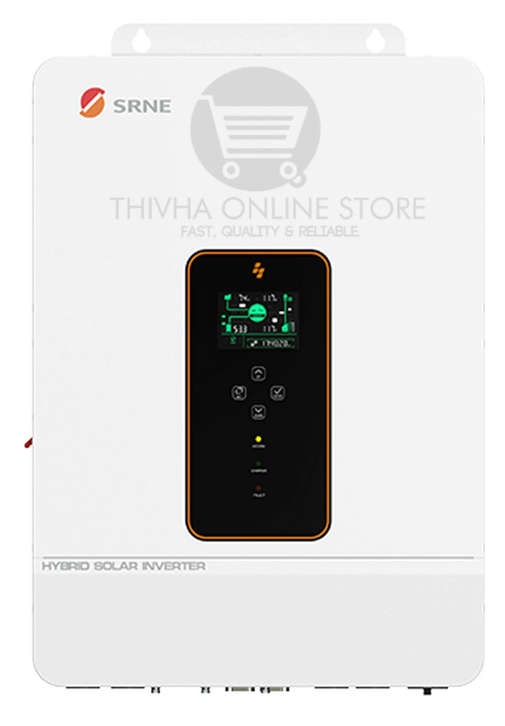

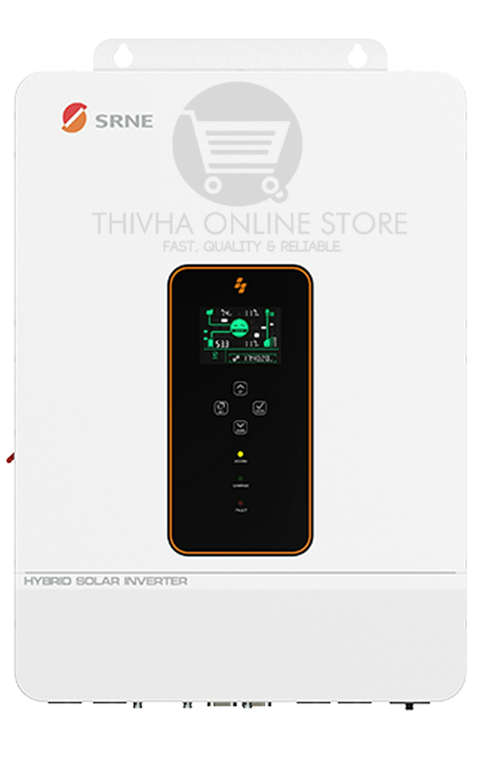

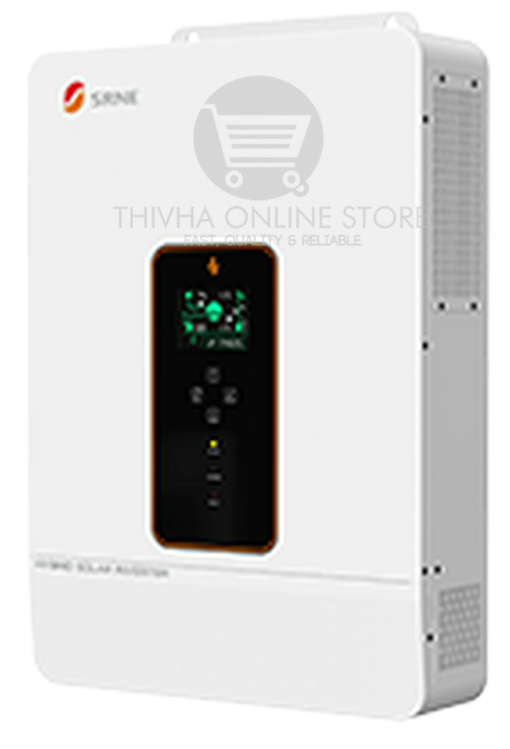

10KVA 200A MPPT OFF GRID HYBRID SOLAR INVERTER 48V INVERTER- SRNE

10KVA 200A MPPT OFF GRID HYBRID SOLAR INVERTER 48V INVERTER- SRNE

All-in-One
Solar Charger Controller up to 200A charging current
Support for Li-ion battery BMS communication

Reliable
Outputs high quality pure sine wave AC power.
10kW load power to meet the needs of most households

Efficient
Dual MPPT with up to 99.9% efficiency.
Up to 22A PV input current perfect for high power modules

Convenient installation
Industrial design with a modern aesthetic look.
Easy to install and simple to use.

Safety
360 degrees of security from hardware to software.
EU and North American safety approvals.

Intelligent
Exclusive Li-ion battery BMS dual activation.
Time-slot function to save cost with peak-valley tariff.

Communication
Support various brands of battery communication.

Model:ASF48100S200-H

INVERTER OUPUT
Rated output Power: 10 000W
Max. Peak Power: 15 000W
Rated Output Voltage: 230 Vac
Load Capacity of Motors: 6HP
Rated AC Freqauency: 50/60Hz
Waveform: Pure Sine Wave
Switch time: 10ms (typical)

BATTERY
Battery Type: Li-ion / Lead-Acid / User defined
Rated Battery Volatge: 48Vdc
Volatge Range: 40~ 60Vdc
Max. MPPT Charging Current: 200A
Max. Mains/Generator Charging Current: 120A
Max. Hybrid Charging Current: 200A

PV INPUT
Num. of MPPT Trackers: 2
Max. PV array power: 5500W + 5500W
Max. Input current: 22A + 22A
Max. Voltage of Open Circuit: 500Vdc + 500Vdc
MPPT Voltage Range: 125 ~ 425Vdc

MAINS / GENERATOR INPUT
Input Voltage Range: 90 ~ 270Vac
Frequency Range: 50/60Hz
Bypass Overload Current: 63A

EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Battery Inverter Efficiency: 92%

GENERAL
Dimensions: 62 x 44.5 x 13 CM
Weight: 27KG
Protection Degrees: IP20, Indoor Only
Operating Temperature Range: -15 ~ 55 Degrees Celcius, >45 Degrees Celcius derated
Noise: <60dB
Cooling Method: Internal Fan

COMMUNICATION
Embedded Interfaces: RS485 / CAN /USB /Dry contact
External Modules: Wi-Fi/GPRS
Safety: IEC62109-1, IEC62109-2
EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
RoHS: Yes

Warranty: 12 Months Repair Warranty

Warranty Condition:

A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
