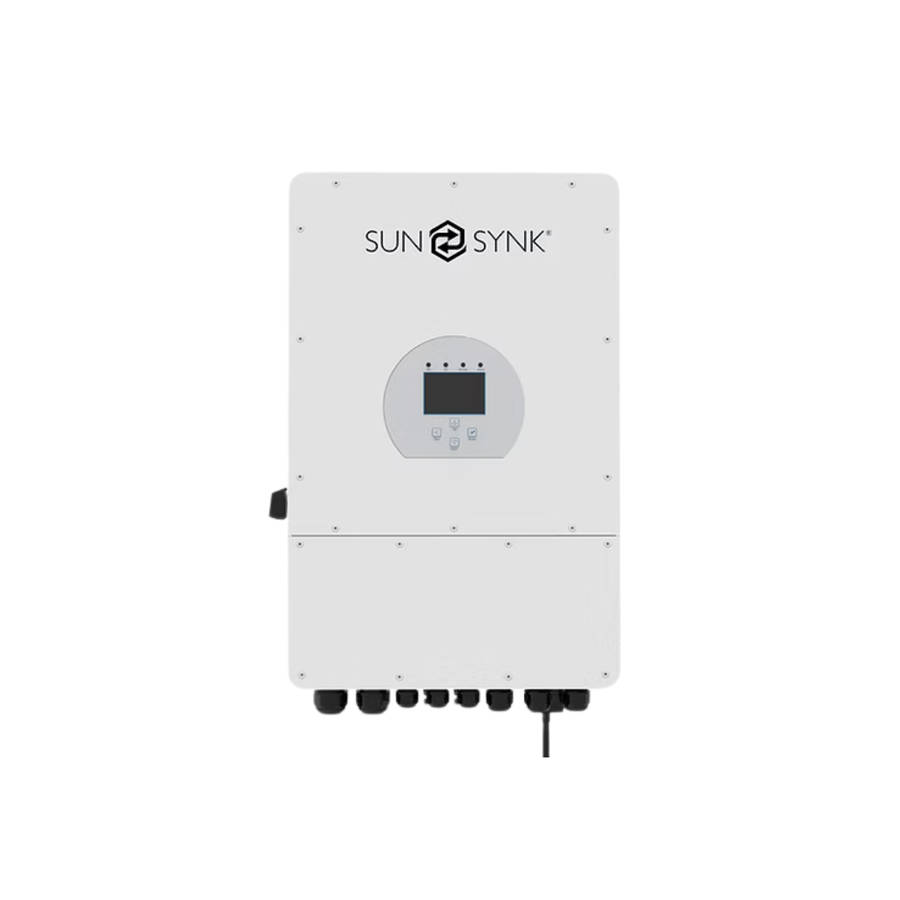

10KW SUNSYNK Single Phase LV Hybrid Inverter + WIFI

10KW SUNSYNK Single Phase LV Hybrid Inverter + WIFI

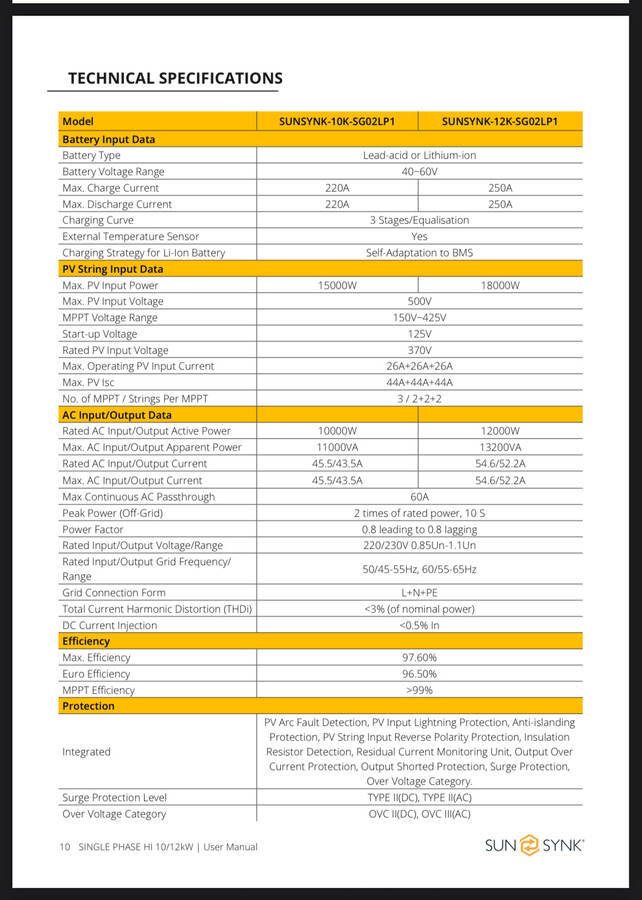

DATA SHEET

Description:

The Sunsynk 10kW Hybrid Inverter is engineered for seamless solar integration across residential, commercial, and industrial installations. Designed for both on-grid and off-grid use, it features triple MPPT channels, high current support, and smart BMS adaptability delivering reliable, high-efficiency performance under varying energy demands.

Battery Input Capabilities

• Supports lead-acid and lithium-ion batteries

• Operating voltage range: 40V 60V

• High-capacity charging and discharging: 220A

• Integrated external temperature sensor

• Intelligent 3-stage charging with equalization

• Automatic BMS communication for lithium-ion packs

PV Input Specifications

• Maximum DC input power: 13,000W

• Rated PV input voltage: 370V (range 125V 500V)

• MPPT voltage window: 150V 425V

• Full load voltage range: 200V 425V

• Triple MPPT design (3 MPPTs with 2 strings each)

• PV input current: 26A + 26A + 26A

• Max short-circuit current: 44A + 44A + 44A

AC Output and Grid Integration

• Rated output: 10,000W | Max: 11,000W

• Peak off-grid power: Up to 2× rated power for 10 seconds

• Output current: 50A max

• Voltage/frequency: 50/60Hz | L/N/PE 220/230Vac

• Grid support for Split Phase, 2/3 Phase, and Single Phase systems

• Fast bypass transfer with max passthrough of 70A

• Power factor: 1.0 | Adjustable from 0.8 leading to 0.8 lagging

• Total harmonic distortion (THDi): <3%

• DC injection: <0.5% In

Efficiency Ratings

• Inverter efficiency: 97.6%

• European weighted efficiency: 97.0%

• MPPT tracking efficiency: 99.9%

Protection & Compliance

• Built-in protections:

  • Anti-islanding

  • Reverse polarity (PV)

  • Insulation resistor fault

  • Output overload and surge protection

  • Short circuit protection

  • Residual current monitoring

• Certified to:

  • IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2

  • VDE4105, AS4777.2, CEI 0-21, EN50549-1, G98/G99, UNE217002

General Information

• Smart cooling system with low noise operation (<30dB)

• BMS communication via RS485 and CAN

• Operating temperature: -40°C to 60°C (derating >45°C)

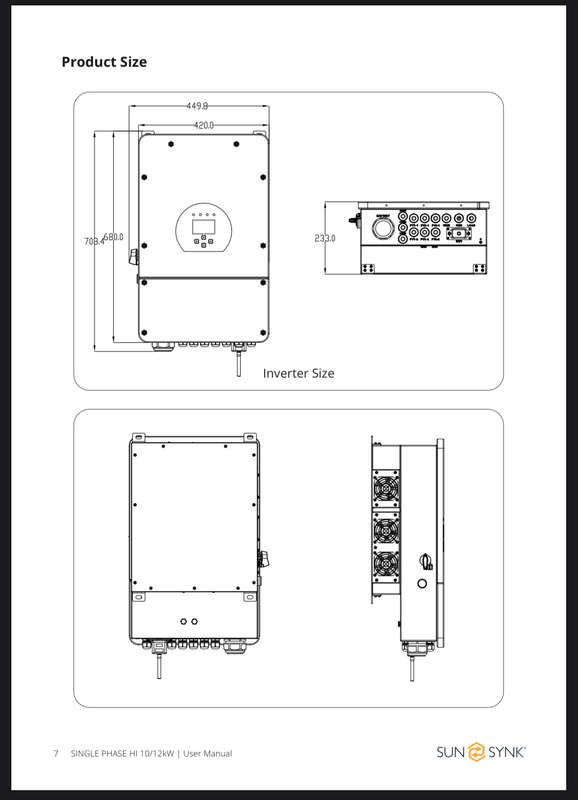

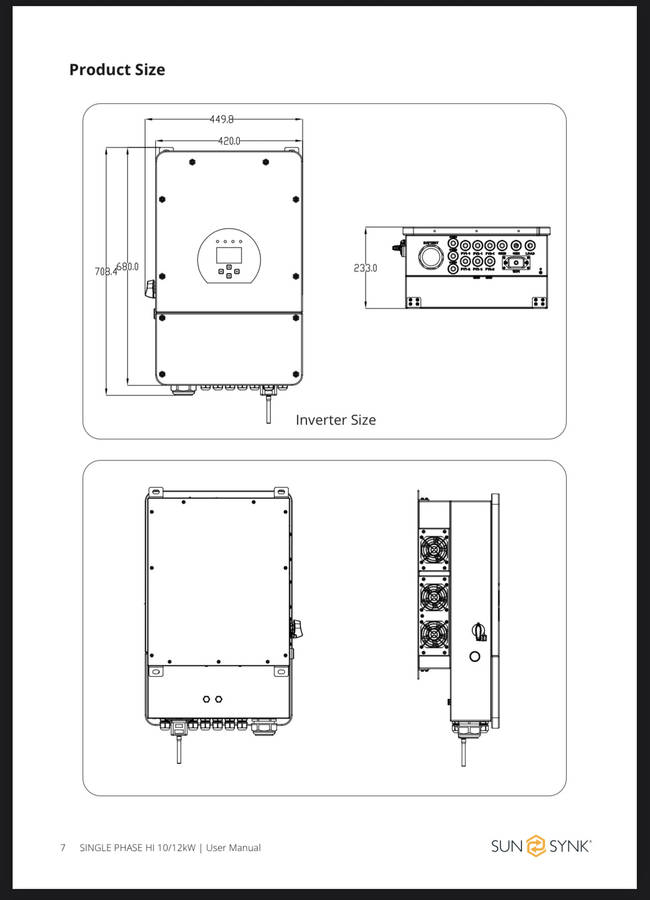

• Dimensions: 420mm W × 670mm H × 233mm D (excluding brackets)

• Weight: 32kg

• Wall-mountable with IP65-rated protection

Warranty

10-year repair warranty.

Important:

Installation must be carried out by a registered wireman or Master Electrician certified by the Department of Labour. A valid Certificate of Compliance (COC) specific to the installation must be issued and all work must comply with SANS 10142. Claims submitted without proper documentation (COC, installation photos, certified installer) may be declined.
