Description:
10mm Lens 4 LED Waterproof Car Video Inspection Camera Probe Borescope 1M Endoscope Pipe Snake ScopeThis inspection camera is ideal for HVAC inspection, automotive inspection, vent pipe, machine equipment, engine, cable routing, automotive boat aircraft inspection, inspect area under water, gaps and holes especially with small openings.
Features:

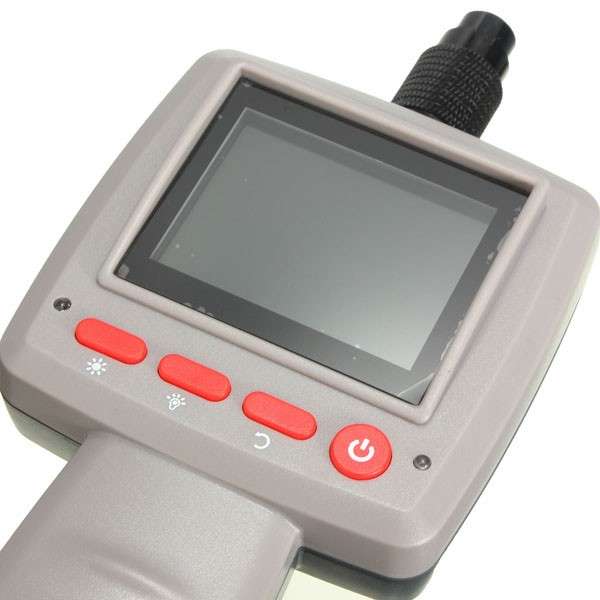

This Large 2.4" TFT Color LCD Video Inspection Camera uses optoelectronic technology to investigate hard-to-reach area.
The image flip over and 180¿¿ rotation function on the LCD allows you to adjust viewing orientation.
The camera head equips 4pcs of adjustable night vision LED (with brightness control) to illuminate the inspection area.

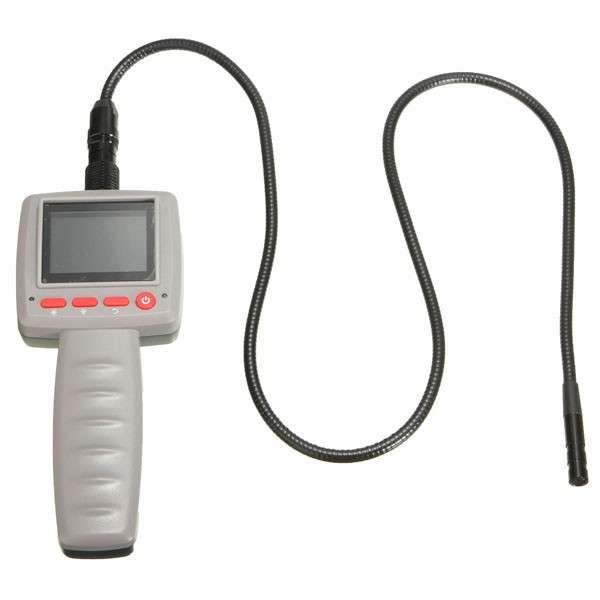

The 1m (3.3 feets) flexible tube with 9.8mm camera head is IP67 waterproof.

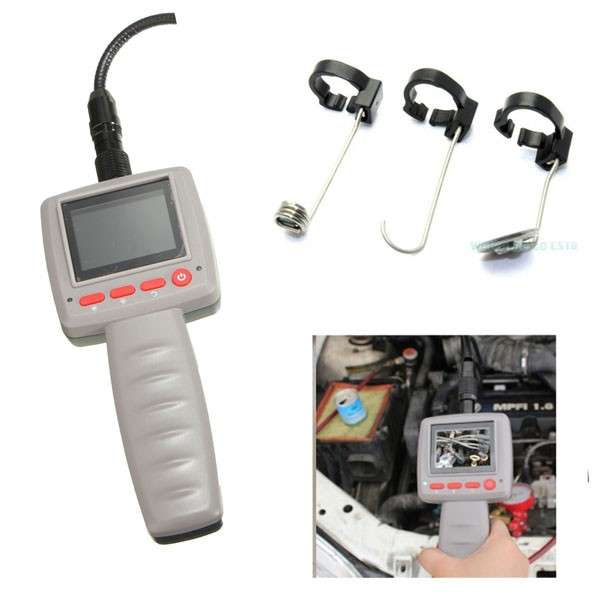

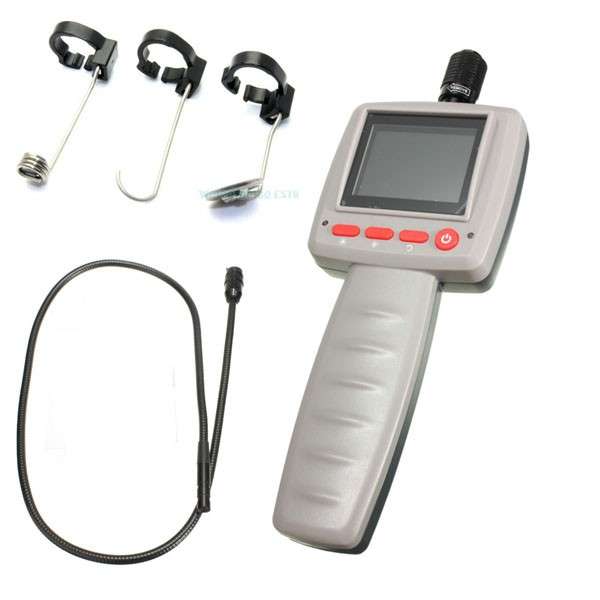

The tool set is to be easily attached to the camera head for picking up small objects, viewing and hooking conveniently.
Specifications: 1. Diaplay Unit

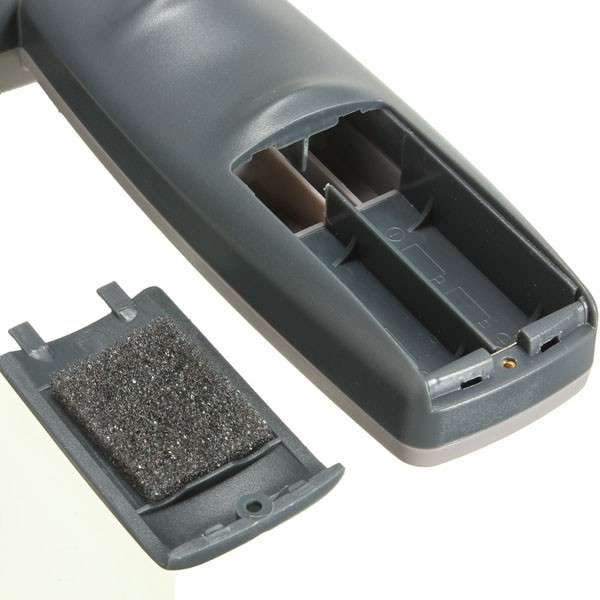

Power: 4 x 1.5 (AA)Batteries

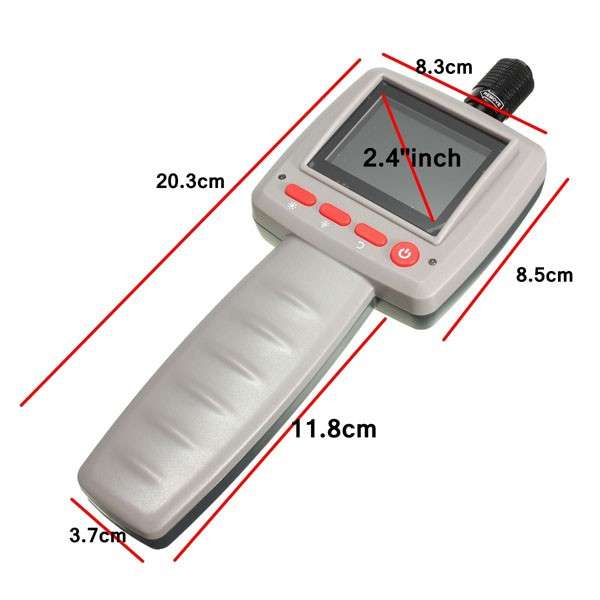

Display: 2.4" TFT LCD Monitor 320 x 240 Pixel
Video Format: JPEG
Working Temperature Range: -20 ~ 60°
Storage Temperature Range: 0 ~ 40°
2. Camera

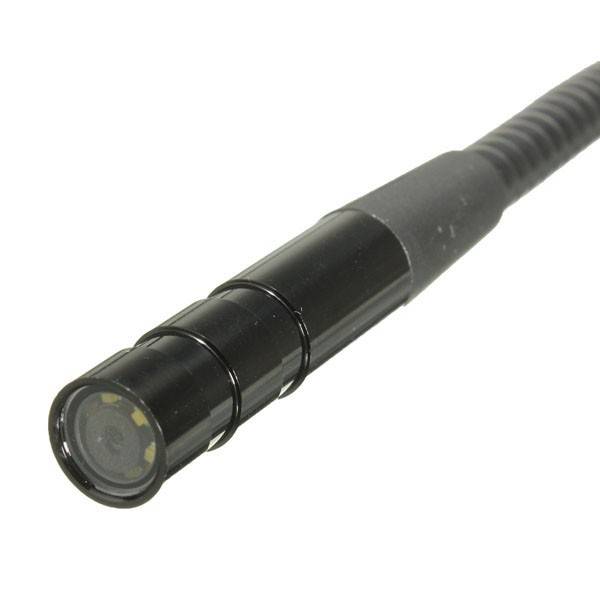

Camera Head Diameter: 10mm
Imaging Sensor: Optical format CMOS
Pixels: 640 x 480 (320 x 240 optional)
Exposure: 30 ~ 80mm
Auto White Balance: Automatic
Distortion: < 3.7%
Power Consumption: 3~5W (Active)
Housing Material: Aluminum
Field of View: 54°
3. Insertion Tube
Tube Diameter: 6.8mm
Length: 1m
4. Light Source
Number of Lamps: 4
Brightness Control: Manual
Lamp Type: LED
Minimum Illumination: 0 Lux
Lamp Life: 8000hrs., median
5. Operating Environment
Tip Operating Temperature: -20~60°C (-4~140°F)
Storage Temperature: -20~70°C (-4~158°F)
Relative Humidity: 95%RH max
Waterproof: IP67
Hazardous Environment: Not rated for use in hazardous environments

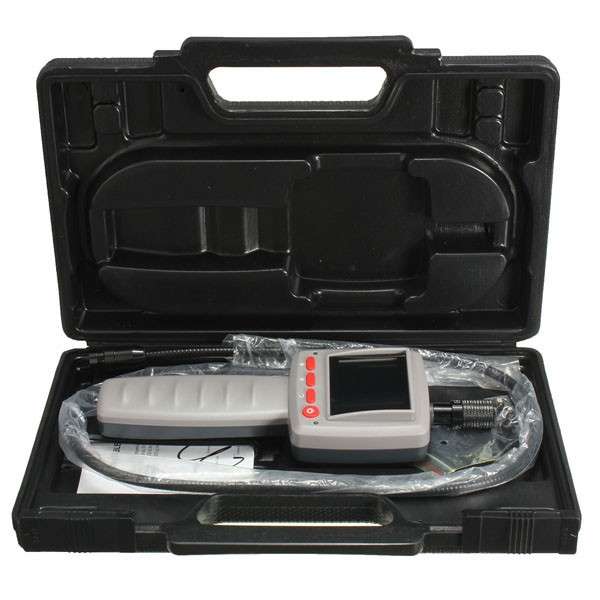

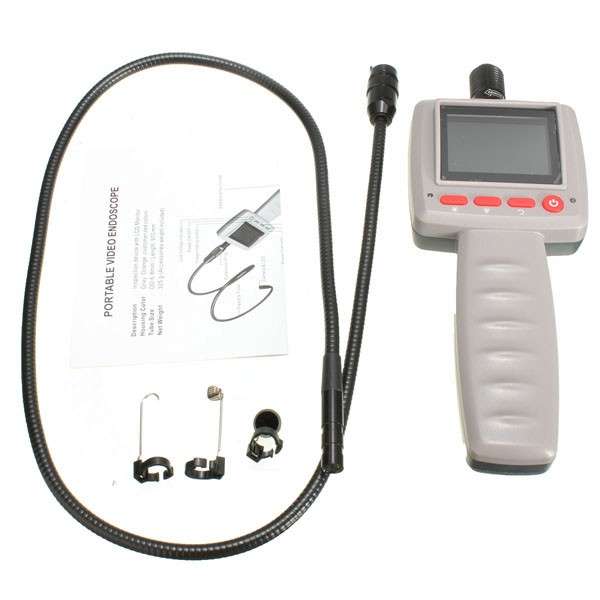

Package includes:

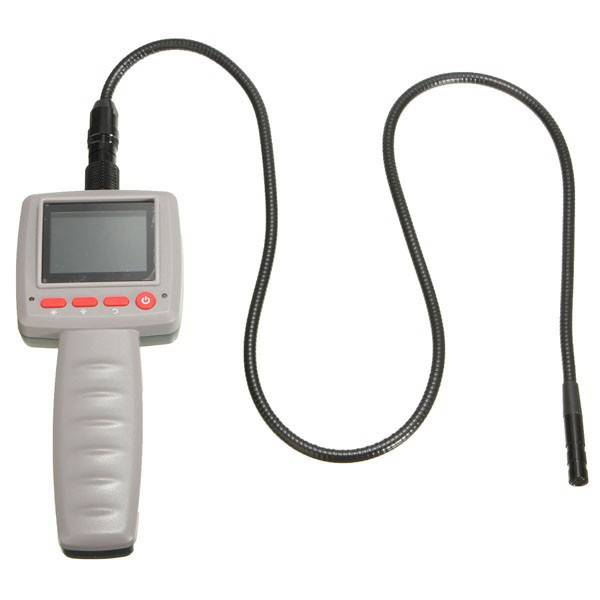

1 x 2.4" Inspection Camera

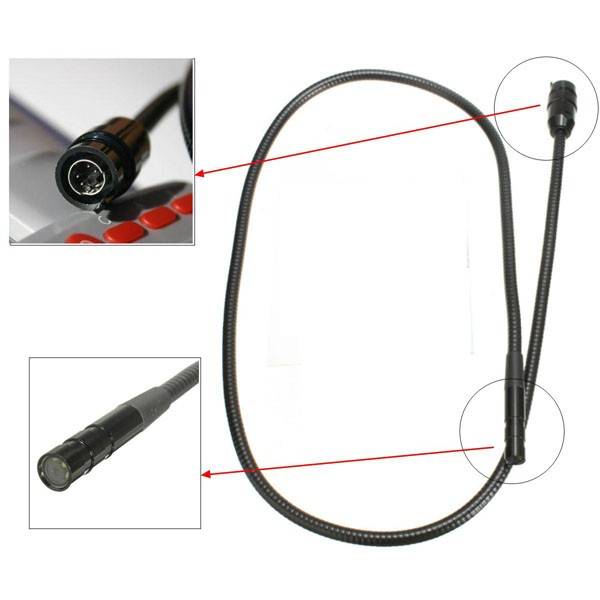

1 x Standard 1m Flexible Tube

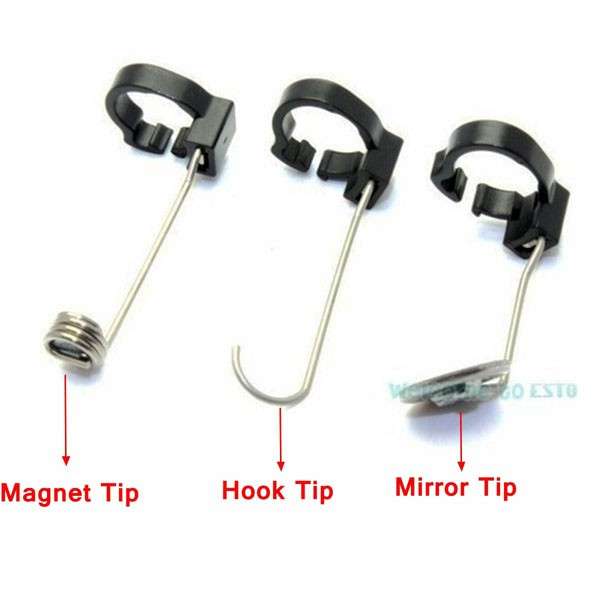

1 x Magnet Tip
1 x Hook Tip
1 x Mirror Tip
1 x User munual

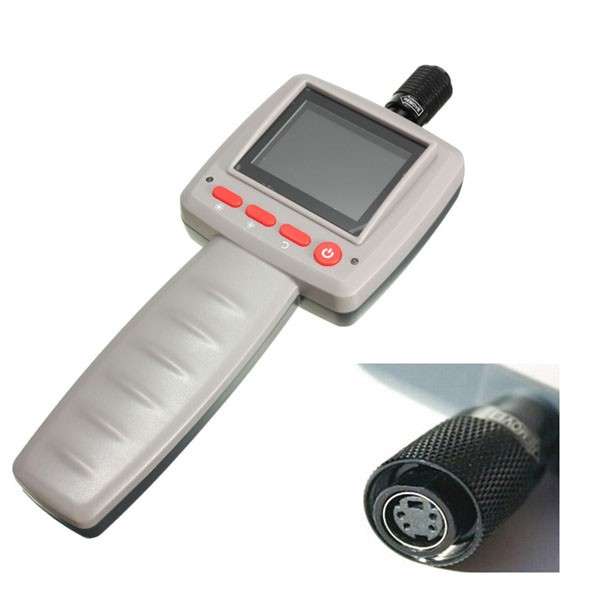

Details pictures:
