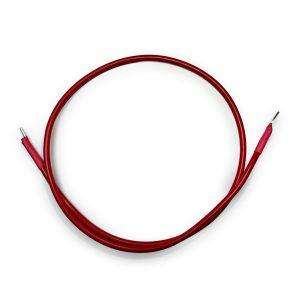

10mm2 7 AWG DC Charging and Battery Cable 200CM Red With 8mm Ring and Pin Lugs

Name: 10mm2 7 AWG DC Charging and Battery Cable 200CM Red With 8mm Ring and Pin Lugs
SKU: LS-CHCAB-10MM2-RING8-PIN10-200CM-RED
Price: 122.69 ZAR
Availability: InStock

10 available / new

Indicative market price: R128.69

R122.69

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Livestainable (Pty) Ltd727

91.30 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

LS-CHCAB-10MM2-RING8-PIN10-200CM-RED

Bob Shop ID

643348160

10mm2 7 AWG DC Charging and Battery Cable 200CM Red With 8mm Ring and Pin Lugs

DC Battery Cables for battery to battery or battery to inverter connections. Hydraulically crimped and insulated ring terminal lugs to minimise resistance and reduce the risk of a fire hazard.

These cables have pure copper cores compared to aluminium cores that do not have an efficient CCC (Current Carrying Capacity).While aluminium core cables are more popular on solar panel connections due to safety reasons and allow the cable to burn off internally and prevent fires, copper cables are in favor of battery connections to minimize voltage loss and current restrictions.Therefore it is critically important to have battery cables professionally crimped and adequately sized for the application. We at Livestainable will crimp the cables for you in the correct manner for your peace of mind.

Colour: Red
One End Lug: 8mm Ring Lug
Other End Lug: Pin Lug
Strand Diameter: 0.4mm
Cable Size AWG: 7 AWG
Nominal Size MM2: 10mm2
Nominal External Diamter: 6mm
Cable Type: DC Charging and Battery Cable
Colour: Red
Max Continious Current: 66 Amps
Max Starting Current: 165 Amps
Colour: Red
Insulation/Wall Thickness: 0.8mm
Max Resistance Mohm/km: 1.913
Conductor Type: Flexible annealded copper SABS 1411 Part 1 Class 5 resistance
Operating Temperature: up to 80C
