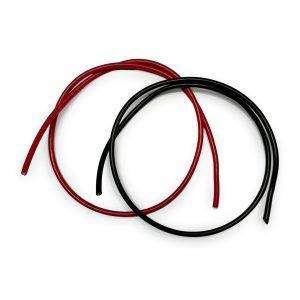

10mm2 7 AWG DC Charging and Battery Cable 50CM Red and Black Pair

10mm2 7 AWG DC Charging and Battery Cable 50CM Red and Black Pair

DC Battery Cables for battery to battery or battery to inverter connections. Hydraulically crimped and insulated ring terminal lugs to minimise resistance and reduce the risk of a fire hazard.


These cables have pure copper cores compared to aluminium cores that do not have an efficient CCC (Current Carrying Capacity).While aluminium core cables are more popular on solar panel connections due to safety reasons and allow the cable to burn off internally and prevent fires, copper cables are in favor of battery connections to minimize voltage loss and current restrictions.Therefore it is critically important to have battery cables professionally crimped and adequately sized for the application. We at Livestainable will crimp the cables for you in the correct manner for your peace of mind.

Colour: Red and Black Pair
One End Lug: No Ring Lugs
Other End Lug: No Pin Lugs
Strand Diameter: 0.4mm
Cable Size AWG: 7 AWG
Nominal Size MM2: 10mm2
Nominal External Diamter: 6mm
Cable Type: DC Charging and Battery Cable
Colour: Red and Black Pair
Max Continious Current: 66 Amps
Max Starting Current: 165 Amps
Colour: Red and Black Pair
Insulation/Wall Thickness: 0.8mm
Max Resistance Mohm/km: 1.930
Conductor Type: Flexible annealded copper SABS 1411 Part 1 Class 5 resistance
Operating Temperature: up to 80C
