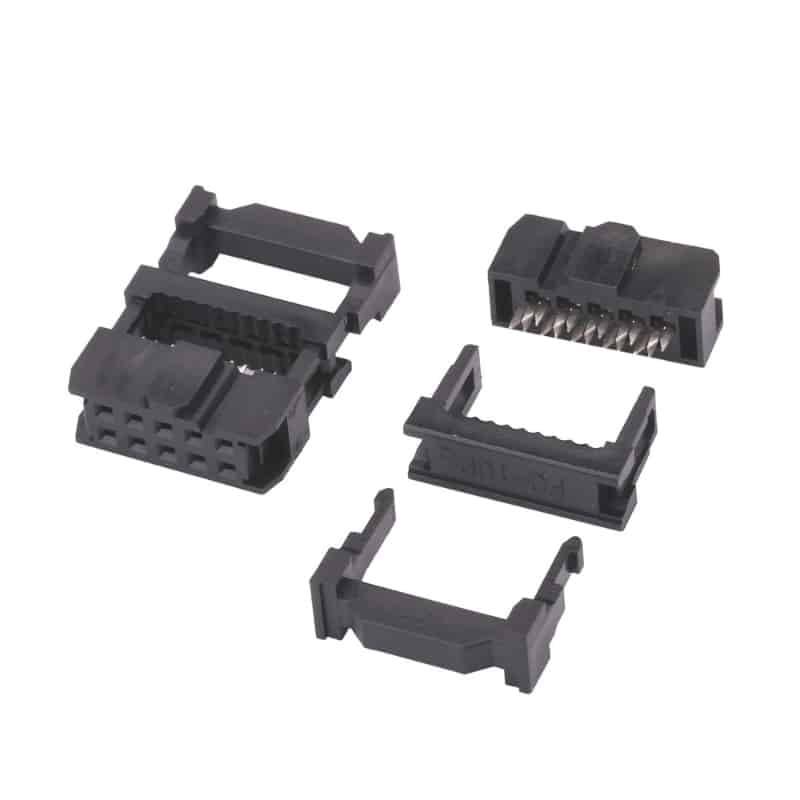

10 Pin Dual Row IDC Female Socket Connector.Comes with a central lug and train-relief socket.Suitable for ribbon cable. These IDC sockets mate to standard 0.1" PCB Header pins or male IDC plugs. Easy to assemble IDC Termination for standard ribbon cable
Specifications: | |
Current rating: | 3Amps |
Withstand Voltage: | AC 1000V |
Insulation Resistance: | 1m Ohm/Min |
Contact Resistance: | 20OmA Max |
Operating Temp: | -40C to +105C |
Insulation Material: | Polyester(UL94V-0) |
Contact Material: | Brass |
Contact Plating: | Au or Sn over Ni |
Max Processing Temp: | 230C for 30-60 seconds |
