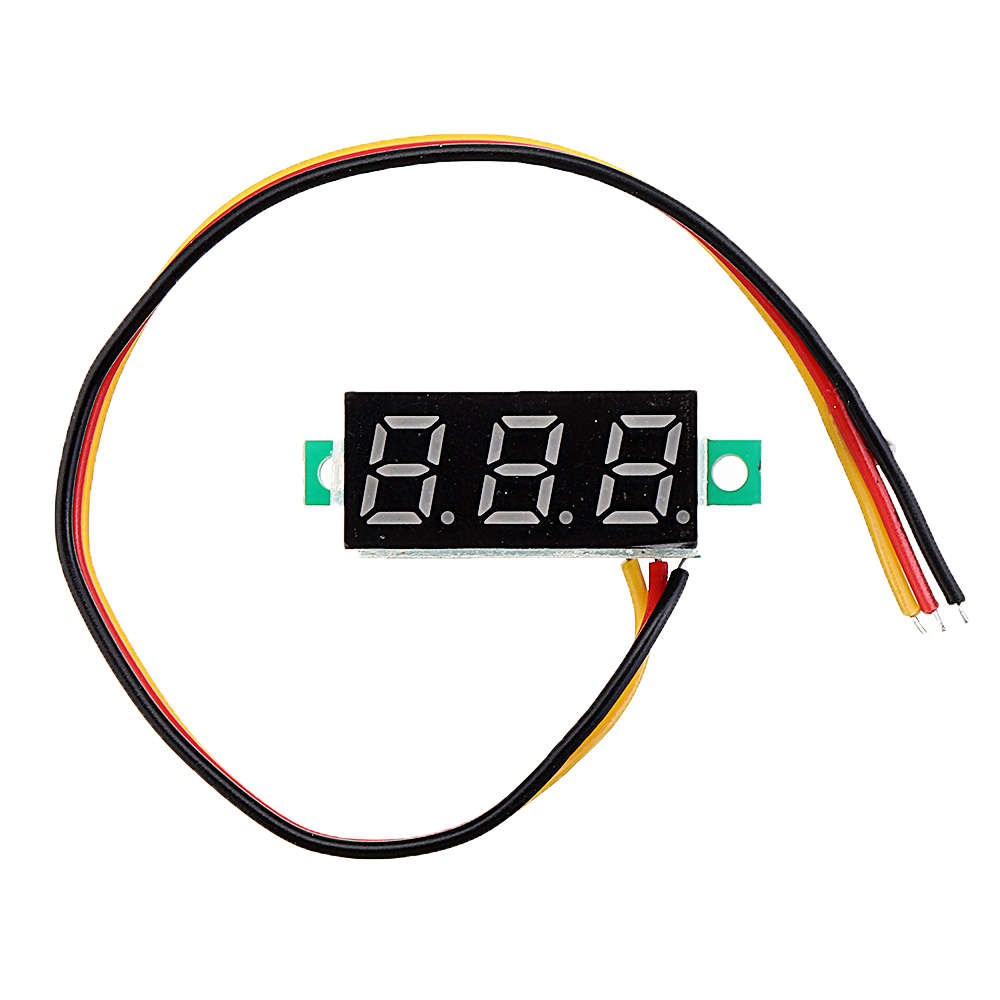

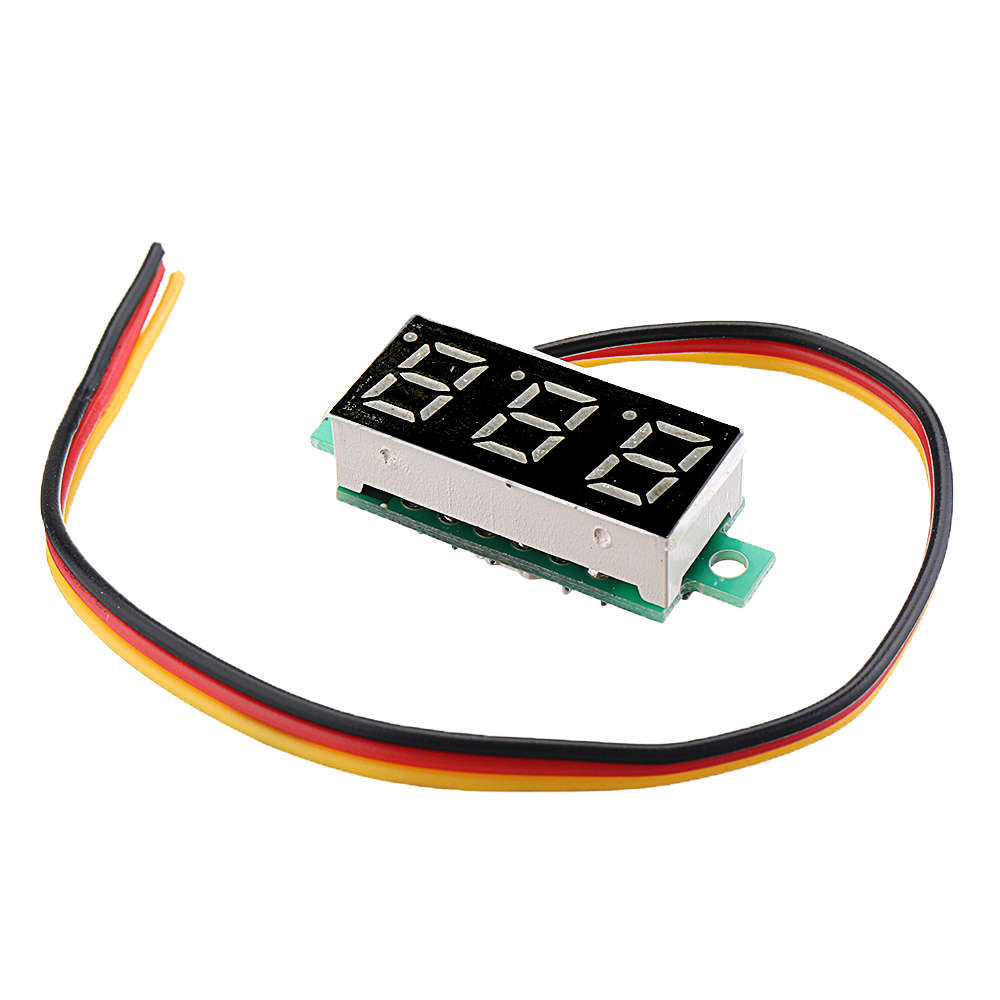

10pcs 0.28 Inch Three-wire 0-100V Digital Red Display DC Voltmeter Adjustable Voltage Meter
Affordable and reliable Courier Shipping available at R89.00
Feature:
Package includes:
10 x Voltage meter
Affordable and reliable Courier Shipping available at R89.00
Feature:
1. The wiring of this voltmeter is simple. The conventional two wires are used, the red is connected to the positive, the black is connected to the negative, and the reverse connection is protected.
2. Conventionally, no external working power supply is required, and the measuring voltage can be directly operated. The measuring voltage range is two-wire 2.50-30V, three-wire 100V.
3. Wide voltage operation, red 2.50V low and safe pressure up to 40V, more than 40V may be damaged.
4. When measuring voltages below 10V, two digits are displayed after the decimal point; when measuring voltages above 10V, one digit is displayed after the decimal point.
| Measuring range | Two-wire DC2.50~32.0V / three-wire DC0-100V / 500V |
| Power supply range | No need to supply power separately. The measured voltage <40V, higher than 40V may be damaged. |
| Test accuracy | ±1%. >10V error ±0.1V; <10V ±0.03V |
| Input resistance | >50K |
| Working current | <30mA |
| Refresh rate | About 100mS once |
| Display specification | Three digit 0.28 LED digital tubes |
| Lead length | Default 20cm |
| Dimensions | 30 x 11.5 x 9 mm |
| Hole Size | Pitch: 26mm Aperture: 2.4mm |
| Net weight | 4g |
| Operating temperature | -10 to +80 °C |
| Working humidity | 10 to 80% |
| Working pressure | 80 to 106 kPa |
Package includes:
10 x Voltage meter
