10Pcs 1-Channel 12V H/L Level Optocoupler Relay Module For Arduino
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

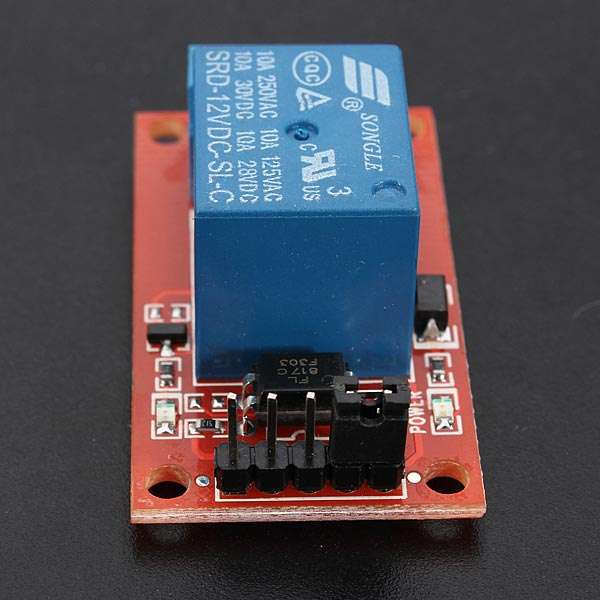

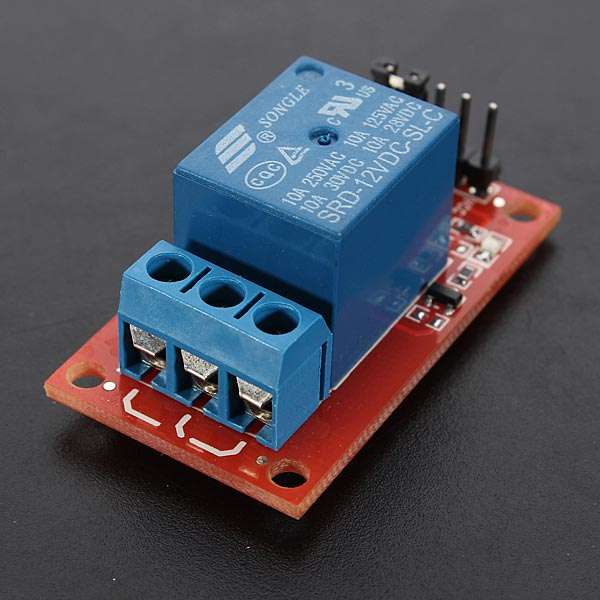

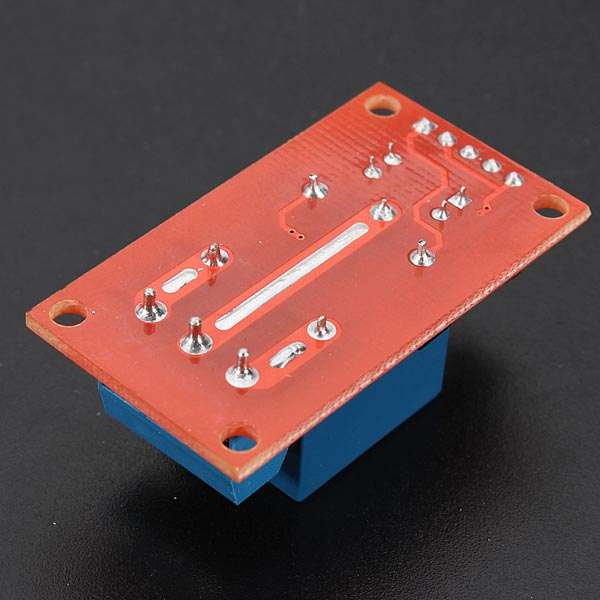

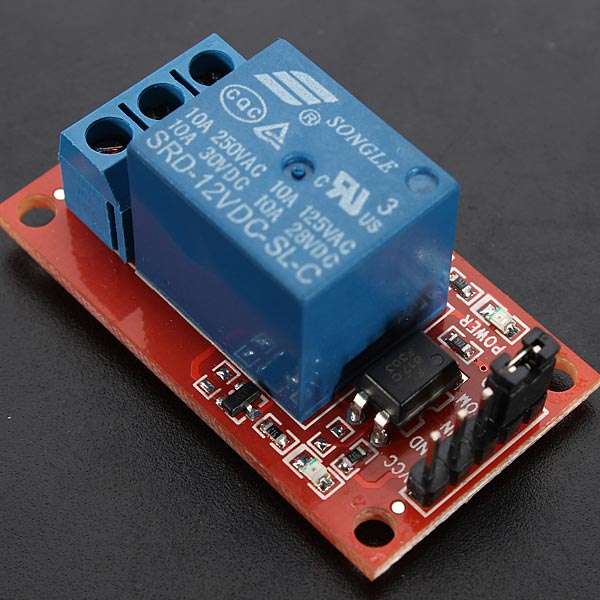

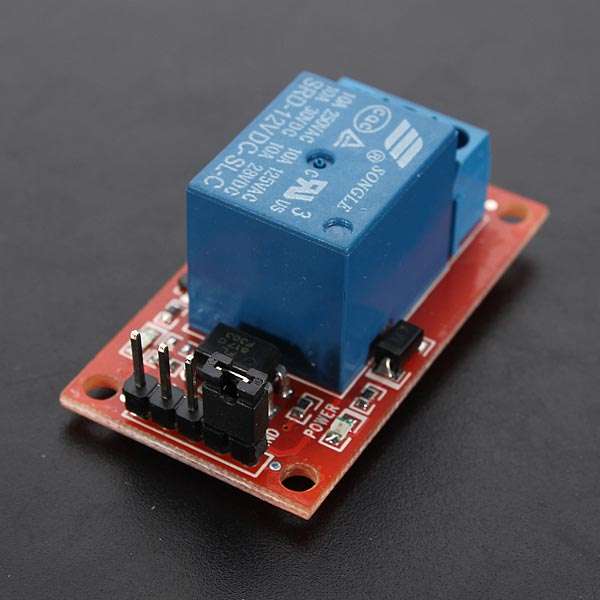

10Pcs 1-Channel 12V H/L Level Trigger Optocoupler Relay Module For Arduino
Feature:
1-channel relay module, with photoelectric isolation
High or Low level changeable(by a jumper setting trigger)
The module uses genuine quality relay
With power and relay action indicator
Operating voltage: 12V
Maximum load: AC 250V / 10A, DC 30V / 10A
Size:44 x 24 x 17mm
Weight: 160g(10pcs)
Pins:
DC+: Positive power supply (VCC)(12V)
DC-: Negative power supply (GND)
IN: The control end, the driving current should be more than 4mA
COM: The control of loop of earth wire
GND: Ground
Notice:
High Level Mode: the jumper is set between com and gnd (original)
Low Level Mode: take down the jumper, connect VCC to VCC, GND to Control Terminal, IN to 5V, COM to GND
Package included:
10 x 12V 1-channel relay module
