10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector 10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector 10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector 10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector
10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector 10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector 10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector 10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector

10pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector

20 available / new
R278.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641099304
Feature:

5mm spacing, 3-pin, screw type.
Widely used in electronics, communications equipment, instruments, calculator, automatic control system, home appliance and warning devices, etc.

Specifications:

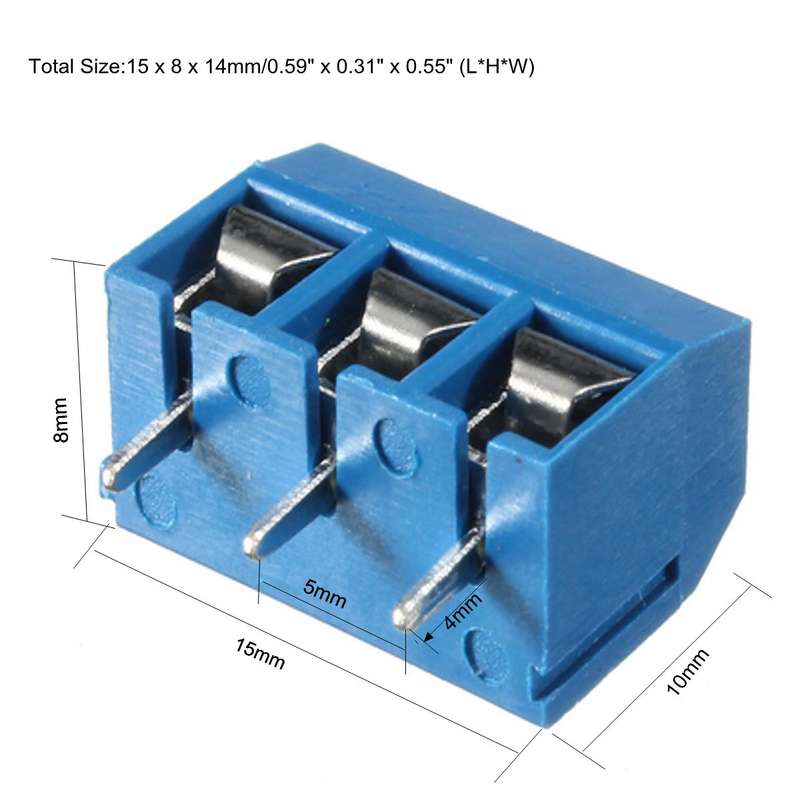

Total area: 15 x 8 x 14 mm / 0.59 x 0.31 x 0.55 (l * w * h)
Voltage: 300V
Rated current: 16A
Screw: M2.5 Steel Zinc Plated or stainless stell
Temperature: - 30 to + 120 degrees celsius
Torque: 0.5Nm (3.6lb.in)
Contact resistance: 20m
Insulation resistance: 5000m/1000V
Withstanding voltage: AC1500V/1Min

Packaged, includes:

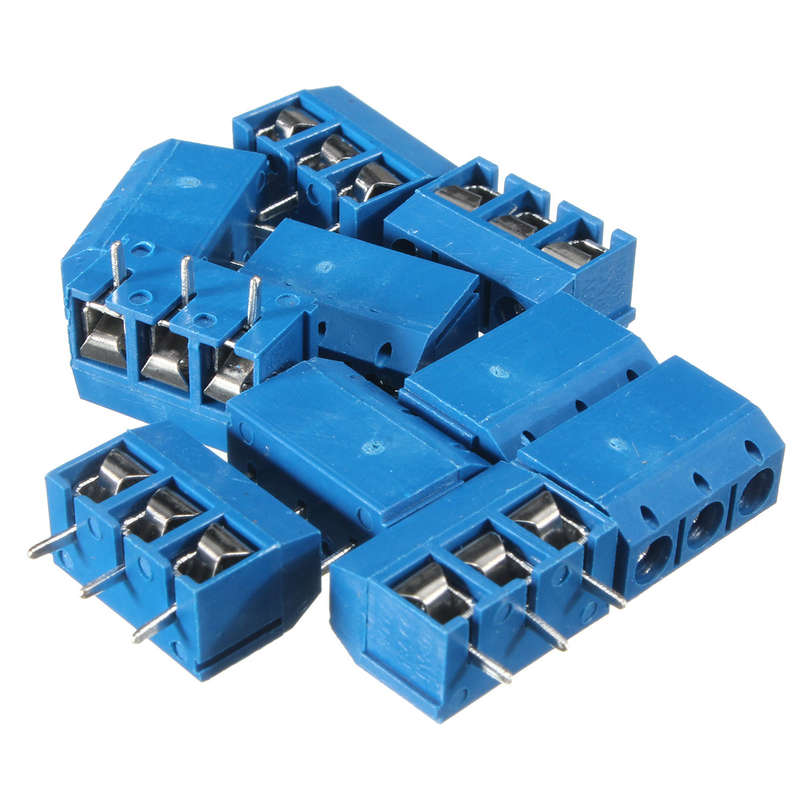

10 x 3 pin terminal connector










, , , ,
